Identificador: 4
Abierta
Descripción

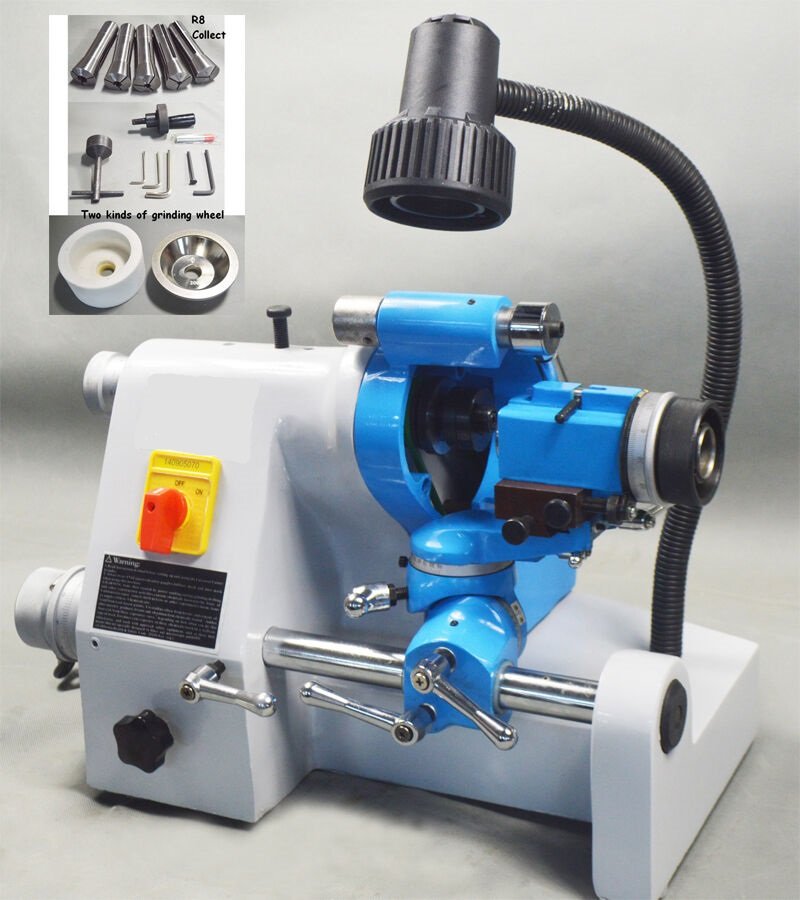

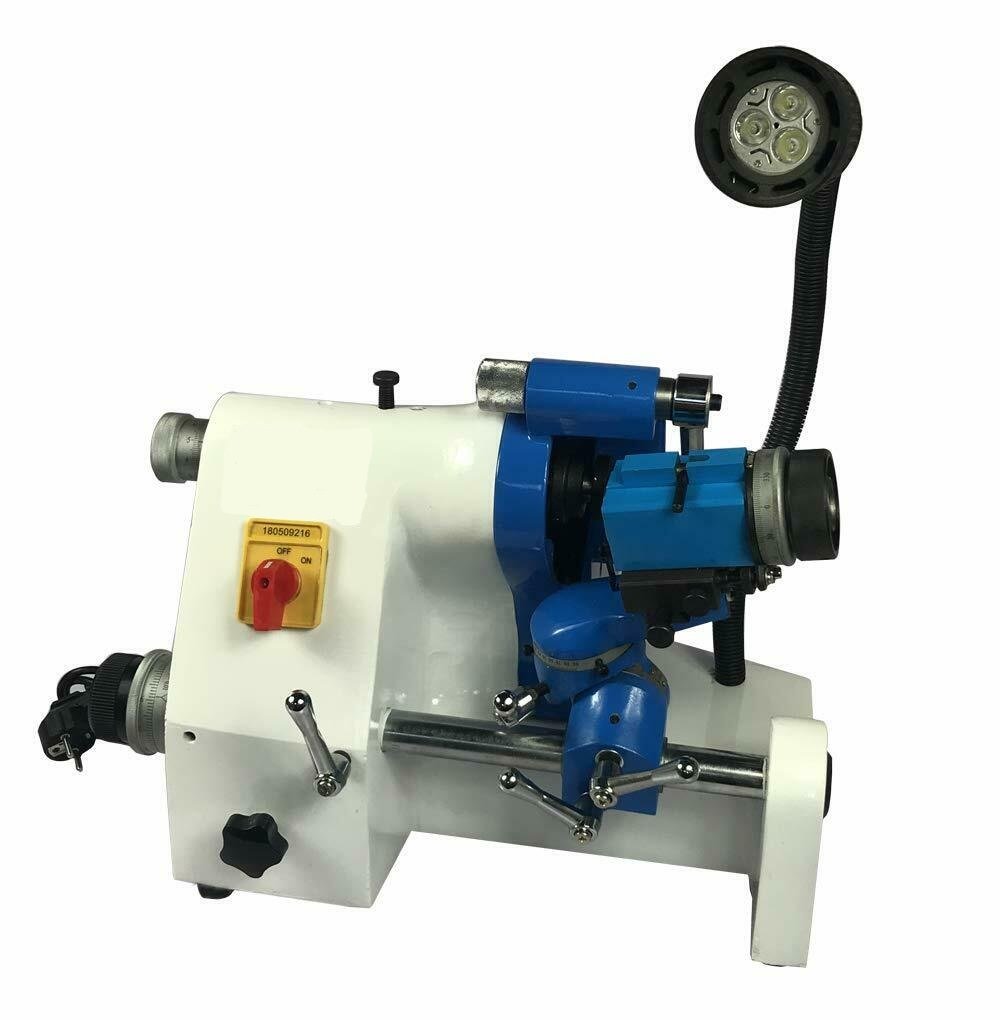

PARTE: 2EB-SF-U3R8 - AFILADOR DE BROCAS Y CORTADORES RECTOS UNIVERSAL
Maquina ara afilado para diferentes tipos de cortadores, brocas, para metal, madera, etc
Videos de la maquina: Video 1
Características:
1. Concise and easy, and grind out in a straight line.
2. Strength increase, increase the service life of blade and processing capacity.
3. High grinding accuracy, easy to install, aesthetically pleasing, novel structure, flexible the rotating parts, low noise, small vibration, tool post part bearing, durable, wear-resisting,
4. All kinds of diameters, shapes, Angles of the carving knife according to the proportion of engraving corresponding grinding.
PARAMETERS:

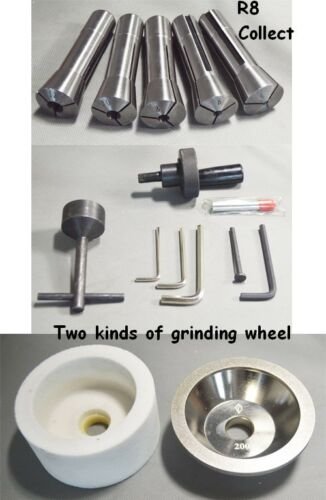

5 types R8 Collects | 0.15''=4mm, 0.2''=6mm, 0.3''=8mm, 0.4''=10mm, 0.5''=12mm. |
Grinding Dia. | ф0-100mm(0-3.94") |
Motor | 110V, 60 HZ, 1/3 HP, 2,800 RPM |
Taper Angle | 0°-180° |
Relief Angle | 0°-45° |
Negative Angle | 0°-26° |
Grinding Spindle | 5200r.p.m. |
Cup grinding wheel | 100x50x20mm(3.9*2.0*0.8") |
Net Weight | 99LB (45kg) |
Packing dim. | 55x65x47cm (21.7*25.6*18.5") |
Manufacturer/seller reserves the right to change any specifications without notice.
