Identificador: 425
Abierta
Descripción

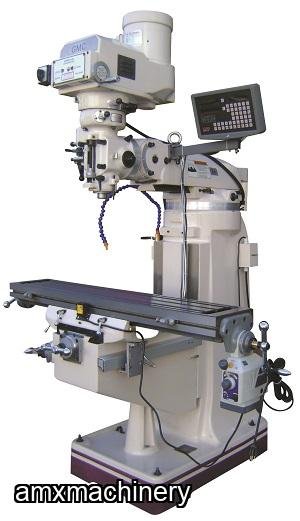

PARTE # 2MA-949VPKG - CENTRO DE MAQUINADO
NUEVO CON GARANTIA
Standard Features:
- Taiwan Mill
- “Meehanite” Casting
- “Turcite B” Coating on X/Y ways
- ISO 9001 certified
- Coolant system included
- GMM-949V has variable spindle speeds from 70-4,300 rpm
- Heavy duty 3 HP AC spindle motor, 3 phase ( for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter for single phase conversion )
- Heavy Duty “Meehanite” casting
- Hardened & ground dovetail guideways
- Hand scraped precision ways
- Hardened & ground table and ground table T-slots
- Precision ground ACME Leadscrews
- Chromed ground quill ( spindle )
- Chromed dials
- Adjustable ways
- Hand brake on mill head
- Tilting & rotating head
- Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
- One shot lube system
- front and rear rubber chip guards
- (1) manual draw bar
- Tool box with tools
- Power source 220V , 3 phase
- One year industrial warranty for parts
Manual Knee Type Mills Specifications:
Specifications | GMM-949VPKGGMM-949V |
Table SizeTable Load Capacity | 9” x 49” 650 LBS |
X Axis TravelX travel with power feed Y Axis Travel Z Axis Travel | 35-1/2”31-1/2” 12” 17” |
Spindle Taper Type | R 8 |
AC Spindle Motor , | 3 HP |
Spindle speeds | 70-4,300 rpmVariable speeds |
Quill ( Spindle ) diameter | 3-3/8” |
Quill ( Spindle ) travel | 5” |
Ram travel | 12” |
Table T-slot size | 5/8” x 3 slots |
Head Swivel, R/H , L/H | 90 degree |
Net weight, LBS | 2,650 LBS |
Standard Equipment
- OEM DRO, 2 axis, installed for GMM-949VPKG only
- Table power feed X, installed for GMM-949VPKG only
- Way covers
- One draw bar
- One shot lube
- Tool box
Optional Equipment for Manual Knee Type Mills # GMM-949V
- DRO, NEWALL C80 # NW-949-2, 2 axis, free installation
- DRO, NEWALL C80,# NW-949-3, 3axis, 3rd on quill or columnfree installation
- DRO, SINO, # SINO-2, 2 axis , free installation
- DRO , SINO, # SINO-3, 3 axis , free installation
- Power air draw bar, High Quality( USA)# HQR8
- Coolant system
- Base coolant/chip drop pan# COOL-PAN
- Power feed # FP-180X, Taiwan ALIGN, x axis , free install
- Power feed # FP-180Y, Taiwan ALIGN, y axis, free install
- Power feed # FP-180Z, Taiwan ALIGN, Z axis, free install
- Halogen work light
- 6” vise, part# 900-0021
- 52 pcs clamping kit # # 900-0001, ½”-13NC stud, 5/8” T-slot
- 11 pcs R8 collets set # 900-0007, 1/8” – 7/8”
- Phase converter # PAM-300HD, USA, for single phase conversion
- Mill package # 3, incl 6” vise # 900-0021, collet set # 900-0007,
- Clamping Kit# 900-0001, 20pc Titanium end mill set # 8000-0020,
- 29pc Titanium drill bit set # 5000-0001T
