Descripción

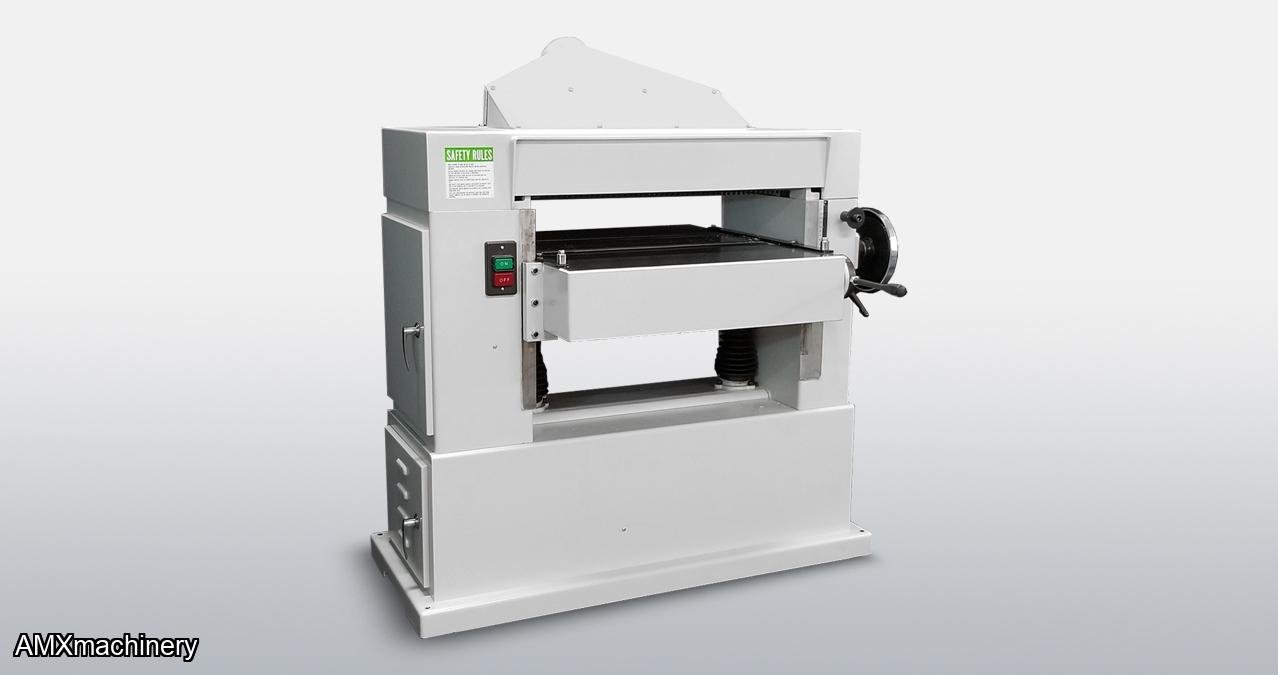

PARTE: 2CK-P24HV

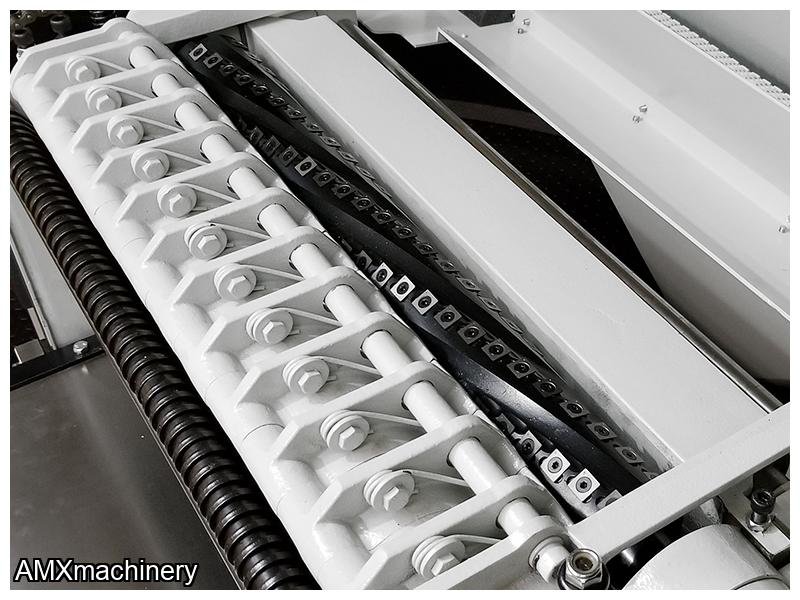

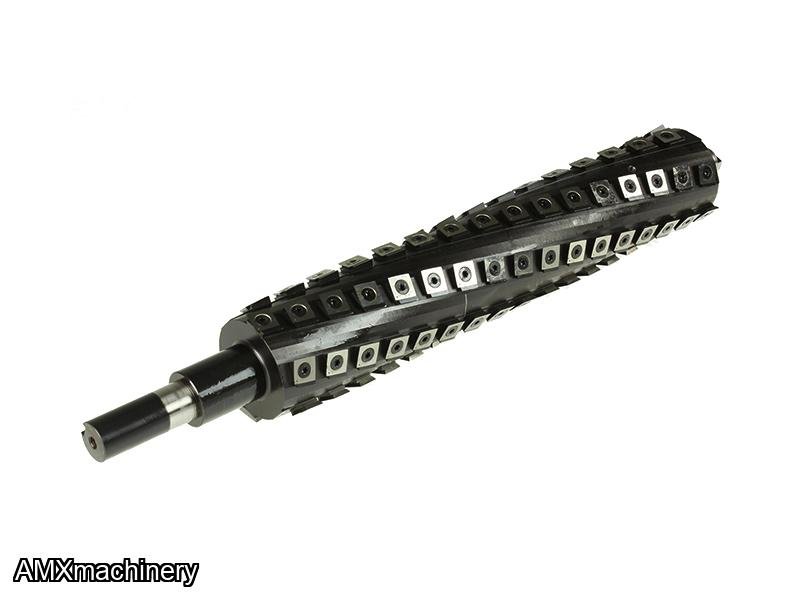

- Spiral Insert Knife Cutterhead with replaceable carbide insert knives for long life and smooth cutting action (132 inserts, 14mmx14mmx2mm)

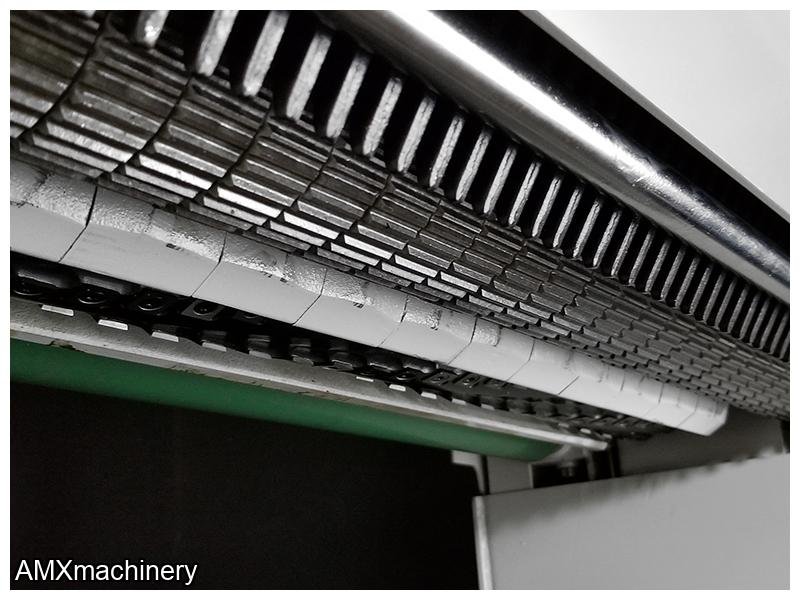

- Sectional chip breakers
- Serrated sectional infeed roll conforms to material which is not yet flat
- Anti-kickback fingers for safe operation
KEY ADVANTAGES
- 2-feed speeds
- Double bed rolls which are conveniently adjusted from the front of the machine to assist with planing difficult to feed material

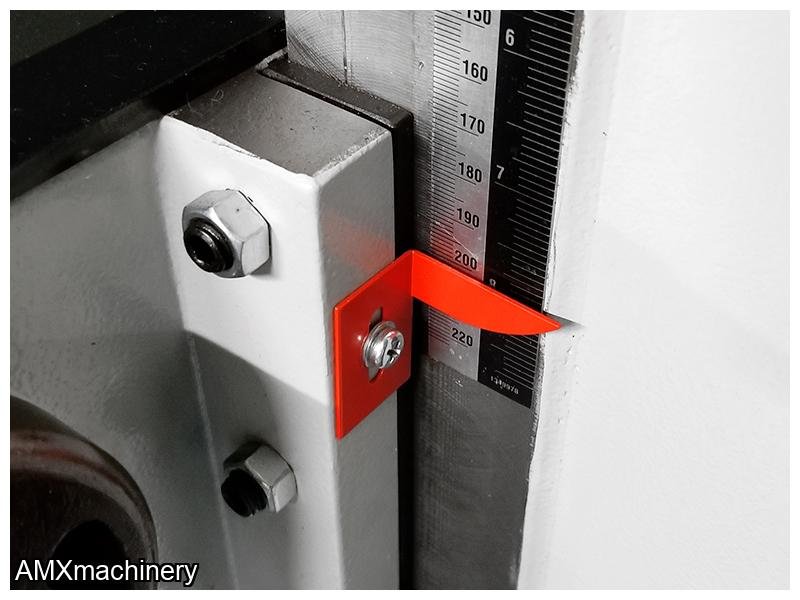

- Side handwheel with linear scale for table adjustment
- Polyurethane outfeed roll which will not mark your material after it has been planed
- Flip open top lid with limit switch for safe & convenient changing of the insert knives
|
Maximum planing width |
24″ |
|
Maximum planing thickness |
8″ |
|
Feed speeds (2) |
20 & 30 FPM |
|
Main motor |
7.5 HP |
|
Cutterhead diameter |
3-1/16″ |
|
Min. length |
8″ |
|
Table rise & fall |
Manual |
|

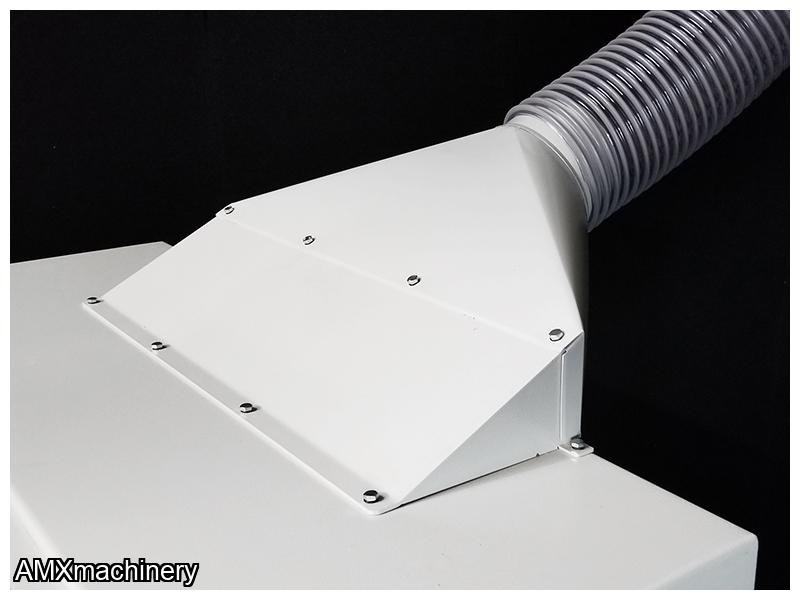

Dust port (1) |
6” |
|
Net weight |
950 lbs. |
|
Machine dimensions (LxWxH) |
48” x 36” x 50” |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
ESCOPLO
PARTE: 2CK-PCM120Power stroke of head permits easy, fast and accurate successive cuts.Separate fan blower to keep work clean and free from dust and chips.Manual adjustable table height and lateral positionHeavy duty cast iron construction.Convenient centralized control panelFoot pedal actuated cycle.Pneumatic workpiece clamping by lever
Chisel range
1/4″~3/4″
Motor
2HP
Spindle speed
3400 RPM
...
AMXmachinery1
SIERRA MULTIPLE - 100 HP
PARTE: 2CK-MRS155FEATURESExtra Robust 100 HP motorGreat Cutting Thickness of 155mm (6.1″)Continuous duty 100 HP arbor motor allows deep cutting speeds of thick lumberMRS-155 has a massive cast iron base, composing the majority of total machine weight of 2700kg. This design provides incredible absorption characteristics under deep cutting, especially while performing thick lumber ripping with a multi-blade set upPrecision chain and rails (dip chain) system facilitates accurate cutting operation...
AMXmachinery1
ARMADORA DE CAJONES
ARMADORA DE CAJONES PARTE: 2CK-JEN60Is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides. The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching. With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.High production capacity of up to 220 drawers machin...
AMXmachinery1
PARTE: 2TA-GS-12RO2 - ENGOMADORA 2 LADOS – CAPACIDAD ANCHO 12”
PARTE: 2TA-GS-12RO2 - ENGOMADORA 2 LADOS – CAPACIDAD ANCHO 12”
Nueva con garantíaRoller coaster type efficiently & effectively apply glues with a minimum of setup and easily maintained.Set of three rolls (one doctor roller) for top-only or four rollers (two doctor roller) for top and bottom glue application.We designed our glue spreaders with high quality grooved rubber glue rollers with hardened rubber doctor rolls for durability usage.Stainless drip pan catches the over spread glue for...
