Descripción

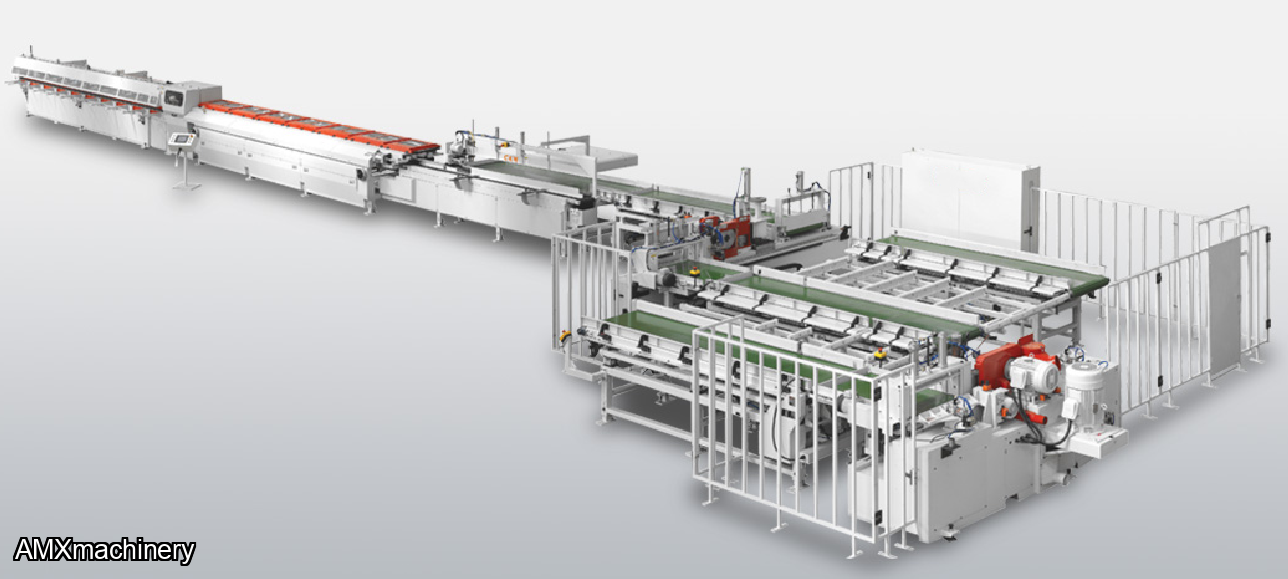

FINGER JOINT AUTOMATICA CON MESA LARGA PARTE: 2CK-FL03-03
Represents a state-of-the-art finger jointing production line, meticulously engineered to transform short and long wood scraps into valuable resources with exceptional cost-efficiency. This comprehensive jointing system elevates productivity to high speeds and offers user-friendly operation, allowing customers to optimize output and generate profits. With its groundbreaking technology, this solution delivers remarkable value in terms of both its performance and affordability, ensuring it remains a consistent game-changer within the wood industry.
- Fully automatic production line
- Ideal for both long (10ft) and short (6”) pieces of wood
- Only one operator is required for maximum production
- Standard: PVAc glue – Tooling for PU, MUF, EPI, etc. glues available upon request
- Length of cut is calculated by an encoder and set on a touch screen for increased accuracy

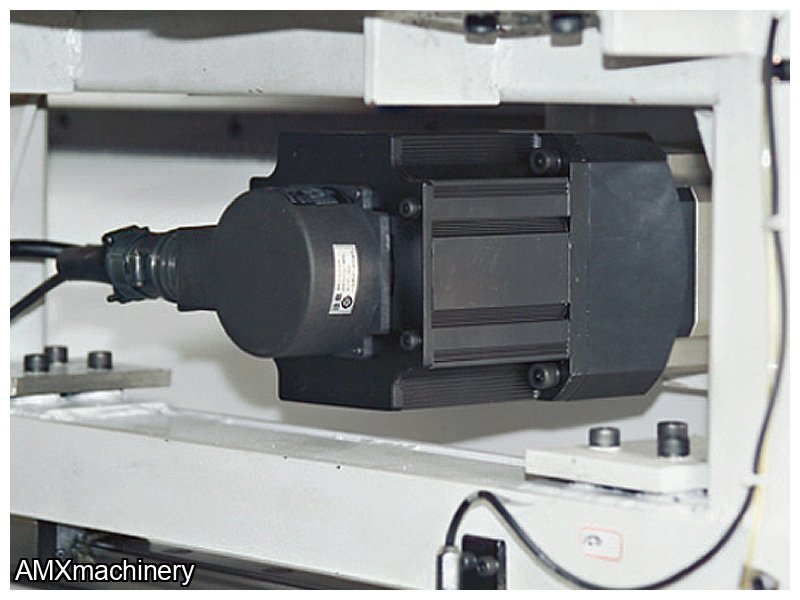

- Servo motor capable of providing a production rate of up to 1~3 cycles/min
- The initial F-I03 and F-I15 conveyor tables raise using air cylinders to allow workpieces to move from the infeed through the finger shapers
- The F-C05SE and F-C06SE finger shapers perform automatic scoring, trimming, shaping, and gluing

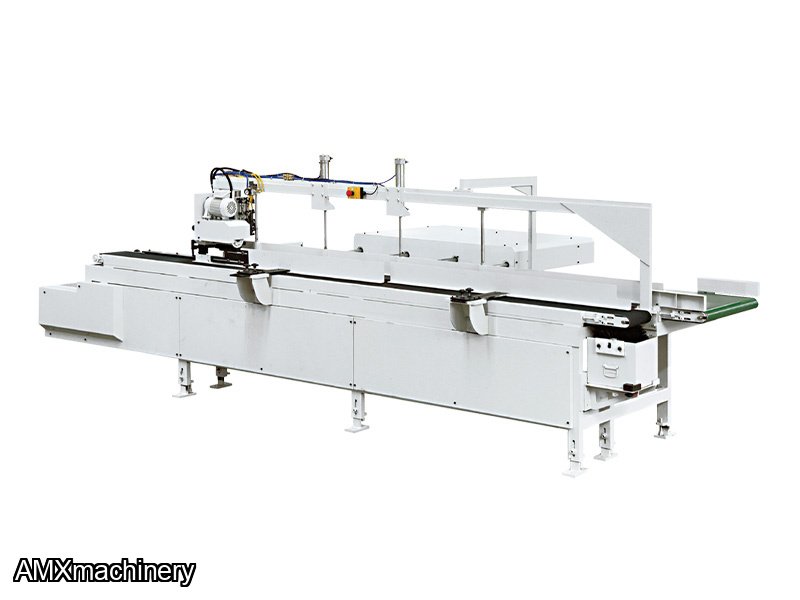

- Workpieces are fed from the F-I07 conveyor table to the F-D01-3 automatic feeding table, turning over each workpiece one-by-one using a steel brush roller

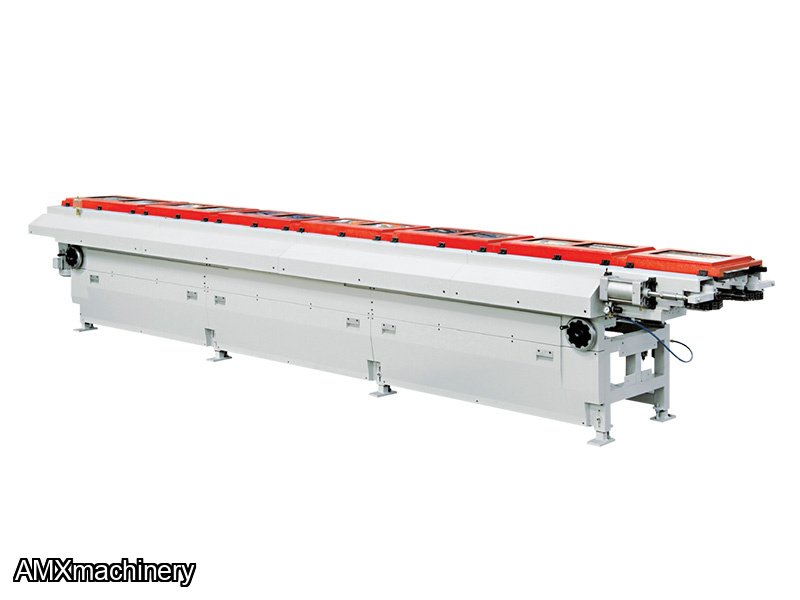

- With the choice of 10 feet or 20 feet in length the F-T03/F-T05 chain-type pre-press ensures accurate vertical and horizontal alignment before the workpiece is cut to length

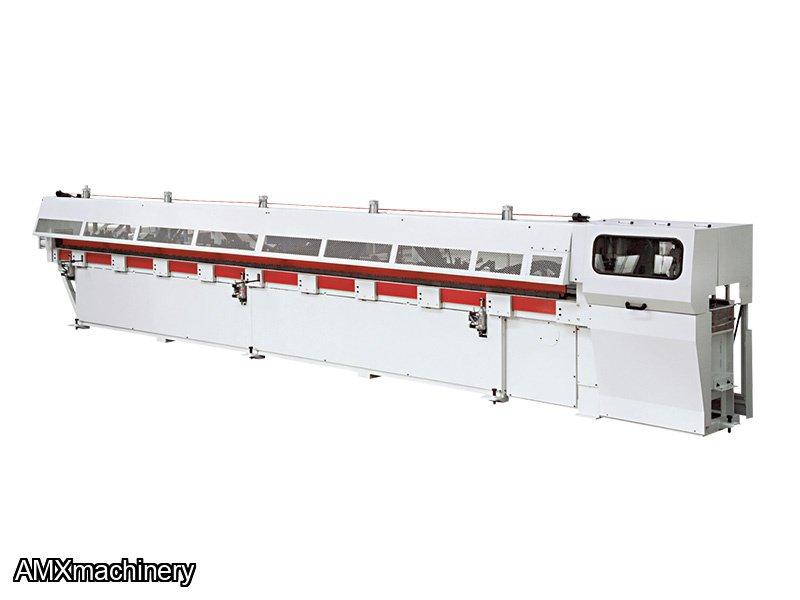

- Synchronized jointing and cutting is performed in a 2-step process within the F-A03 assembly press by employing two hydraulic cylinders at the front and rear to provide an extremely consistent joint
The FL03-3 Fully Automatic Finger Jointer includes:

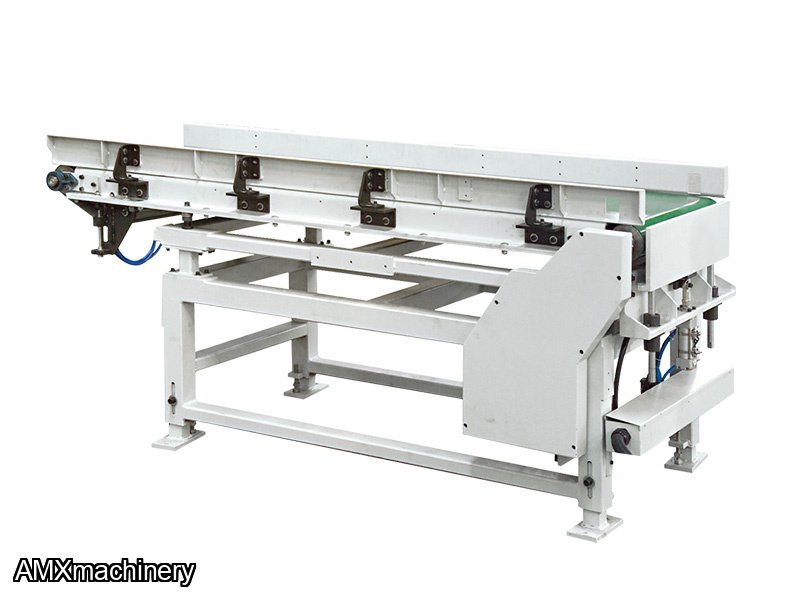

F-I03 Initial Up and Down Conveyor Table
DESCRIPTION | SPECIFICATION |
Length | 3000 mm (118”) |
Width | 650 mm (25.6”) |
POWER REQUIRED | |
Conveyor table motor | 1 HP |

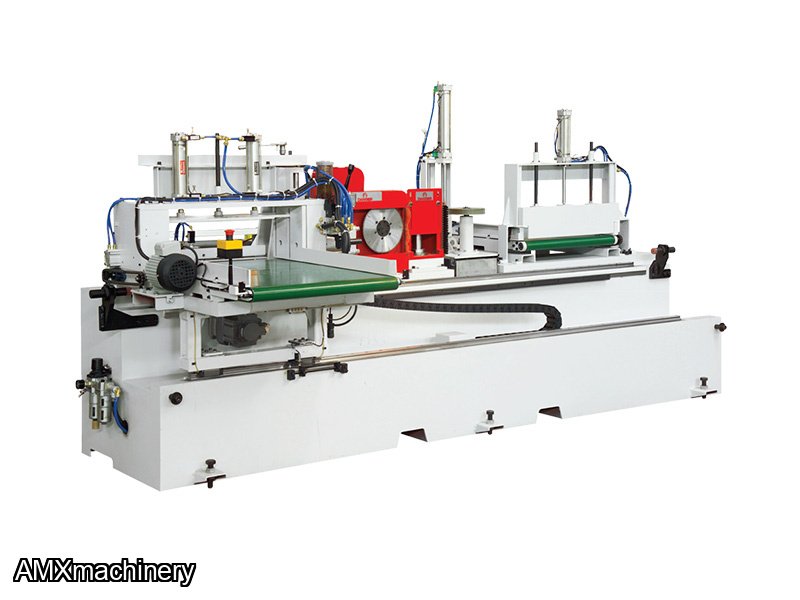

F-C05SE Automatic Finger Shaper
DESCRIPTION | SPECIFICATION |
Table size | 650 mm (25.6”) |
Length | 150~1000 mm (5.9~39.4”) |
Width | 20~60 mm (0.78~2.4”)(Placing horizontal: 160 mm (6.3”)) |
Thickness | 20~160 mm (0.78~6.3”) |
POWER REQUIRED | |
Main spindle | 30 HP |
Scoring saw motor (Bottom) | 15 HP |
Trim saw motor | 15 HP |
Feeding out table | 1 HP |
Working table movement | 1 KW |
- 1: Finger cutters – 10 pieces (160x70x4mm x 2T)
- 2: Comes with saw blades

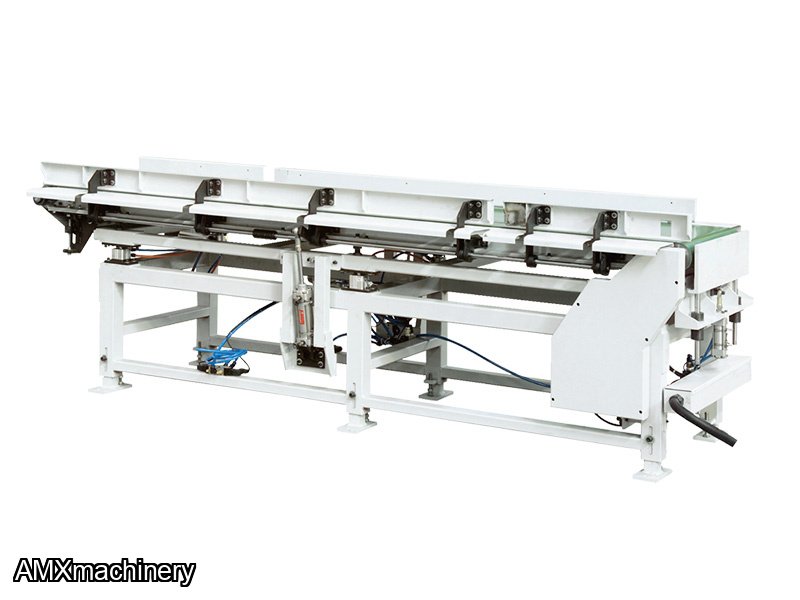

F-I15 Initial Up and Down Conveyor Table
