ID: 774
Open
Description

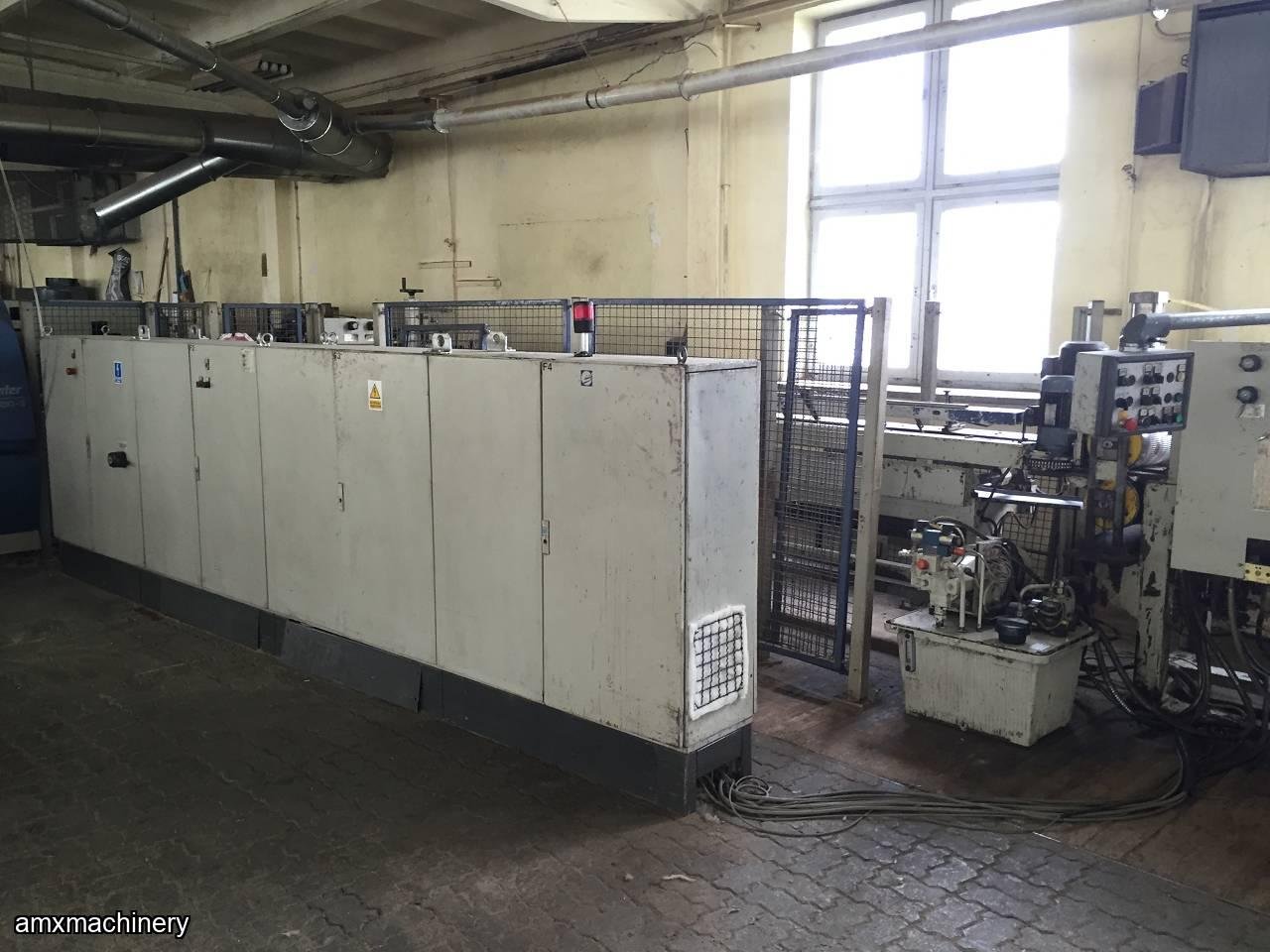

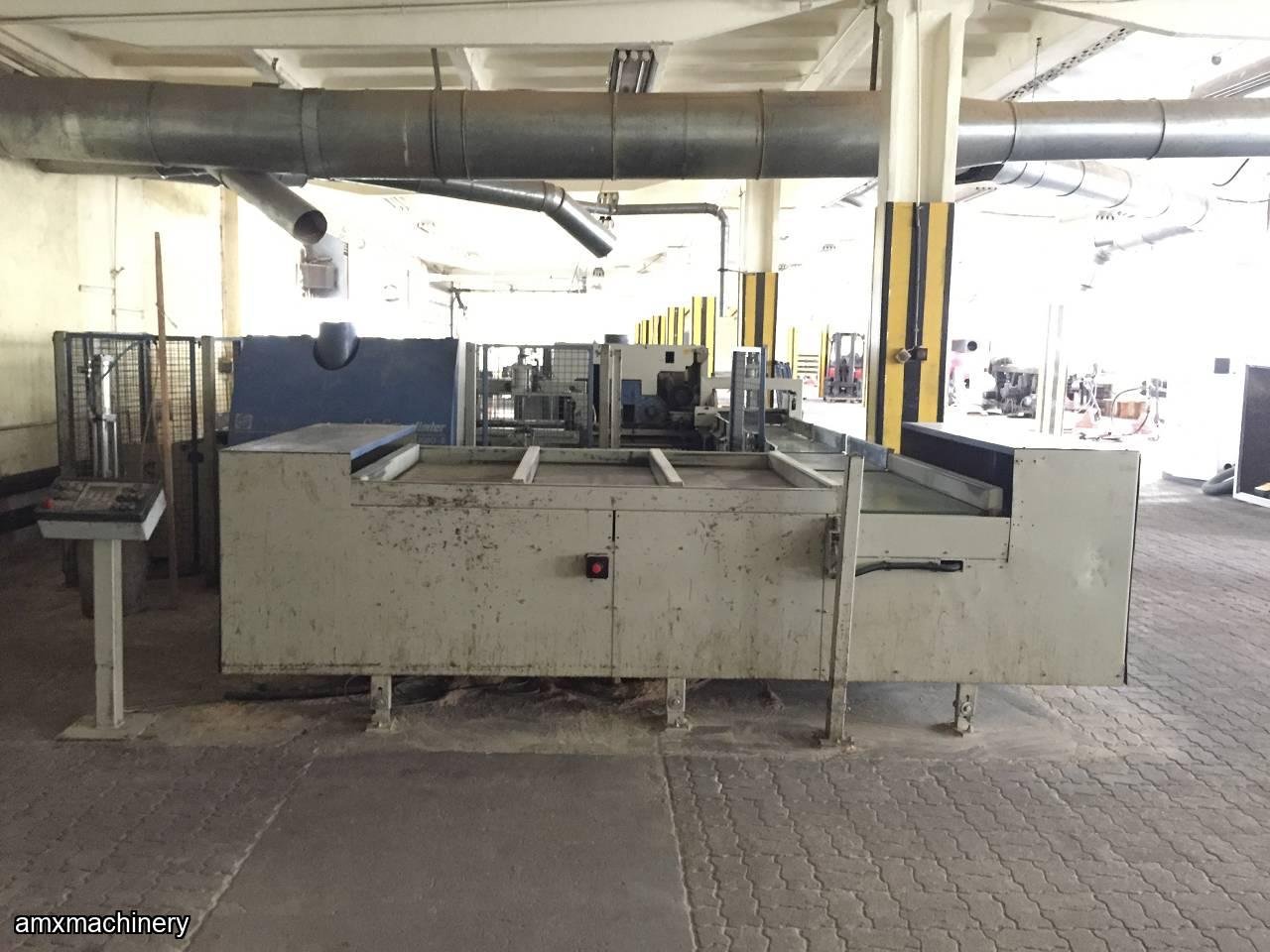

PARTE # 11770 – SISTEMA FINGER JOINT – GRECON TURBO
En buenas condiciones de operación
Manufactura: 2000
Technical design
Package system
Horizontal joint
Vertical joint
Number of milling units: 2
Workpiece width max mm: 205
Workpiece thickness max mm: 80
Infeed length max mm: 1.000
Infeed length min mm: 150
Package width mm: 600
Pressing length mm: 6.100
Total pressure kg: 12.000
Capacity m/ shift: 16.000
Capacity of router cycles/min: 6,5
Transfer capacity parts/min: 120
Capacity of press cycles/min: 7
Loading via belt conveyor with boxes
Milling machine: 2 single milling machines
Scoring aggregate: 4
Milling feed
Mobile table, fix aggregates
Gluing with profile nozzles
Conveyor/ separator
fully automatic
Press
End press
2 press channels
Press length separable
