PARTE: 2CK-C431
Is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
- Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position.
- Small footprint

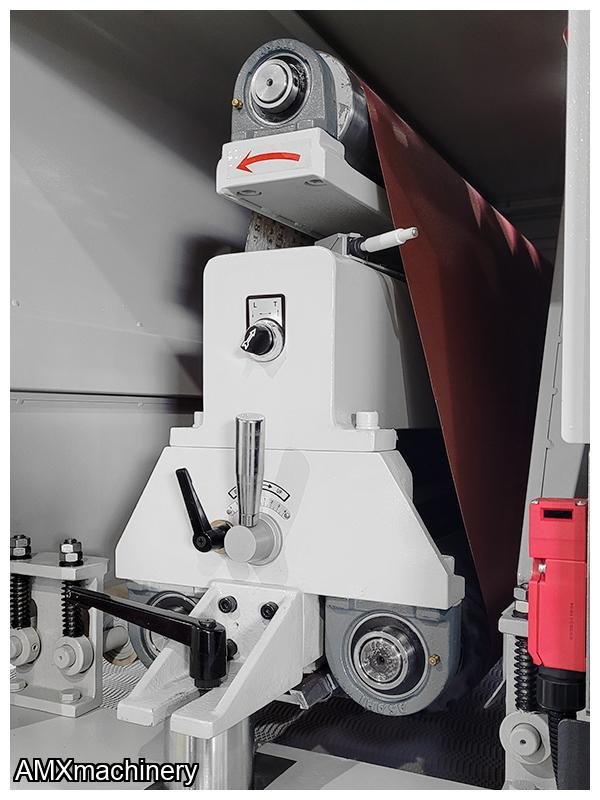

- Combination sanding unit with 5” rubber contact drum and 2.6” wide adjustable sanding platen for a wide range of sanding applications.
KEY FEATURES
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.
- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
- Double infeed and outfeed pressure rolls for superior part hold down
- Four table raising jack screws
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors.
|
|
Inch |
Metric |
|
Abrasive belt size |
44” x 60” |
1117 x 1524 mm |
|
Main motor |
20 HP |
|
|
Feed motor |
2HP |
|
|
Table rise/fall motor |
½ HP |
|
|
Maximum width stock |
43” |
1092 mm |
|
Minimum part length |
16” |
400 mm |
|
Maximum thickness opening |
5.9” |
150 mm |
|
Feed speed: variable |
13 to 52 FPM |
4 to 16 m/min |
|
Passline height |
33”- 38” |
838 – 965 mm |
|
Infeed table |
11 ½” |
292 mm |
|
Dust outlet |
2 @ 4” |
2 @ 100 mm |
|
Compressed air usage |
2 CFM @ 90 PSI |
2 CFM @ 90 PSI |
|
New weight |
3344 lbs |
1520 kgs |
|
Machine dimensions |
70” x 72” x 71 ¼” |
1780 x 1820 x 1810mm |
|
Shipping weight |
3652 lbs |
1660 kgs |
|
Shipping dimensions |
73” x 77” x 82” |
1854 x 1950 x 2080mm |
