Descripción
PARTE: 2CK-OES512D

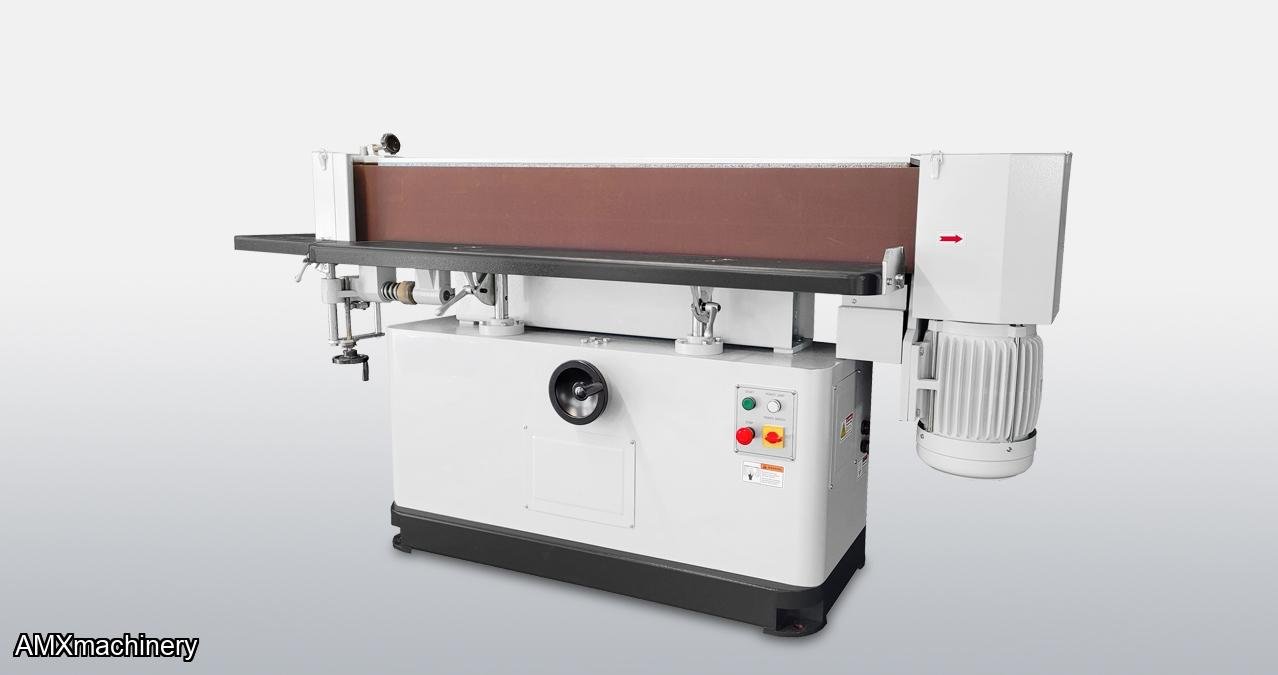

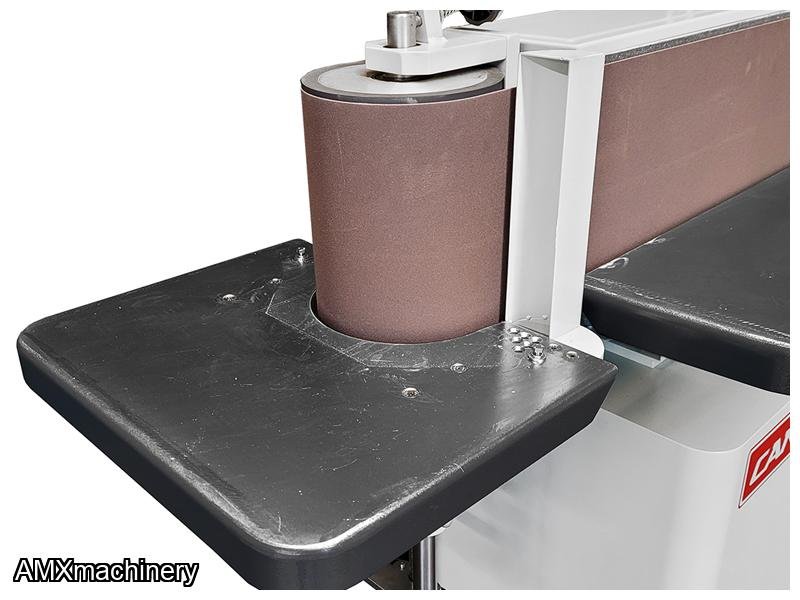

Is the ideal edge sander for demanding applications for production use. Equipped with a 12” high oscillating sanding belt, it is ideal for sanding drawer boxes, doors, furniture components and more. The OES512D is also equipped with dual front and rear tables which are adjustable up & down and can be tilted to 45 degrees, allowing for a wide range of applications and full utilization of the sanding belt. The dual tables also allow for two operators to be working on the machine at the same time made possible by the powerful 10 HP sanding motor. The adjustable and tiltable end table allows for sanding of curved components on the idle pulley. The belt oscillates up and down which helps in keeping it cool while also producing an optimum sanded finish.
- Heavy-duty design with powerful 10HP driving motor offers high efficiency in production environments

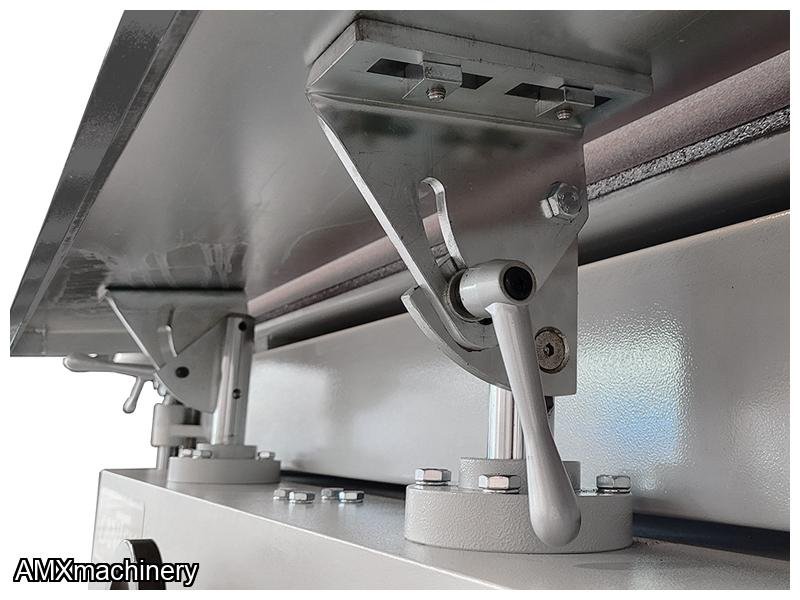

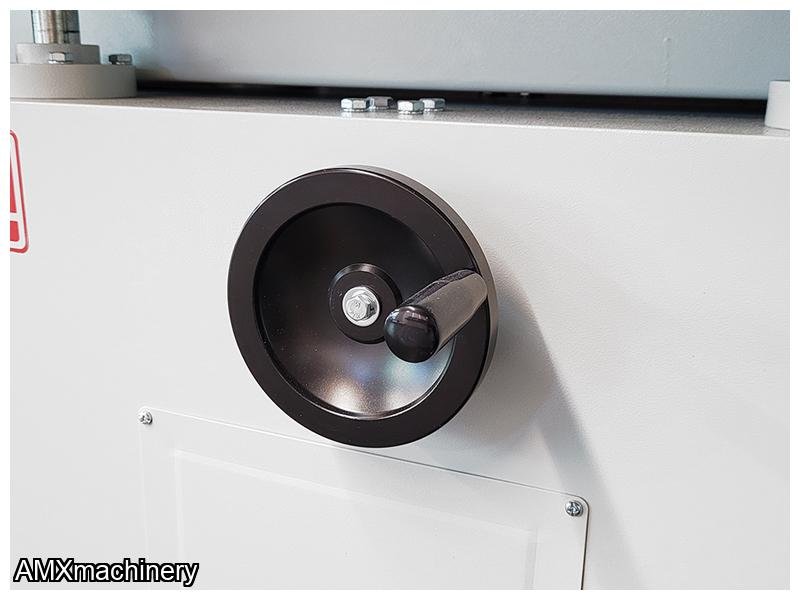

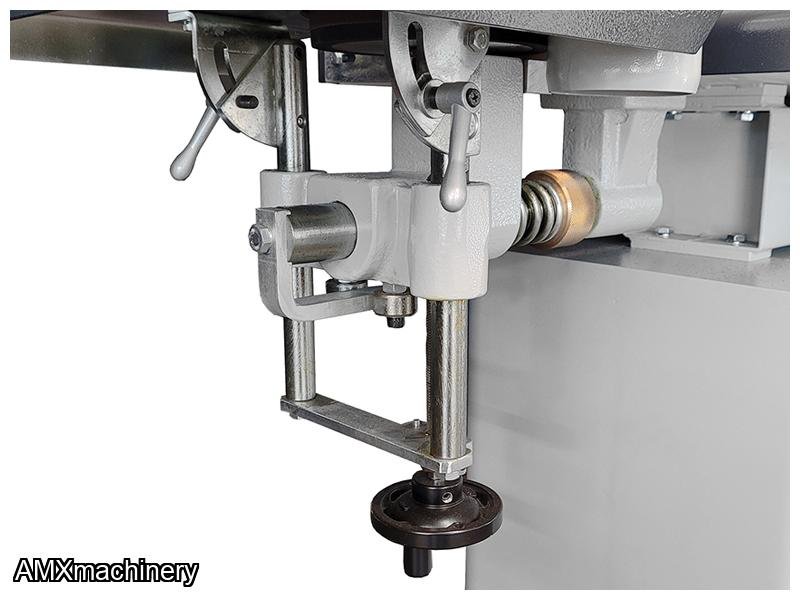

- Front, back and side tables are adjustable in height by handwheel and can be tilted for bevel sanding operations
- Oscillating sanding belt for optimum sanding results

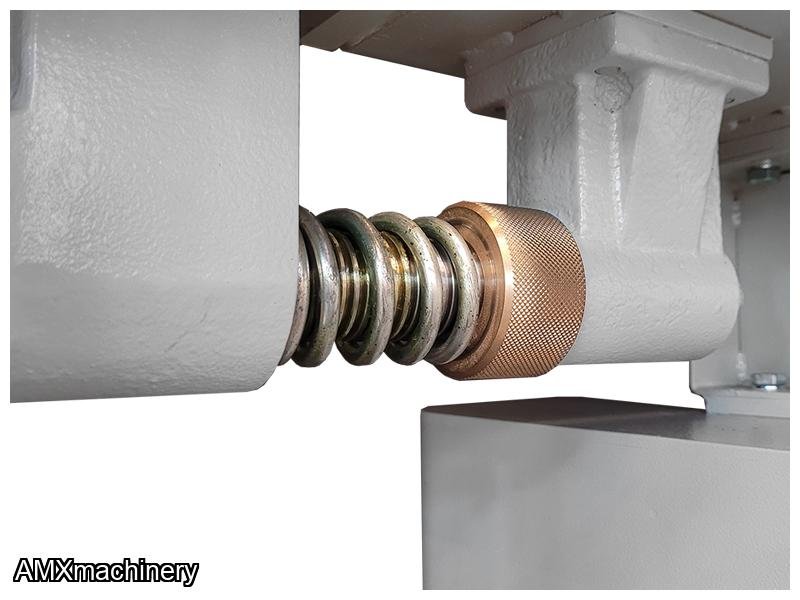

- Quick belt change with adjustable belt tension

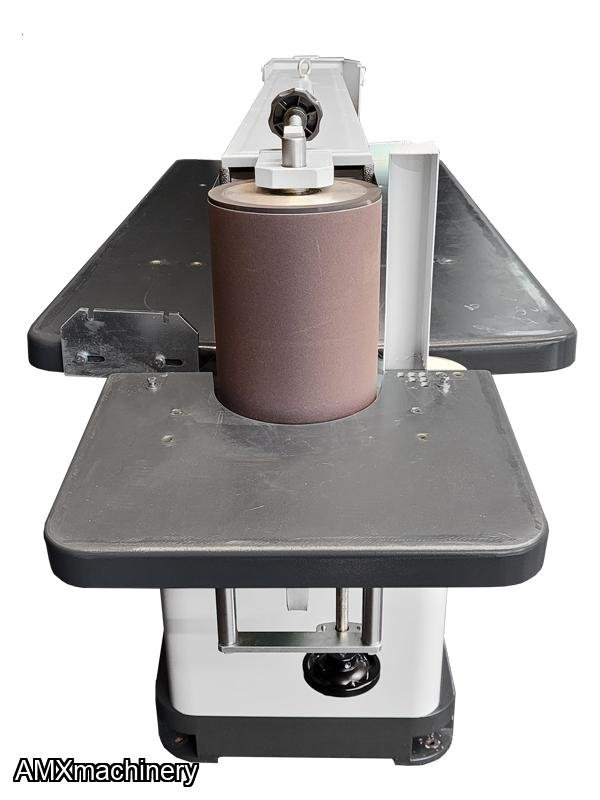

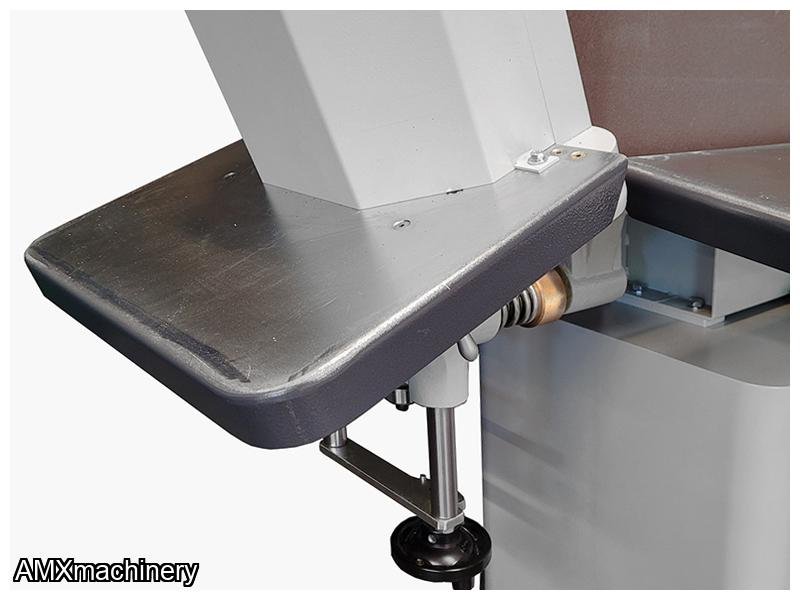

- Side table can be used for sanding the curve style work pieces.
KEY ADVANTAGES
- Built of heavy welded plate steel for rugged base construction and vibration free sanding

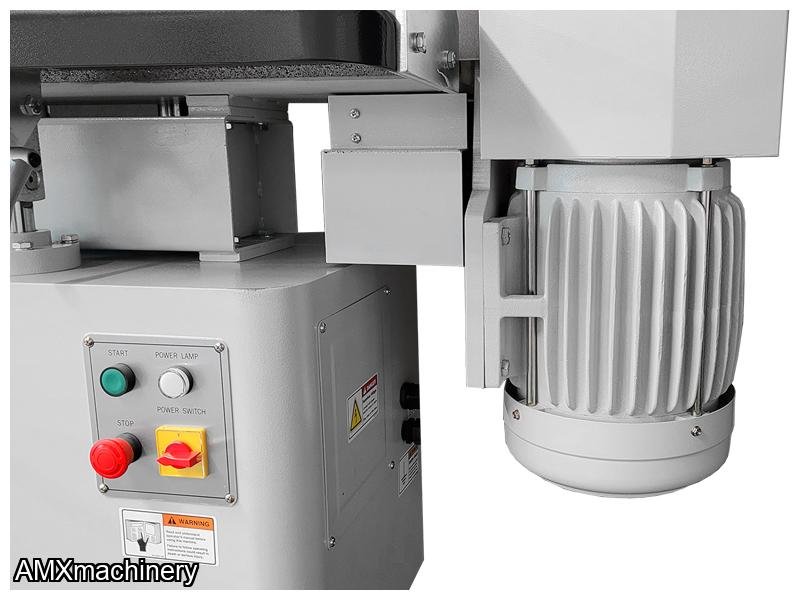

- Belt oscillation by gear reducer

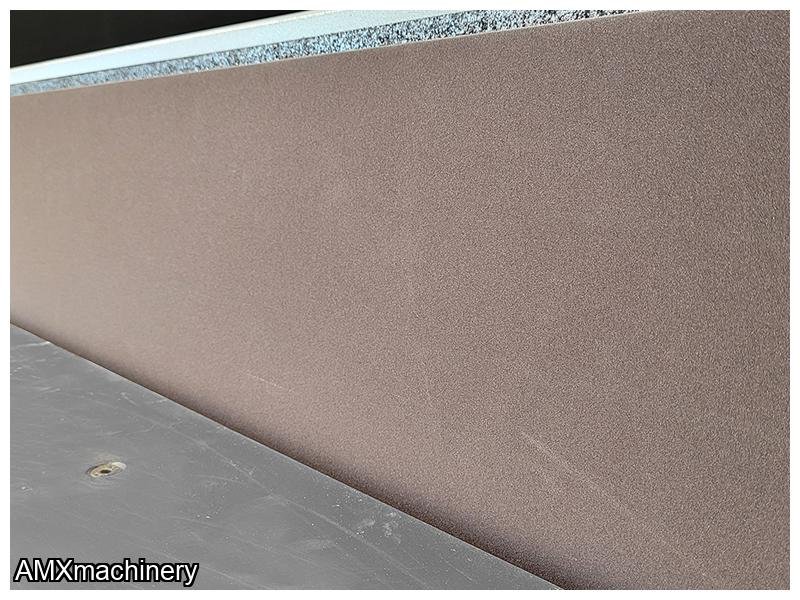

- 12” x 166” sanding belt
- Front and rear sanding platens are covered with anti-friction graphite cloth
|
|
INCH |
METRIC |
|
Sanding motor |
10 HP |
|
|
Oscillating stroke |
0.472″ |
12mm |
|
Sanding belt size |
12″ x 166″ |
|
|
Sanding belt speed |
970 MPM |
|
|
Worktable dimension: front |
10.43″ x 60.9″ |
265x1545mm |
|
Worktable dimension: rear |
10.43″ x 60.9″ |
265x1545mm |
|
Worktable dimension: side |
13.8″ x 17.7″ |
350x450mm |
|
Front table tilt |
45o |
|
|
Side table tilt |
45o |
|
|

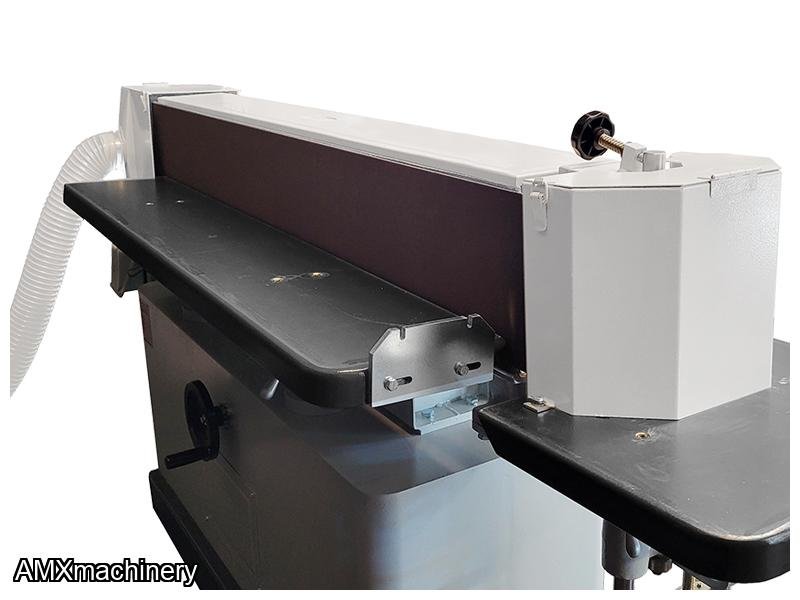

Dust port |
(2) 4″ |
(2) 100mm |
|
Machine measurement |
90.55″ x 30.7″ x 48″ |
2300x780x1220mm |
|
Machine weight |
1155 lbs. |
525 kgs |
