Identificador: 617
Abierta
.jpg)
Descripción

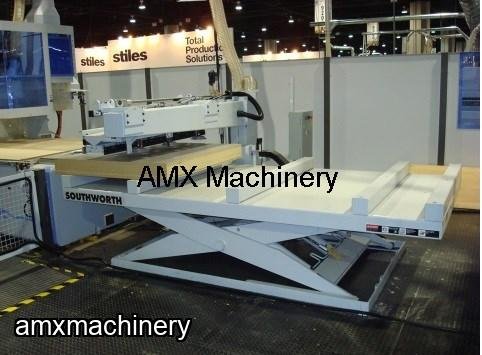

PARTE: 2SW-LS4-36 - MESA DE TIJERA - PLATAFORMA 36" X 72"
Nuevas con garantía
Hechas en USA

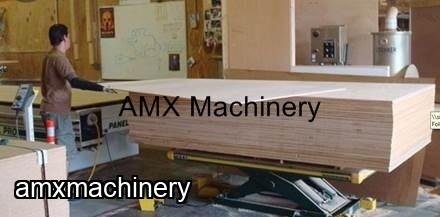

Medidas y capacidad para manejar 1 bulto de MDF, Aglomerado, etc. a la vez para alimentar maquinaria para la madera,
CAPACITY: 4,000 lb. uniform load.
PLATFORM: 36" x 72" smooth plate with 4" Fork Risers.
BASE FRAME: 24" x 48" with lag plates and maintenance device.
LOWERED HEIGHT: 6-3/4"
VERTICAL TRAVEL: 36"
RAISED HEIGHT: 42-3/4"
ELEVATING TIME: 44 seconds (approx.)
LOWERING TIME: Adjustable with pressure compensated flow control.
POWER UNIT: Internally mounted with 1.0 HP TENV electric motor (includes a power cord, approx. 9' in length ) and .85 GPM hydraulic pump, valving, and reservoir filled with oil.
PRIMARY VOLTAGE: 115/1/60
CONTROL VOLTAGE: 115/1/60
CONTROL NEMA: 1 footswitch with safety cover. Includes 10 ft of straight cord.
ACTUATION: Two 3-1/2" low pressure cylinders with chrome plated rod, power up/gravity down.
BUSHINGS: All pivot points equipped with Teflon lined bushings. Leg rollers have Southworth exclusive wear indicators.
FINISH: Dark green self-priming machinery enamel with platform painted beige.
WARRANTY: Parts will be covered for two years upon receipt and approval of application information (see Southworth warranty for details).
WEIGHT: 900 lb. (approx.) - Freight class #70
