Identificador: 794
Abierta
Descripción

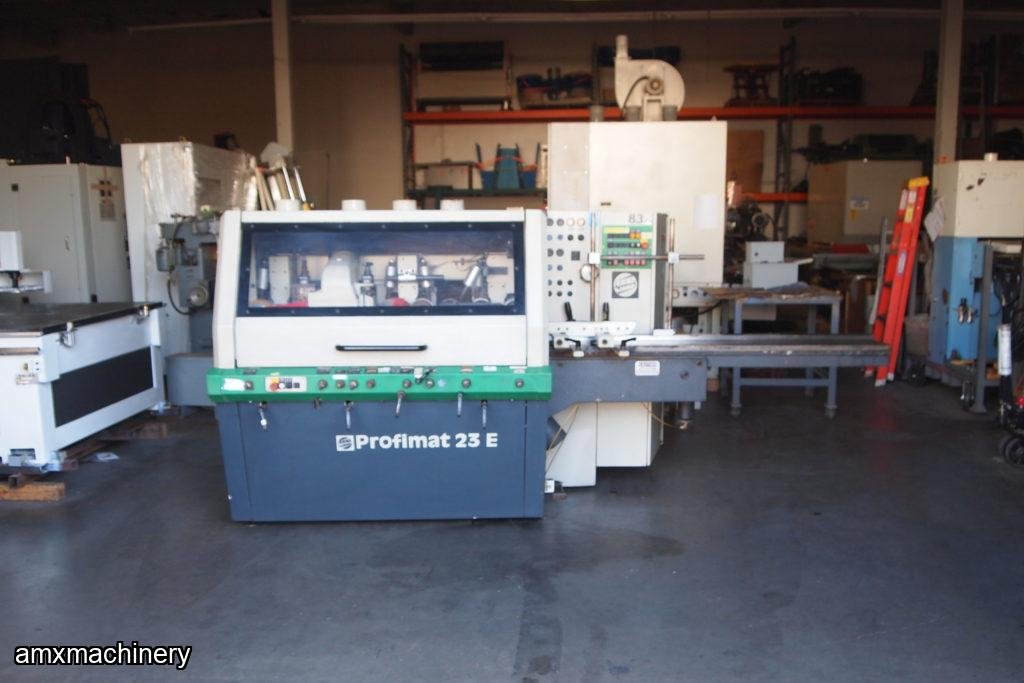

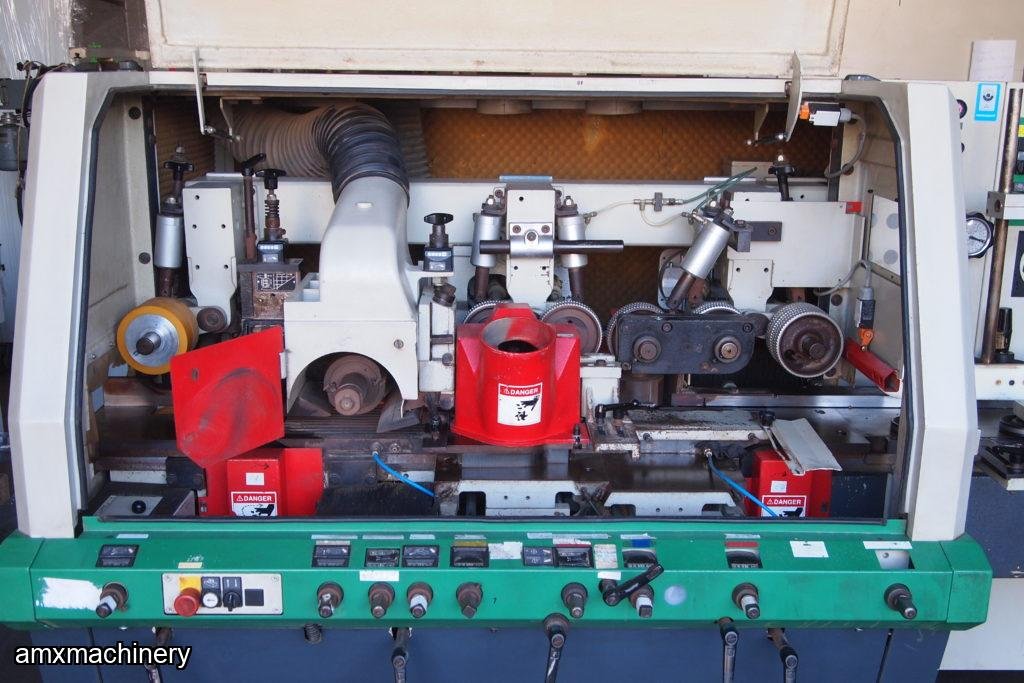

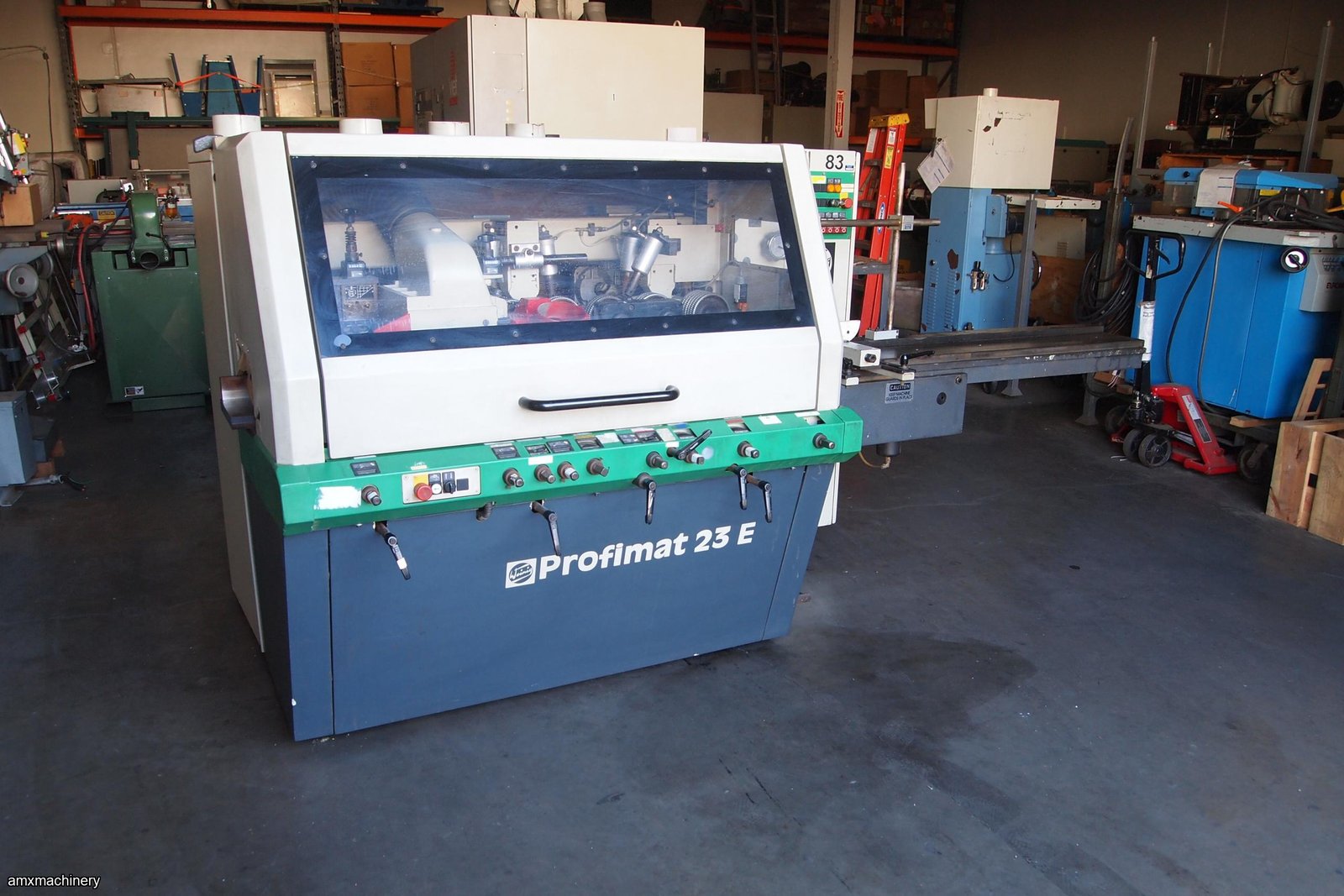

PARTE # 11987 – MOLDURADORA WEINIG 23 - 5 CABEZALES
5-Head
Manual setups
Central Lubrication System
Specifications
Head sequence: Bottom 7.5 KW (10hp), right & left by 11 KW(15hp) motor, top 11 KW (15 hp), bottom 7.5 KW (10hp)feed 5hp motor
1½” Spindles 6,000rpm Cutterhead
20-78 FPM Feed speed
9-1/16″ x 4-11/16″ cap
Dimensions: L 126″x W 77″x T 61″
5,500lb
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
ESCOPLO VERTICAL
PARTE # 1SIL-DC-MS3840 - ESCOPLO VERTICAL - MOTOR 1 HPNUEVO CON GARANTIAMotor1 H.P., 110V.,60Hz, MonofásicoCapacidad del cortador1/4” - 1”Zanco del cortador3/4”Desplazamiento del cabezal210 mm.Velocidad1720 rpm.Tamaño del buje del escoplo3/4”Capacidad del broquero3 - 16 mm.Mov. lateral de la mesa180 mm.Mov. transversal de la mesa100 mm.Dimensiones de la mesa450 x 150 mm.Altura máxima de la madera200 mm.Ancho máximo de la madera140 mm.Peso139 Kg.Tipo de empaque1 caja
AMXmachinery
REASERRADORA HORIZONTAL – 4 SIERRA BANDAS – CON REGRESADOR
PARTE:
3HP-HP-400-4 - REASERRADORA HORIZONTAL – 4 SIERRA BANDAS – CON REGRESADOR
Nueva con garantíaPara mas informacion, solicite una cotizacion detallada,1.With
Digital Readout2.Max.
Workpiece Size: 400mm(W) x 250mm(H)3.Conveyor
Belt Size: 385mm(W) x 14840mm(L)4.Saw
Wheel Dimension: Φ28" x 2"(Thickness)5.Saw
Blade Size: 208"(L) x 2"(W)6.Dust
Hood Diameter: 4" x 87.In-feed
Speed: 4-20M/min8.Cutting
Size: 4-250mm(T)9.Saw
Blade Tensioning by Hydraulic Compensation System10.Main
...
AMXmachinery
PARTE: 12212 - SIERRA CIRCULAR - 1 DISCO – DIEHL
PARTE: 12212 - SIERRA CIRCULAR - 1
DISCO – DIEHLUSADA - BUENAS CONDICIONESMOTOR PRINCIPAL: 15 HP, 230/460V, 3 FASES, 60 HZ
AMXmachinery
PARTE: 2AM-U-200 - ARMADORA DE MARCOS - MANUAL
PARTE:
2AM-U-200 - ARMADORA DE MARCOS - MANUALNUEVA CON GARANTIAThe U-200 is an entry-level frame assembly machine for any small retail operation. As a fully manual machine, it requires no compressed air or electrical power to operate. This unit allows the framer or graphic shop owner to bring the joining operation in-house for cost control and quick customer turn-a-around.The U-200 is compact, quite operation and has a small footprint. Our lightest and most portable joiner, it can be easily mo...
