ID: 1519
Open
Description

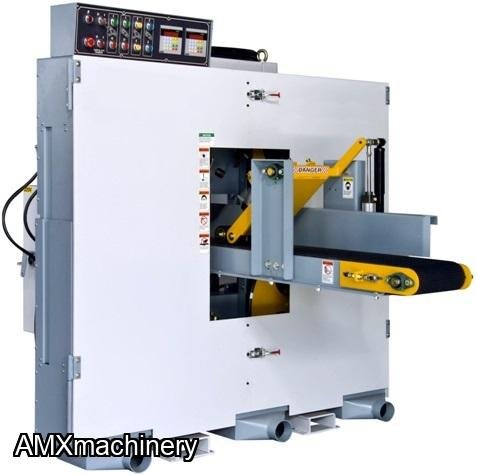

PART: 2CK-HR66-E - DUAL BAND TWIN BAND HORIZONTAL BAND RESAW
2 MOTORS 20 HP - 11.8” WIDE X 9.8” HEIGHT
NEW WITH WARRANTY
With 2′ digital readout control panel
Hydraulic blade tension
Saw wheel elevation is driven by motor
Conveyor is driven by hydraulic motor
|
Max. board/cant size |
11.8″
(W) x 9.8″ (T) |
|
Distance from upper blade to conveyor table |
.79″
– 6.7″ |
|
Distance from lower blade to conveyor table |
.47″
– 4.9″ |
|
Conveyor belt size |
11.2″
x 215.7″ |
|
Diameter of saw wheel |
28″ x 1″ wide |
|
Variable feed speed |
0
– 68 FPM |
|
Saw blade size |
168″ x 1″ x 2 pcs. |
|
Motor |
20 HP x 2 pcs. |
|
Gear box motor |
1/4 HP x 2 pcs. |
|
Dust hood |
4″ x 2 pcs. |
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Post Message
Sign in to ask the seller a question.
AMXmachinery
PARTE: 12346 – LIJADORA BANDA ANCHA – 4 LIJAS - SUPERIOR E INFERIOR – 52” ANCHO - COSTA
PARTE: 12346 – LIJADORA BANDA ANCHA – 4 LIJAS - SUPERIOR E INFERIOR – 52” ANCHO - COSTA
USADA - BUENAS CONDICIONES
La
máquina se retiró trabajando en buenas condicionesWidth
Capacity: 53"Sanding
Belt Size: 53" x 103"Machine
#1Bottom
Head #1: ~10" Diameter Grooved Steel Drum, 47 HP, 460vBottom
Head #2: ~10" Grooved Rubber-Covered Contact Drum, 47 HPBottom
Head #3: ~10" Grooved Rubber-Covered Contact Drum, 32 HPBottom
Head #4: Finishing Platen, 23 HPMachine
#2Top Head
#...
AMXmachinery
PARTE: 1SL- DC-WP20HD-75 – CEPILLO - USO RUDO - 20” ANCHO - MOTOR 7.5 HP
PARTE: 1SL- DC-WP20HD-75 – CEPILLO - USO RUDO - 20” ANCHO - MOTOR 7.5 HPNuevo con garantiaMotor: 7.5 H.P., 220 V., 60Hz, 3 fasesMáx. profundidad de corte: 1/8”Capacidad de corte: 20” x 8 1/2”Tamaño de la mesa: 20” x 28”Velocidad del cabezal: 5000 rpmVelocidad de alimentación: 20 y 30 pies/minCantidad de cuchillas: 4 piezasPeso de la máquina: 420 kg.Tipo de empaque: 1 caja
AMXmachinery
PARTE: 4RI-UNIX2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - UNIX 2200
PARTE:
4RI-UNIX2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - UNIX 2200
NUEVO CON GARANTIARiIesa
Unix 2200 Drilling machine $ 115,790 eurosTools
are not included, are to be purchased separatelyOur
flexible dowel drilling machine. – With a large range of special equipmentDescription:•
Drilling from 4 sides: top, right, left, back•
Capacity up to 14 pcs/min•
Set-up help using light beam•
Vertical magazine•
One-man operated Extra:•
Side movement•
Small millings•
...
AMXmachinery
PARTE: 1SL-DC-TS12 - SIERRA DE MESA 12" - MOTOR 3 HP
PARTE:
1SL-DC-TS12 - SIERRA DE MESA 12" - MOTOR 3 HPMOTOR: 3 HP, 110/220V, 60 Hz, 1 FASESMEDIDAS DE LA MESA CON EXTENSION: 27" X 40-1/2"ALTURA MESA: 34-1/2"DIAMETRO DEL DISCO 12"DIAMETRO FLECHA 5/8"VELOCIDAD DEL DISCO: 4560 RPMRANGO ELEVACION DISCO: 0 A 4"RANGO INCLINACION DISCO: 0 A 45 GRADOSCAPACIDAD MAXIMA DE CORTE A 90 GRADOS: 4"CAPACIDAD MAXIMA DE CORTE A 45 GRADOS: 2-3/4"PESO: 127 KGS
