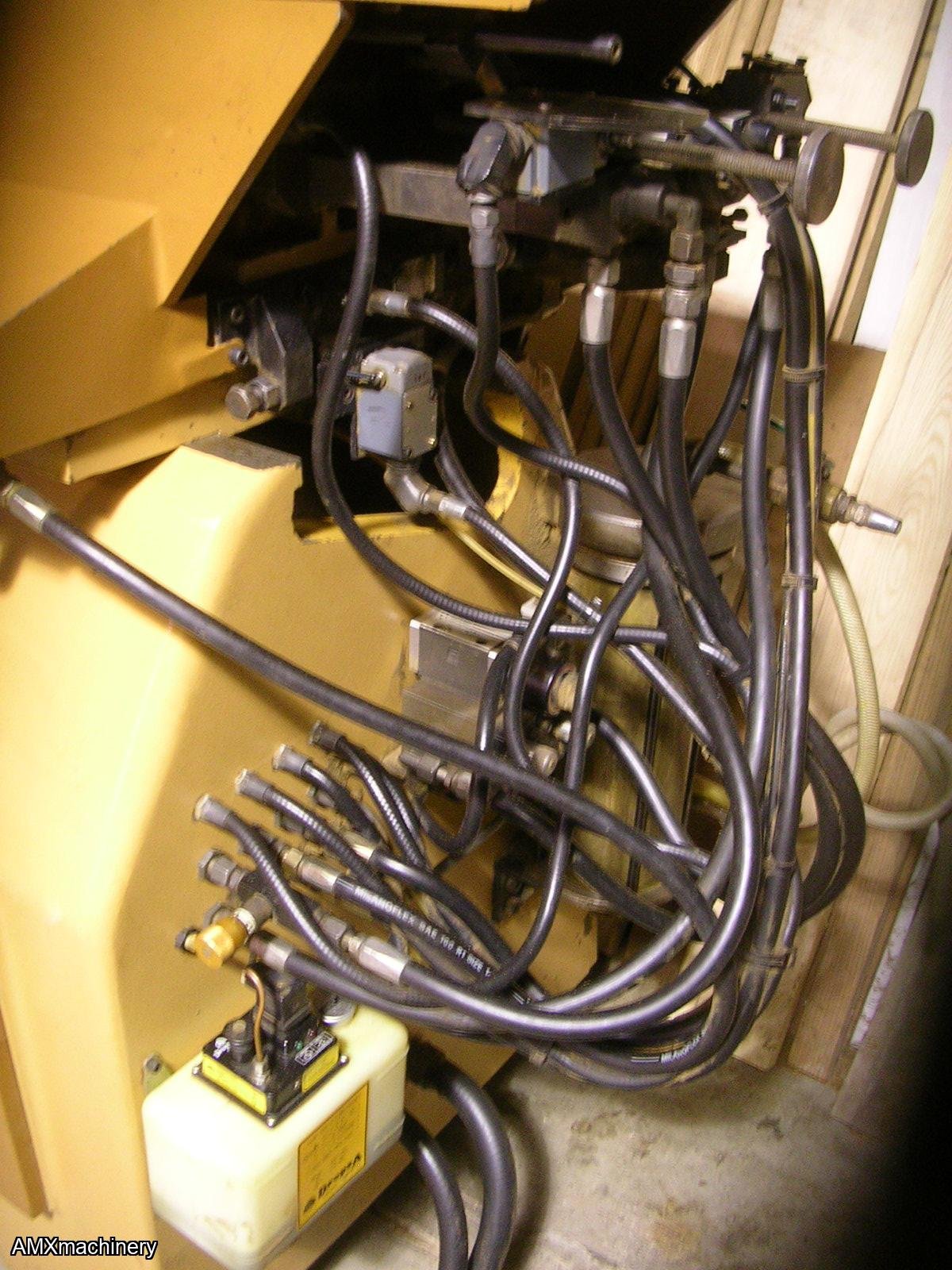

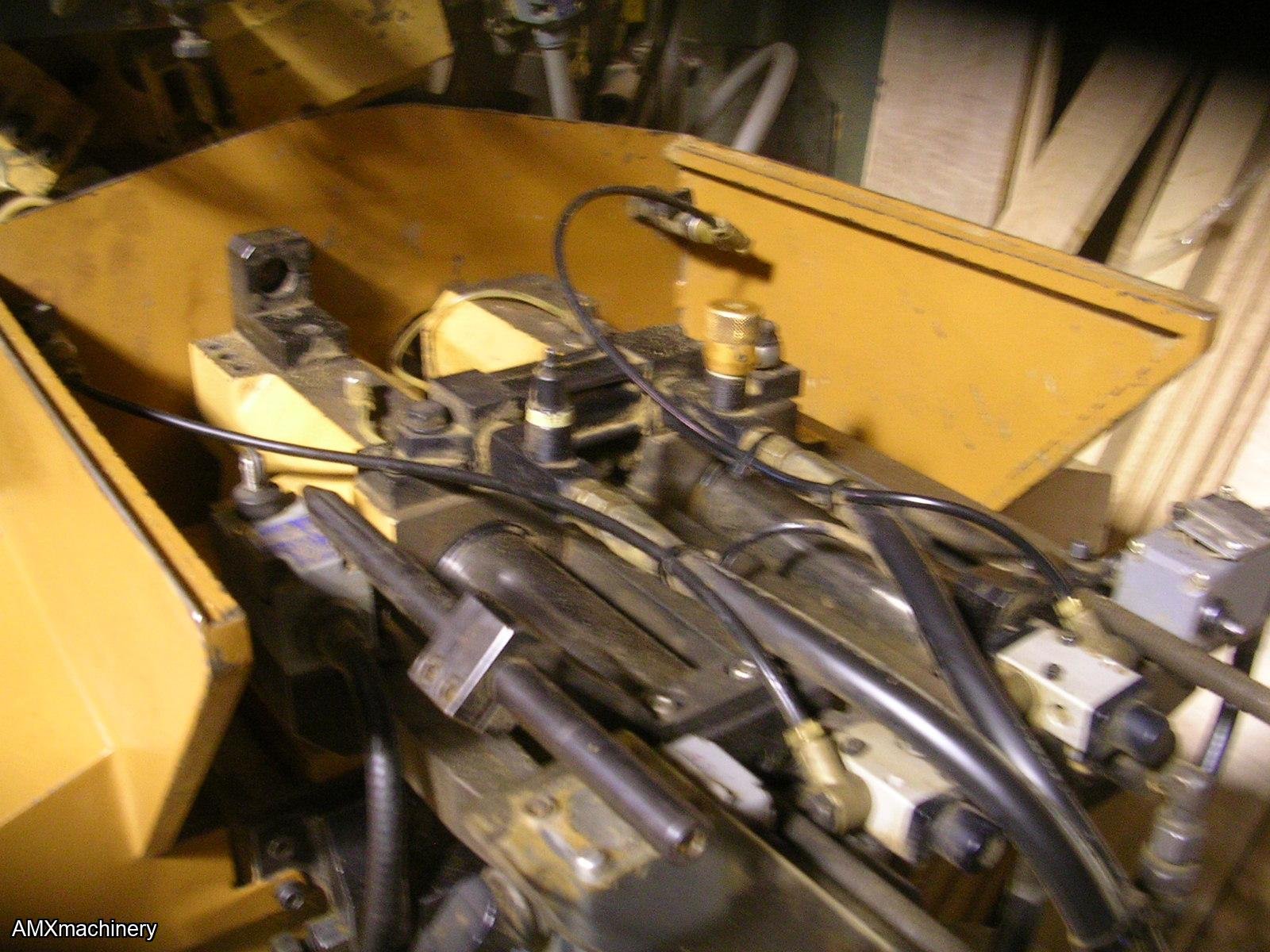

PARTE: 12172 – TORNO COPIADOR - LOCATELLI BIG ARRIET
USADO – BUENAS CONDICIONES
Fully operationally
over $9,000 in steady rests and tooling
max. capacity 4" dia. x 6" length
Sequence as follows;
roughing knife
steady rest
traveling roughing knife
second roughing pattern knife
finishing pattern knife
parting knife
Also ....if needed
end boring bit or formed bit
second end boring bit or formed knife with side sliding movement
Locatelli Dimensions: 10’ 6” Long x 6’ wide x 6’ tall
Weight
aproximate: 5,500 lbs.
Automatic Cycle: hopper feeds squares or round blanks into chuck
Station #1...blank is advanced...first trim knife... trims the blank.. to fit thru hollow chuck/steady rest
Station #2...(1) roughing knife follows template...to rough to basic shape
Station #3...(1) finishing knife makes the first finish cut
Station #4...(1) finishing knife (set slightly deeper) makes finish cut
Station #5... and #6... end boring or end shaping (if needed)
Station #7... parting tool... mills or cuts off the finished part..finish part drops
Head stock advances to scheduled stop...cycle continues
Production rate..(300-450) parts per hour
(depending on part to be milled... all or some of the stations can be used as needed)
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12442 - PRENSA ARMADORA DE GABINETES - 98” X 55”
PARTE:
12442 - PRENSA ARMADORA DE GABINETES - 98” X 55”
Usada - En Buenas CondicionesEffective
Working Size: 98″ L x 55″ H x 27″ DeepMin.
Effective Working Size: 8″ L x 10″ HAutomatic/Manual
MotorizedAdjustment
of vertical and horizontal beams(2)
1.5 HP motorsJoy-stick
for manual movementClamp
timerCondition:
Cleaned/Checked
Electrical:
230V, 3PH
AMXmachinery
REBORDEADORA -530W
PARTE: 1MK-3709 – REBORDEADORA – 6MM (1/4”) – 530W - MAKITANuevo con garantíaFotos y caracteristicas:6mm (1/4")Ajuste suave y preciso de la profundidad con mecanismo de sujeción.Empuñadura cubierta de neopreno para un mayor confort y control.Base de plástico transparente para una vista más clara de la orilla de corte.Potencia: 530WCapacidad: Anillo: 6mm or 1/4"Velocidad sin carga: 30.000Dimensiones (L x A x A): 82x90x199mm (3-1/4"x3-1/2"x7-7/8")Peso neto:1,5kg (3,3lbs)
AMXmachinery
SIERRA ESCUADRADORA 3000 MM
PARTE # 1N-SBO-010 - SIERRA ESCUADRADORA - 3000 MMCAPACIDAD 3 MTS DE LARGOMOTOR 5 HP, 220V, 3 FASES
AMXmachinery
ENGOMADORA 2 LADOS – BLACK BROS – ANCHO 68”
PARTE: 12128
- ENGOMADORA 2 LADOS – BLACK BROS – ANCHO 68”
USADA – MUY
BUENAS CONDICIONES - REACONDICIONADA
Width
Capacity: 68"
Grooved,
Rubber-Covered Applicator Rolls
Applicator
Roll Diameters: 7.75"
Main Motor:
1.5 HP, 208-230/460v, 3ph
Hard
Rubber-Covered Doctor Rolls
Top-Elevator
Style (Constant Pass-Line) w/ Manual Hand-Crank for Thickness Adjustment
Mechanical
Digital Readout for Thickness
Currently
460v, 3ph (Ask about Voltage Change)
