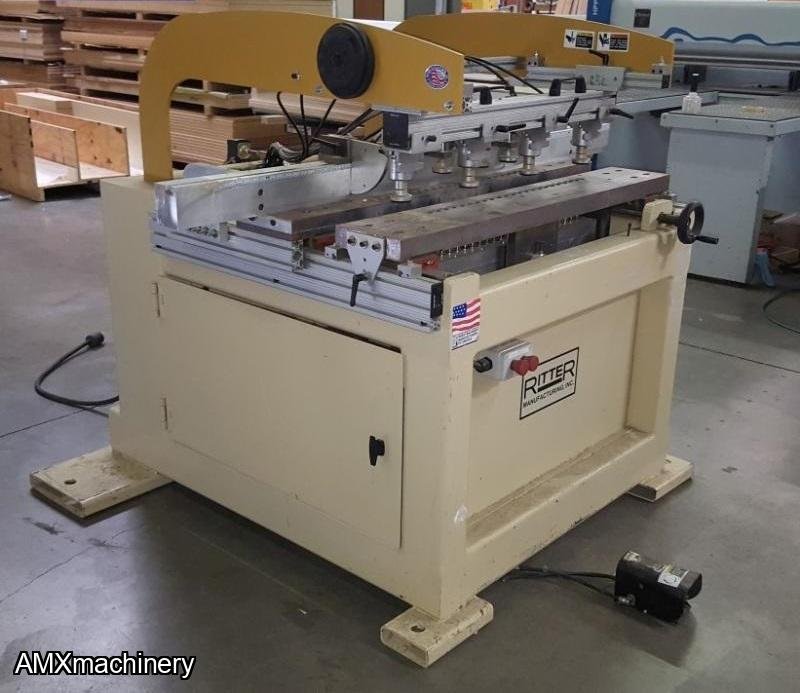

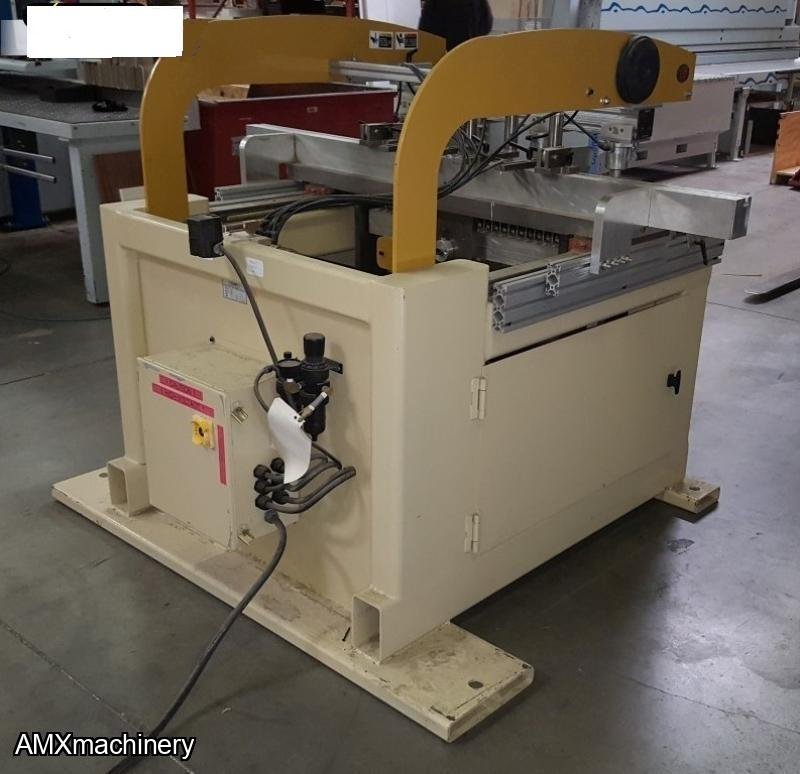

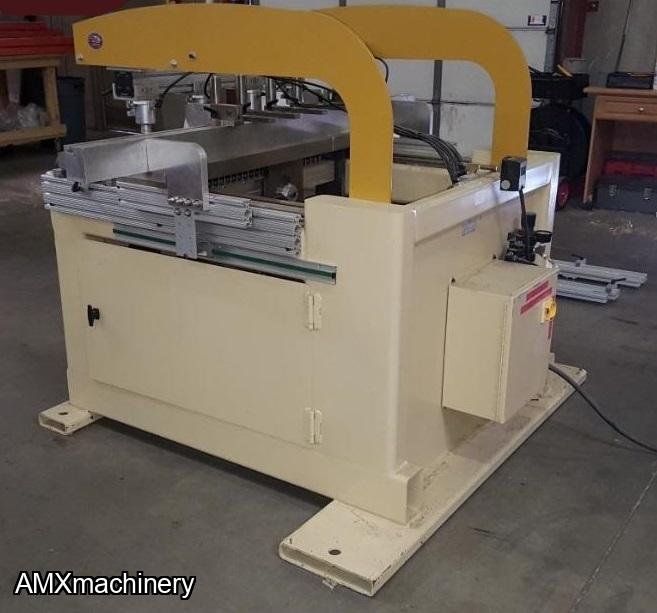

PARTE: 12584 - TALADRO MULTIPLE – RITTER R246
USADO - MUY BUENAS CONDICIONES
(2) Bottom vertical drill heads, each with (23) gear driven spindles on 32 mm centers (24 RH and 22 LH rotation), (2) 3 HP motors, 3,450 RPM spindle speed.
Row & boring head spacing adjustable from 5" - 24" with mechanical digital readout, pneumatic cylinder drill head advance, 0" - 1-1/2" adjustable stroke and 3-position turret depth control.
Equipped with: (4) Overhead adjustable pneumatic holddowns on each head, 72" long "traveling" back fence system with 0" - 3" adjustment from rear head spindle center line, hand wheel adjustable (fence line & rear head move together or the rear head can be manually adjusted independent of the rear fence line).
(2) Adjustable Heavy Duty material flip stops and (2) 53" left & right fence extensions each with (3) adjustable material stops.
Each head with 49" long x 8" wide panel support table (front table moves with front drill head), above table tool change positions.
Includes & features: 10 mm Dia. spindle collets, single or double row drill head stroke control, foot pedal activated and magnetic push button motor starter with overload.
Dimensions: 72" L x 60" W x 52" H
Weight: 3,040 Lbs (estimate)
Elect./Voltage: 220V, 60 Cy, 3 Ph.

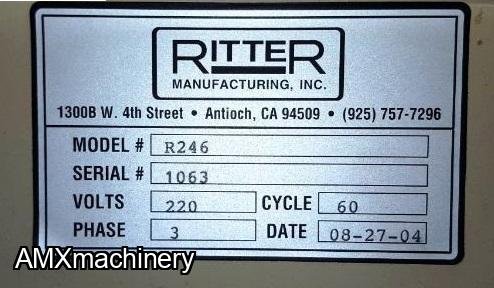

Year MFG: 2004
Payments & Returns
- Payment Methods
- Transferencia/Deposito Bancario
Post Message
Sign in to ask the seller a question.
AMXmachinery
PARTE: 12295 - LIJADORA DE BANDA ANCHA - 52” ANCHO - 2 LIJAS - TIMESAVERS
PARTE: 12295 - LIJADORA DE BANDA ANCHA - 52”
ANCHO - 2 LIJAS - TIMESAVERS
USADA BUENAS CONDICIONES
460/60/3 electrics
Standard
Specifications:
1st head,
75 HP, 230/460/60/3 hard rubber contact drum
2nd head,
60 HP, 230/460/60/3 hard rubber contact drum
Weighs 16,000 lbs.
AMXmachinery
CEPILLO 2 CARAS - CAPACIDAD 15” - NORTHTECH
PARTE:
- CEPILLO 2 CARAS - CAPACIDAD 15” - NORTHTECH
USADO - BUENAS
CONDICIONES
Mfg: 2006
15" width capacity
6" height capacity
Helical heads
Top head 20HP
Bottom head 15HP
20-90 FPM
Motorized opening (1 HP)
460 volt 3 phase
AMXmachinery
PARTE: 2GM-HS-0412-MD-3 - GUILLOTINA HIDRAULICA - DELUXE
PARTE: 2GM-HS-0412-MD-3 - GUILLOTINA HIDRAULICA - DELUXEModelos Disponibles:HS-0412MD, 4’x12Ga. 3 HP, 220//440V, 3 PH, 24” manual back gaugeHS-0410MD, 4’x10Ga. 5 HP, 220440V, 3 PH, 24” manual back gaugeHS-0610MD, 6’x10Ga. 5 HP, 220/440V, 3 PH, 24” manual back gaugeHS-0810MD, 8’x10Ga. 7.5 HP, 220/440V, 3 PH, 24” manual back gaugeHS-1010MD, 10’x10Ga. 7.5 HP, 220/440V, 3 PH, 24” manual back gaugeHS-1014MD, 10'x14Ga. 5 HP, 220V, 3 PH, 24" manual back gauge
-500x500.jpg)
AMXmachinery

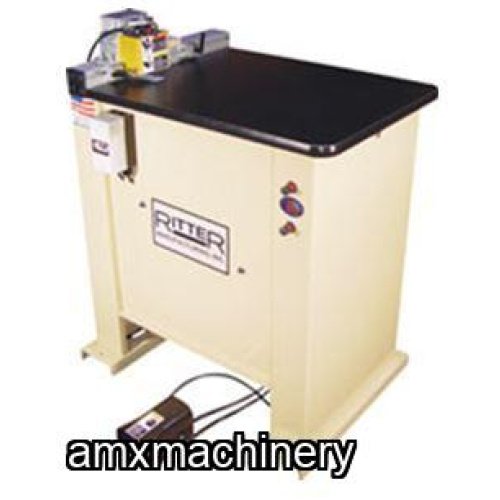

TALADRO UNION BASTIDORES - 2 TALADROS
PARTE # 2RT-R220T - TALADRO PARA UNION BASTIDORES - 2 TALADROS1.5 HP Spindle Drive Motor, TEFC1” Spindle CentersManual Controls, 110 V, TEFCFoot Actuated Boring CycleTooling included14 Degree Double Spindle1” Spindle Centers6,100 RPM Spindle SpeedBall Bearing Collet Guide Bushing Block24” X 30” Table AreaAdjustable Fence with (2) StopsDesigned and Manufactured in the USA Additional options:R220T3 – 1.5 H.P. 3-Phase 230/460 Volt
