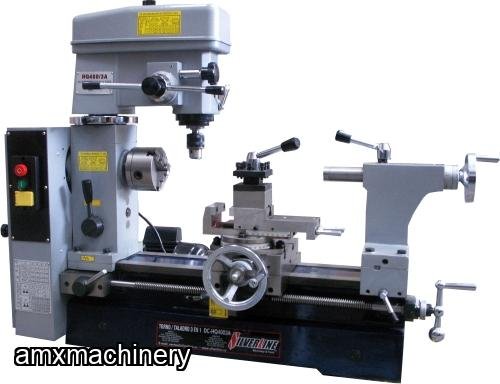

PARTE: 1SL-DC-HQ400-3A - TORNO - TALADRO DE AVANCE AUTOMATICO 3 EN 1
AMXmachinery
Descripción
PARTE: 1SL-DC-HQ4003A - TORNO - TALADRO DE AVANCE AUTOMATICO 3 EN 1
NUEVO CON GARANTIA
DESCRIPCION:
- MOTOR 1 HP, 220V, 60 Hz, 2 FASES
- HACE ROSCAS MILIMETRICAS Y ESTANDAR
TORNO:
- CAPACIDAD DE VOLTEO: 280 MM
DISTANCIA ENTRE PUNTOS: 350 MM
DIAMETRO DEL CHUCK: 100 MM
VELOCIDADES: 7 VELS (160-1360 RPM)
HUSILLO: 19 MM
TALADRO:
BROQUERO: 1.5 - 13 MM
CARRERA DEL HUSILLO: 80 MM
CAPACIDAD DE GIRO DE LA CABEZA DEL TALADRO: 90 GRADOS
VELOCIDADES: 14 VELS (117-1300 RPM)
MEDIDAS TOTALES: 42" LARGO X 23" ANCHO X 35" ALTO
PESO: 180 KGS
TIPO DE EMPAQUE: 1 CAJA
