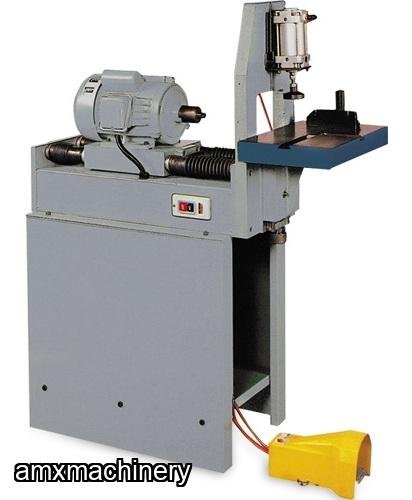

PARTE: 2CA-BR-25NUR/BR-25MILL - TALADRO HORIZONTAL CON O SIN CABEZAL MULTIPLE
AMXmachinery
Descripción
PARTE: 2CA-BR-25NUR/BR-25MILL - TALADRO HORIZONTAL CON O SIN CABEZAL MULTIPLE
| Specifications | 2CA-BR-25KNUR / MILL |
|---|---|
| Motor Standard | 2 HP |
| Spindle Speed | 2900 RPM |
| Knuring / Milling Cutter heads | Optional by Customer request / Design |
| Stroke Distance | 0~3" (0~80 mm) |
| Table Size | 11.4" x 11.2" (290 x 285 mm) |
| Machine Size with Stand | 42" x 19" x 42" (1067 x 483 x 1067 mm) |
| Machine Size W/O Stand | 40" x 15" x 28" (1016 x 381 x 711 mm) |
| Packing Size | 44" x 21" x 44" (1118 x 521 x 1118 mm) |
| N. W. | 331 LBS (150 kg) |
| G. W. | 375 LBS (170 kg) |
- The BR-2SKNUR machine is Designed for knurling operations on the turned end to achieve secure jointing effect.
- The machine is a high production, automatic unit and is pneumatically operated with air clamp by a foot switch for convenient operation.
- The machine is supplied with one knurling cutter head as standard.
- Further sizes of knurling cutting head are supplied as optional.
- The BR-25MILL machine is designed for producing a round or taper section at the end of rod turning.
- The unit is pneumatically operated with air clamp and controlled by a foot switch for convenient operation.
- The machine is supplied with one set of cutter head as standard, cutter head diameter as per customer’s specification.
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12474 - PINCH ROLLER - EVANS
PARTE: 12474 - PINCH
ROLLER - EVANS
USADA - BUENAS CONDICIONES
Safety Gates on In-Feed and Out-Feed
Solid Top and Bottom Rollers
Feed Rate: 50’ FPM
Maximum Width: 62”
Maximum Thickness: 2”
Thickness adjustable by spacers
Work Height: 30-1/2”
Drive Motor: 1/2 HP
Electrical: 120 V, 1 PH,
60 Hz
Air Requirement: 100 PSI
AMXmachinery
PARTE: 4EL-DSX - SIERRAS ESCUADRADORAS VERTICALES - ELCON - SERIE DSX
PARTE: 4EL-DSX - SIERRAS ESCUADRADORAS VERTICALES - ELCON
- SERIE DSX
SERIE DSX-155
SERIE DSX-185
SERIE DSX-215
SERIE DSXL-155
SERIE DSXL-185
SERIE DSXL-215
SERIE DSX1/2L
SERIE DSX1/2L
SERIE DSX1/2L
Model & Dimensions (mm)
155
185
215
Maximum
cutting length
3300
3300
4300
Maximum
cutting height - Horizontal
1505
1805...
AMXmachinery
SISTEMA FINGER JOINT - 2 TROMPOS - 1 ENSAMBLADORA - MARCA HPC
PARTE:
12371 - SISTEMA FINGER JOINT - 2 TROMPOS - 1 ENSAMBLADORA - MARCA HPC
USADO
- MUY BUENAS CONDICIONES
Make HPC
Year 1997
Phase 3 PHASE
Voltage 220 VOLT
Estimated Dimensions
Foot print of line 52' x 15'
Estimated Weight 10,000
Lbs (approx)
DESCRIPTION:
HPC Double Sided
Automatic finger joint line
Station 1 squares one
end and cuts initial finger joint
Station 2 squares the
other end, cuts finger joint, and applies glue.
Station 3 assembles an...
AMXmachinery
PARTE: 1SL-DC-SP430 - TROMPO - MOTOR 2 HP - CON FLECHA DE 1/2" Y 3/4"
PARTE: 1SL-DC-SP430 - TROMPO - MOTOR 2 HP - CON FLECHA DE 1/2" Y 3/4" NUEVO CON GARANTIAMOTOR: 2 HP, 110/220V, 60Hz, 1 FASEALTURA MAXIMA DEL CORTADOR: 2-1/2"MEDIDA DE LA FLECHA: 1/2" Y 3/4"MEDIDA DE LA MESA: 20" X 18"ALTURA DE LA MESA: 33-1/2"VELOCIDAD DE LA FLECHA: 7000 - 10000 RPMBOQUILLA PARA USAR BROCAS: 1/2" (REDUCTOR A 1/4)DESPLAZAMIENTO DEL ARBOL: 3"PESO: 95 KGSEMPAQUE 1 CAJA- EL ALIMENTADOR EN LA FOTO SE VENDE POR SEPARADO
