ID: 2533
Open
Description

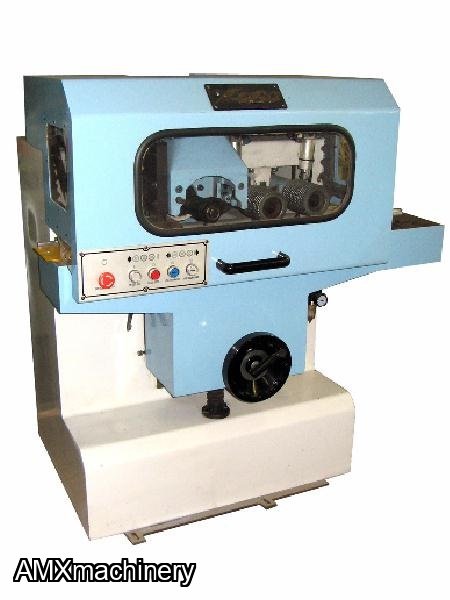

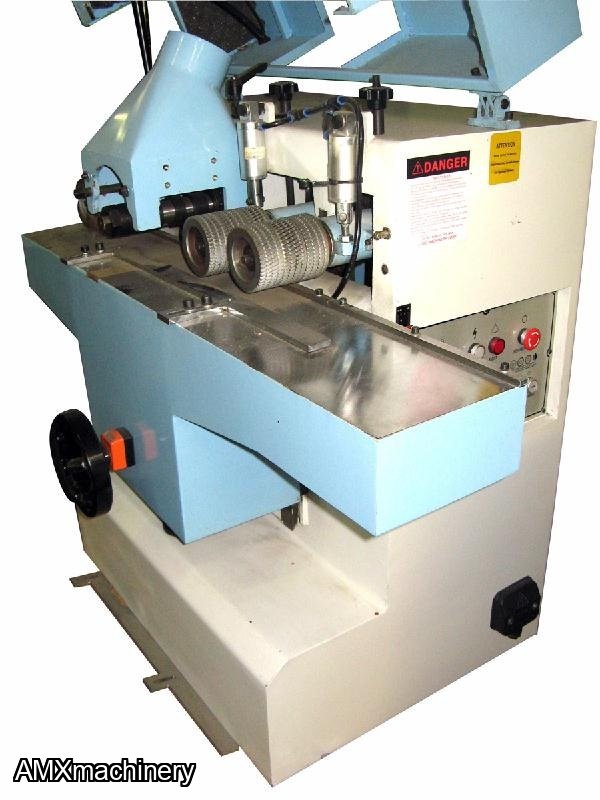

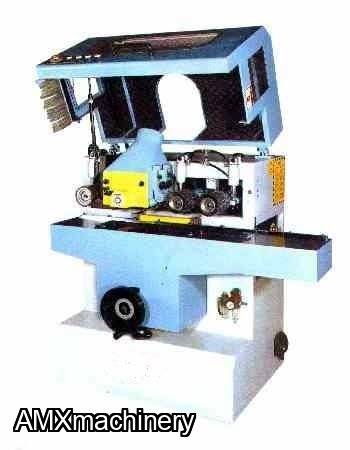

PARTE: 2CA-SM-65MO – MOLDURADORA – 1 LADO SUPERIOR – 6” ANCHO
Nuevo con garantía
Features:
Powered pneumatic upper & lower pressure rollers for through feeding and precise cutting.
Precision ground cast iron table for durability.
Rigidly mounted alloy steel spindle provides accurate vibration-free power transfer.
Heavy-duty sheet metal frame.
Heavy-duty alloy spindle for durability & run out free performance.
Spindle height adjustment by precision rack & pinion gears.
Magnetic overload switch for protection.
Totally enclosed TEFC motor with sealed for life ball bearings.
SPECIFICATIONS 2CA-SM-65MO
Max. Working Width 6"
Min. Working Width 1/2"
Max. Working Height 5"
Min. Working Height 1/2"
Spindle Diameter 40 mm
Spindle Speed 6000 RPM
Spindle Motor 5-1/2"
Feed Speed 12 ~ 30 FPM (5 Speed)
Feed Motor 1 HP Power 220V 3 PH
N.W. 1050 LBS
G.W. 1400 LBS
