Description

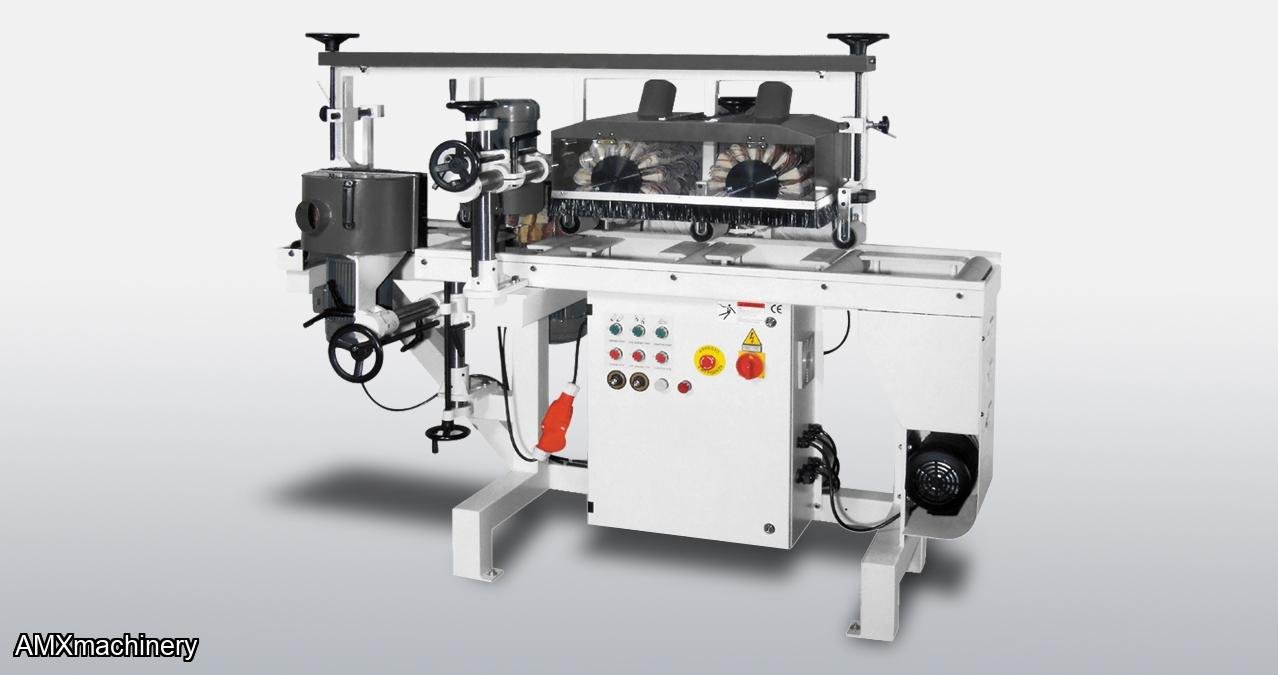

PARTE: 2CK-LBS300-5S - LIJADORA DE MOLDURAS - 3 CARAS
Eliminate hand sanding with our economical sanding and de-nibbing solution for linear profile
Designed to help with your everyday linear profile sanding needs. It can be used for white wood sanding and sealer sanding of linear parts such as mouldings, flooring, furniture components, window parts etc. The machine works well as a standalone unit, or as part of the finishing line.
- Designed for sanding linear profiled wood on three sides
- Brushing heads consist of abrasive cloth strips and cleaning brushes and are design to access profiled components.
- Ideal for sanding and defibbing linear products including:
- Moldings, skirting, architrave, flooring
- MDF, hardwoods and softwoods
- Paint, sealer, and lacquer sanding
KEY ADVANTAGES
- Main Frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
- Centralized Control Panel for operator convenience. Clearly Identified & colour coded push buttons simplifying setup & operation
- Variable speed adjustment by inverter (VFD’s) to all brush sanding heads (200-1200 RPM) for optimum sanding results
- (2) Sets of top brushing sanding heads with working height adjusted by handwheel and can be set on an angle for bevel siding & angled mouldings
- (1) left side brush sanding head is adjustable up/down, in/out and can be set on an angle
- (1) right side brush sanding head which can be adjusted up/down and in and out and can be set on an angle
- (1) Additional left side sanding head is adjustable up/down, in/out, and can be set on an angle
- Top Press Rolls Working Height adjusted by hand wheel.
- Brushing head consists of cleaning brush units and abrasive cloth units
- The dovetail pocket design allows for easy abrasive/brush replacement.
SPECIFICATIONS
|
Max. working width |
12″ |
310mm |
|
Max. working height |
4″ |
100mm |
|
Min. work-pieces length |
33″ |
840mm |
|
Min. work-pieces thickness |
3/8″ |
9.5mm |
|
Feed speed (Variable) |
20~56 FPM |
6~17 M/min |
|
Speed of sanding wheel |
200 ~ 1200 RPM |
|
|
Top brush head motor |
2 x 3/4 HP |
2 x .55KW |
|
Left brush head motor |
1 x ½ HP |
1 x 0.37KW |
|
Right brush head motor |
1×1/2 HP |
1 x 0.37KW |
|
Left brush head motor |
1×1/2 HP |
1 x 0.37KW |
|
Conveyor motor |
1/4 HP |
0.18KW |
|
Moving brush head motor |
1/3 HP |
0.25KW |
|
Dust ports |
4 x 90 mm and 1 x 60 mm |
|
|
Machine dimension (LxWxH) |
73” x 49” x 61” |
1840 x 1230 x 1550mm |
|
Packing dimension (LxWxH) |
81” x 40” x 64” |
2050 x 1010 x 1630mm |
|
Net weight |
748 LBS |
340 KGS |
|
Gross weight |
1034 LBS |
470 KGS |
|
Power requirements |
230/3/60 = 14 Amps 460/3/60 = 7 Amps |
|
