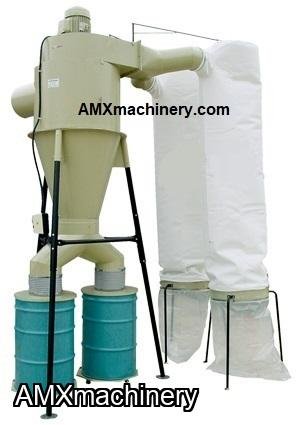

PARTE: 2EX-DC-203C – COLECTOR DE ASERRIN CON CICLON – MOTOR 3 HP – 1785 CFM
PARTE: 2EX-DC-250 – COLECTOR DE ASERRIN CON CICLON – MOTOR 5 HP – 2975 CFM
PARTE: 2EX-DC-275 – COLECTOR DE ASERRIN CON CICLON – MOTOR 7.5 HP – 4850 CFM
PARTE: 2EX-DC-2100 – COLECTOR DE ASERRIN CON CICLON – MOTOR 10 HP – 6400 CFM
Nuevo con garantía
1 micron filter bags
Drums not included
Low noise operation
standard 1 micron filter
heavy duty dynamically balanced impellers
heavy gauge steel construction
includes drum dollies
2 stage collection
Magnetic starter included
|
2EX-DC-203C
|
2EX-DC-250
|
2EX-DC-275
|
2EX-DC-2100 |
|
|
Motor |
TEFC 3 HP |
1PH: BALDOR 5 HP |
1PH: BALDOR 7.5 HP |
TEFC 10 HP |
|
Filter Bags |
1 |
2 |
2 |
2 |
|
Phase |
Single |
Single or Three |
Single or Three |
Three |
|
CFM |
1785 |
2975 |
4850 |
6400 |
|
Amps @ Voltage |
15A @ 220V |
1PH: 27A @ 220V |
1PH: 38A @ 220V |
27A @ 220V |
|
Dimensions (H x W x D) |
123" x 65" x 42" |
140" x 110" x 50" |
140" x 120" x 50" |
148" x 128" x 56" |
|
Inlet Size |
8" |
10" |
12" |
13" |
|
Impeller Size |
13" |
14-1/4" |
14-3/4" |
16" |
|
Filter Area (sq) . ft. |
37 |
59 |
117 |
117 |
|
Fan RPM |
3450 |
3450 |
3450 |
3450 |
|
Fan Size |
13" |
14.25" |
14.75" |
16" |
|
Weight |
260 lbs |
440 lbs |
540 lbs |
750 lbs |
|
Static Pressure |
10" |
12" |
13.5" |
16" |
|
Dual Barrel Design |
✓ |
|||
|
Optional Remote |
✓ |
✓ |
✓ |
