Descripción

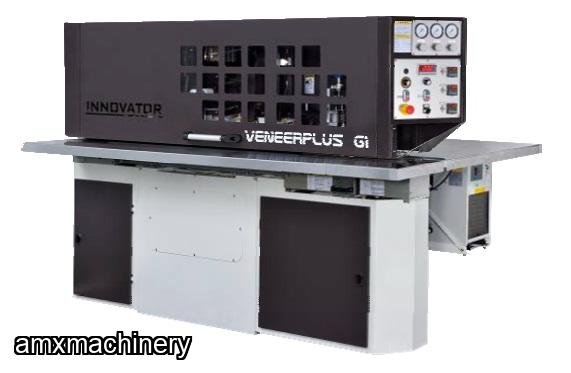

PARTE # 3NN-VENEERPLUSG1 - PEGADORA DE CANTO LONGITUDINAL PARA CHAPA
Sistema de pegamento integrado
Machine Specification
Veneer Strip Thickness (depending on veneer condition)：approx. 0.35 ~ 1.5 mm
Veneer Strip Length：min. 350 mm
Veneer Strip Width：min. 45 mm
Production Speed：up to 45 m/min.
Electric Power：approx. 8.8 kw
Compressed Air：5 bar
Heating Temperature：100 ~ 220 °C
Heating Zone：1200 mm
Dimensions (L x W x H)：2200 x 2100 x 1600 mm
Net Weight：approx. 1500 kg
Color：RAL 8019 / RAL 9003
The machine ensures to accurately and firmly bond veneer edges with no visible joint line. The longitudinal veneer splicer, VeneerPlus G1, is equipped with the integrated gluing system inside. It’s particularly suitable for the furniture industry and high-end decorative plywood. After the well-cut veneer strips are aligned evenly by the synchronized infeed rollers, the veneers are directly conveyed to the singular gluing unit for gluing edges and then transported to the heating section for glue curing. With this VeneerPlus G1, the veneer gluing and splicing processes can be accomplished within one single machine.
Coupled with Double Knife Veneer Guillotines, a perfect veneer cutting and splicing work can be achieved.
Features
- complied with European safety standards
- gluing unit driven by a speed regulated motor
- precise cooling system for prolonging glue pot life
- rigid welded machine body for stable splicing work
- special cylinder for precise control of chain pressure
- the bottom transporting chains guided by wear-resistant rails
- easy adjustment and quick access of integrated gluing system
- special-designed pressurized and heating mechanical structures
- motorized driven infeed discs instead of traditional rollers for smoother infeed
- the latest designed transporting chains of engineering plastics for reducing the heat on veneers
- reflective photocell sensor in the infeed section to ensure a perfect alignment of the jointed veneers
- adjustable speed of the glue disc for minor adjustment of the glue amount applied on the veneer edges
- both top and bottom central heating strips coated with chromium material for easy cleaning and maintenance
VeneerPlus G1
- accurate positioning with the top head unit mounted by means of pneumatic cylinders and guided by two linear
guides
- GERMANY FESTO pneumatic system, the well-known and the top brand for easy parts purchase and after-sales
service
- narrow heating zone with individual temperature controllers for minimizing the heat to avoid deforming splicing
veneers
- ideal for processing high quality glue-spliced veneer faces (different from the traditional paper taping or zig-zag
thread stitchers)
- special gluing feeding guide for perfect gluing effect, smooth feeding and height adjustment according to the
thickness of veneers
- the top and bottom transporting chains driven by one single motor for synchronization with one inverter
controlling the running speed
- thermosetting glue used for accurately and firmly bonding veneer edges with no visible joint
lines (especially suitable to splice veneers for high-level furniture and decorative plywood)
- SSR (solid state relay) heating controller, different from the heater with traditional magnetic contactor, for more
accurate temperature control and longer life without sparks of contacts
