Identificador: 274
Abierta
.jpg)
Descripción

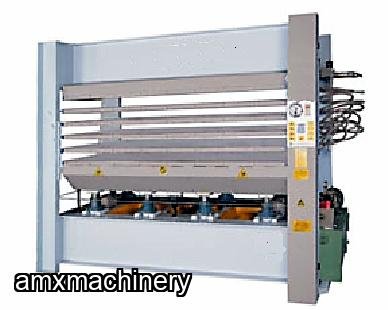

PARTE # 2TA-PT-HP48-5 – PRENSA CALIENTE – 5 SECCIONES – PLATOS 98" x 51" x 1.5"
Nueva con garantia
Heavy gauge sheet material frame.
Large hydraulic piston.
Easy operation.
| SPECIFICATIONS | PT-48CP | PT-510CP | PT-HP48-3 | PT-HP48-5 |
| Table Size | 96" x 49" | 121" x 61" | 98" x 51" x 1.5" | 98" x 51" x 1.5" |
| Max. Working Heigth | 39" | 39" | 39" | 39" |
| Max. Pressure Capacity | 60 Tons | 60 Tons | 120 Tons | 120 Tons |
| Press Moving Speed | 5 FPM | 5 FPM | 5 FPM | 5 FPM |
| Hydraulic Pump Motor | 7.5 HP | 10 HP | 10 HP | 10 HP |
| Heating Power | ~ | ~ | 48 KW | 54 KW |
| Distance Between Layers | ~ | ~ | 4" | 4" |
| Total of Layers | ~ | ~ | 3 | 5 |
| Machine Size | 119" x 49" x 116" | 145" x 49" x 116" | 153" x 67" x 87" | 153" x 67" x 99" |
| Machine Weight | 5700 LBS | 7400 LBS | 16500 LBS | 20900 LBS |
