Identificador: 1267 Abierta

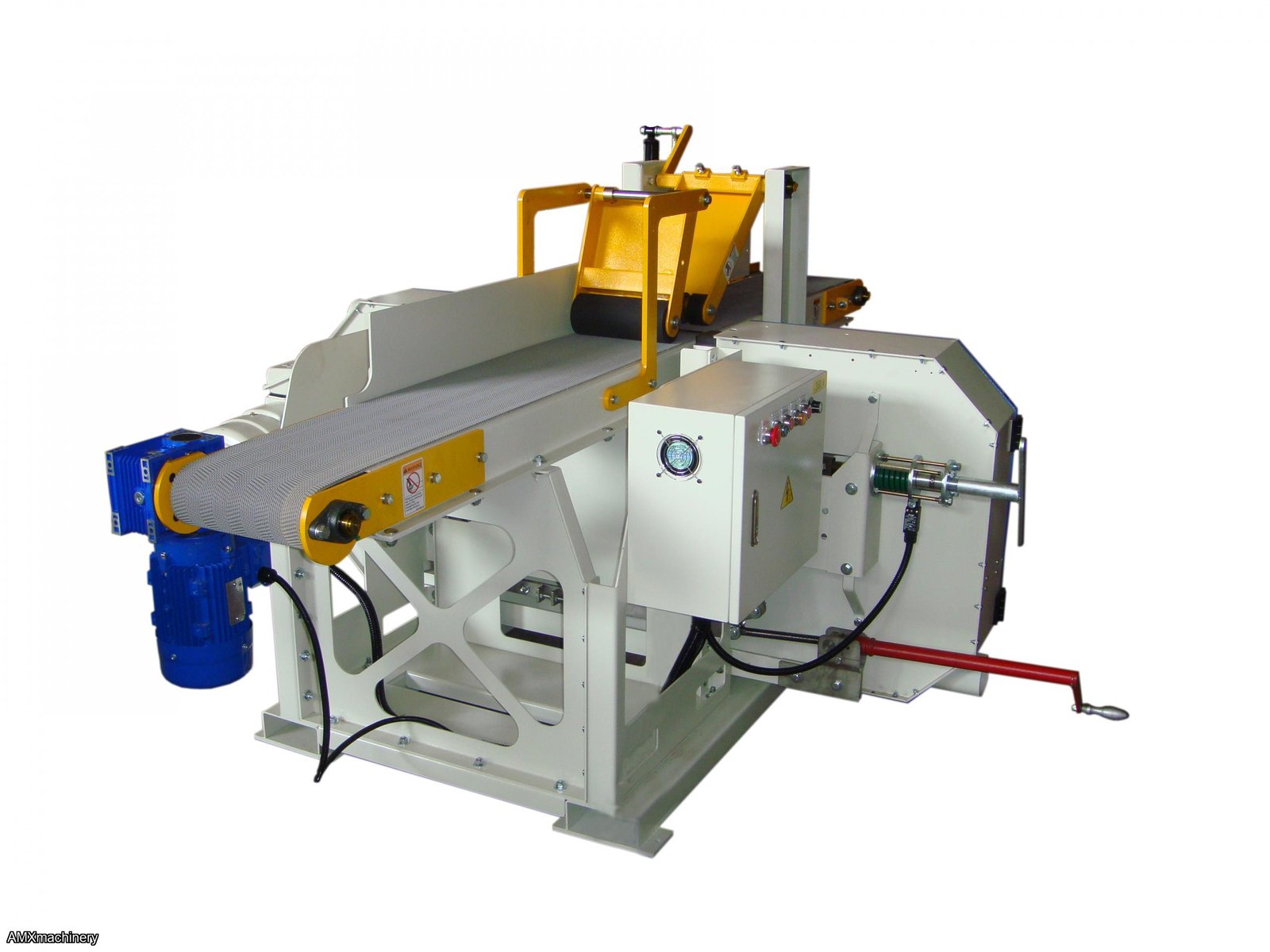

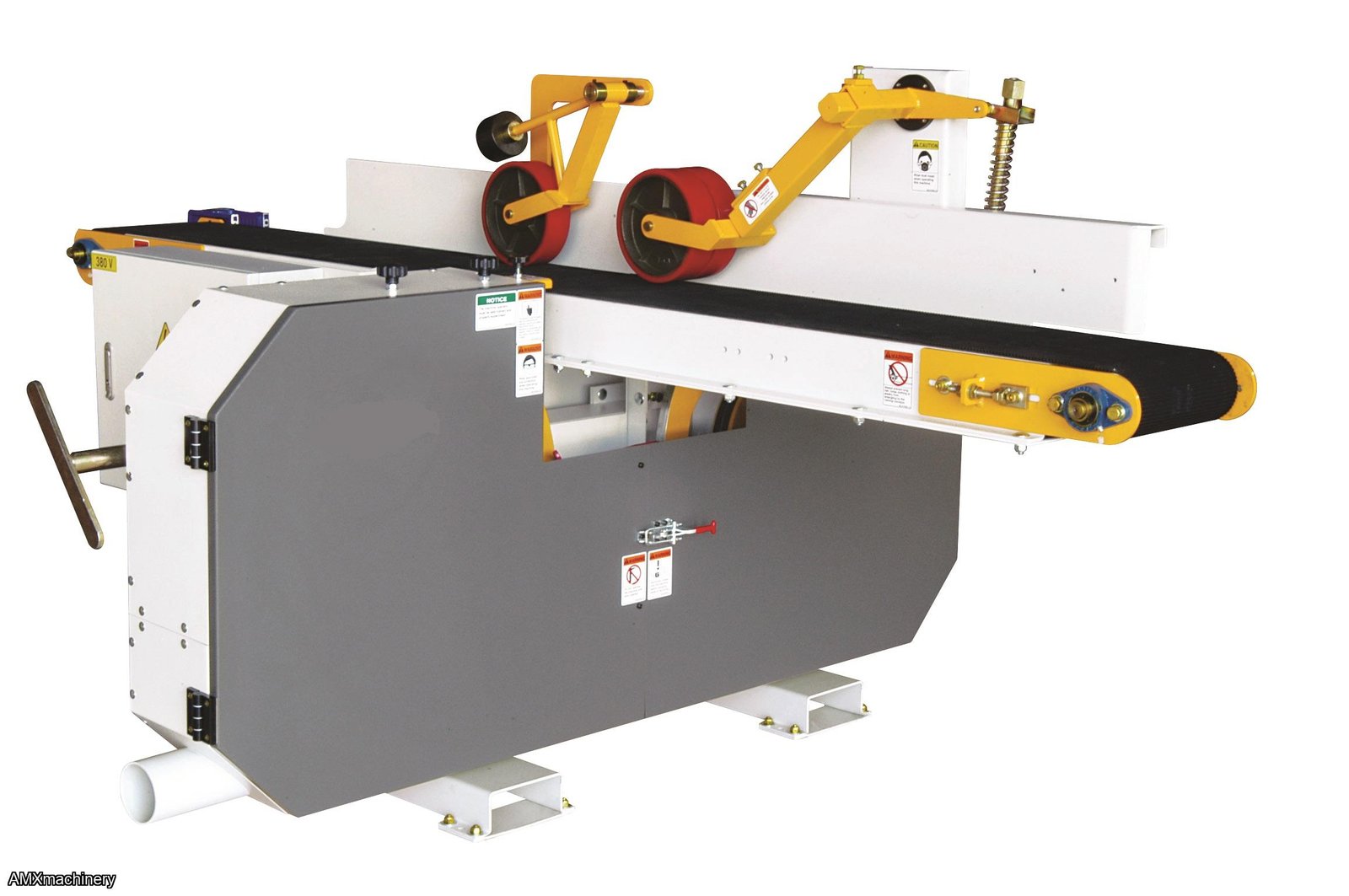

REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM ALTO

AMXmachinery

Contacte al Vendedor

Descripción

PARTE: 3HP-HP-12E - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM ALTO

Nueva con garantía

Specifications:

1.Max. workpiece size: 300mm(W) x 250mm(H)

2.Distance from blade to conveyor Table: 4-125mm

3.Conveyor belt size: 285mm x 5470mm

4.Saw wheels dimension: Φ28" x 1"(Thickness)

5.Feed speed: 5-25 M/min

6.Saw blade size: 168" x 1"

7.Saw wheel motor: 20HP

8.Conveyor motor: 2HP motor with 30:1 gear box and 2HP inverter

9.Inverter controls conveyor feed speed

10.Dust hood diameter: ψ4" x4

11.Net weight: 901 KG

12.Packing dimensions with pallet:

- Frame: 2170 x 1100 x 1120mm / 901 KGS

- Conveyor: 2870 x 620 x 750mm / 207 KGS

13._______Volt, _______Hertz
