Identificador: 1268
Abierta

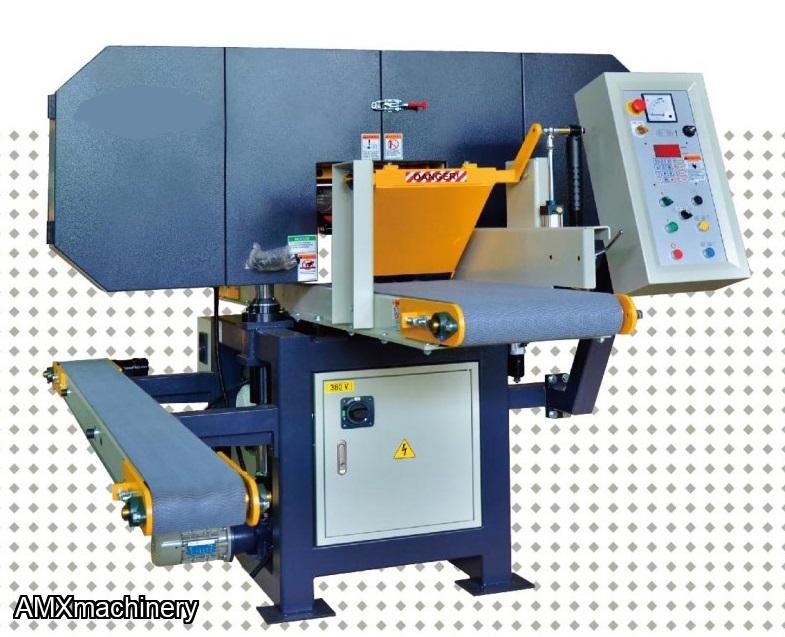

REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO
AMXmachinery
Descripción
PARTE: 3HP-HP-400PB - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO
Nueva con garantía – Uso Rudo
Specification
1.With digital readout
2.Max. working size: 400mm(W) x 250mm(H)
3.Distance from blade to conveyor Table: 3-250mm
4.Conveyor belt size: 385mm(W) x 5470mm(L)
5.Saw wheel dimension: Φ28" x 2"(Thickness)
6.Max. infeed speed: 16M/min OPTIONAL: 25M/min.
7.Saw wheel motor: 30HP
8.Hydraulic pressure: 50-55kgs/cm2
9.Dust hood diameter: 4" x 2
10.Saw blade size: 180" x 2" (4570mm x 54mm)
11.Hydraulic system:
Motor 3HP / In-feed speed WP200 (WP400 for the slowest) / Out-feed speed WP160
12.Elevation motor: 1/4HP 6P
13.Packing dimensions with pallet: 2870 x 2260 x 2160mm /1750kgs
14.Machine N.W.: 1700kgs
15.With return conveyor: Belt size 185mm x 5470mm
16.With mist coolant system for saw blade
17.Controlling blade tension: Pneumatic boosting cylinder
18.With 30HP inverter
19.Saw kerf: 1.35mm
20._______Volt, _______Hertz
