PARTE: 2CK-D405ANC

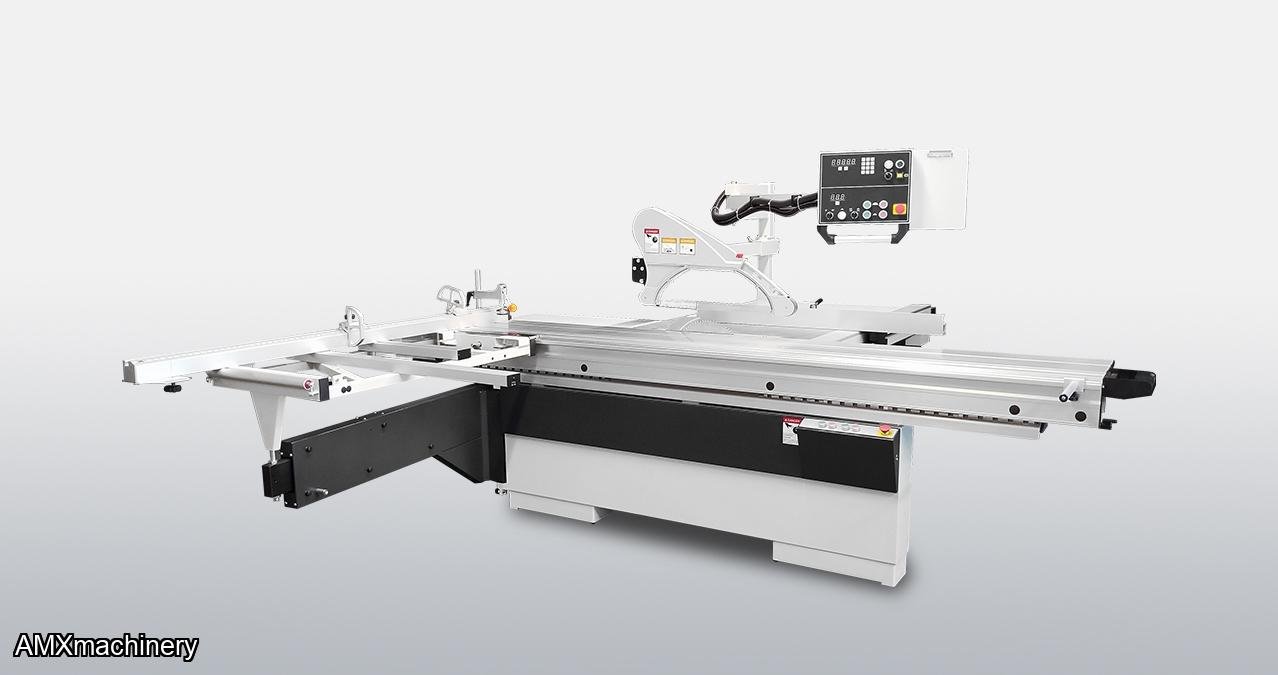

Is the ideal sliding panel saw for high accuracy cutting of sheet materials for the production of kitchen cabinetry, furniture, millwork operations, and more. The NC rip fence provides the operator with the added convenience of setting the rip width automatically through an eye level control. This saves time while providing a high level of accuracy and repeatability. The 10’ sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails.
- Programmable rip fence saves time & provides high level of accuracy and repeatability
- Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
- Powerful 7.5 HP main motor and separate 1HP scoring motor

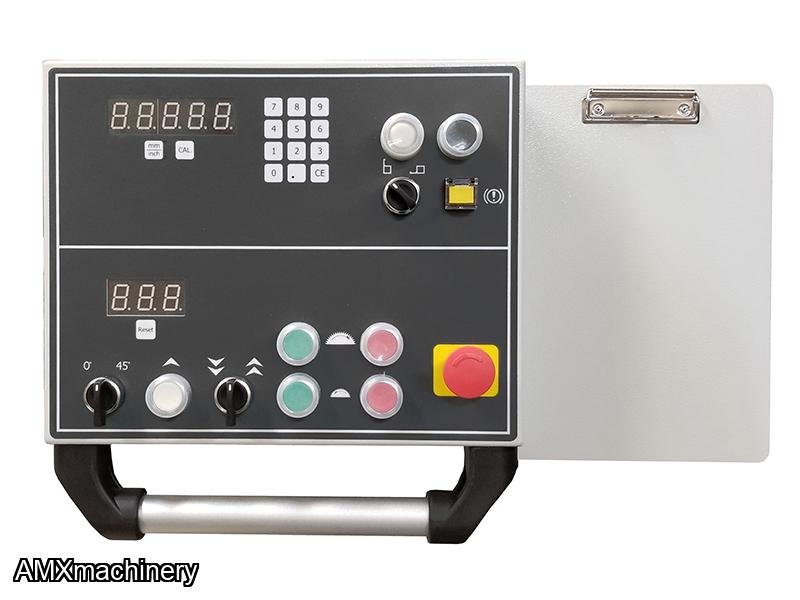

- Ergonomic eye level control panel for setting the rip width, blade height, and blade angle along with on/off switches for the main and scoring motors

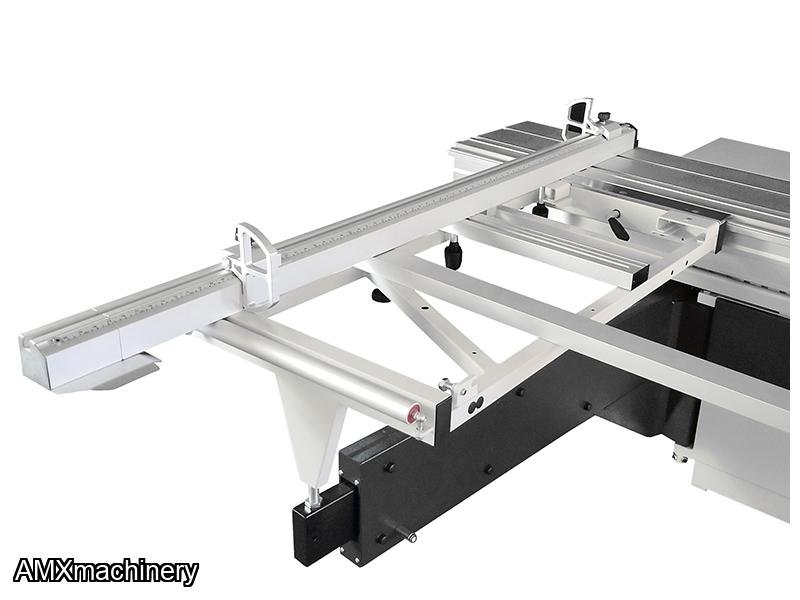

- Accurate crosscut miter fence for fast length and angle setting
KEY ADVANTAGES

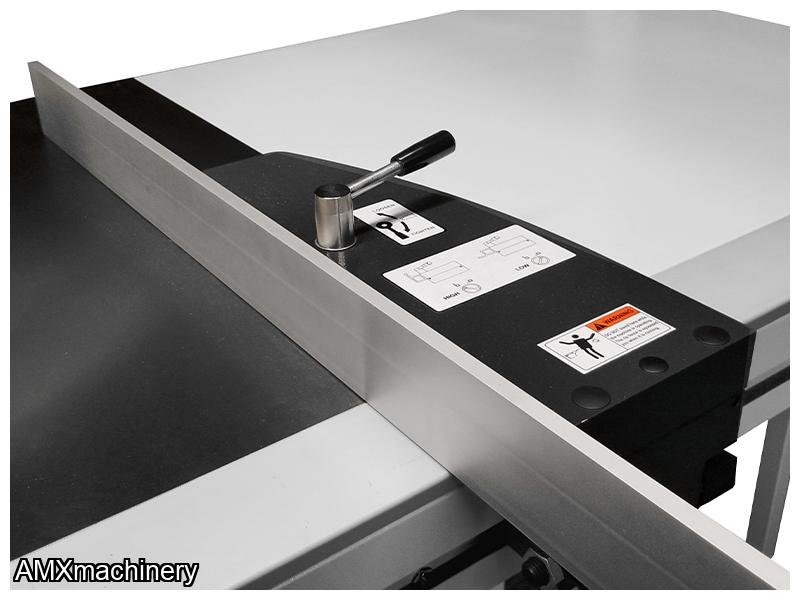

- Programmable rip fence with maximum cutting width of 51″ by means of a precision ball screw
- Motorized blade rise/fall
- Motorized blade tilting with electronic angle display on control panel
- Overhead control panel can be adjusted for operator convenience

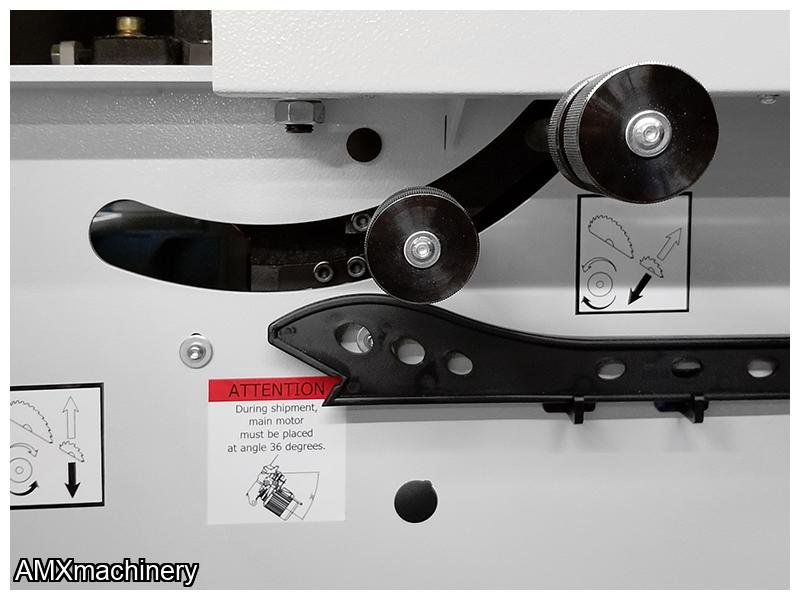

- Convenient external manual scoring adjustment
- 7.5 HP main motor with 1HP scoring motor
- (3) saw blade speeds for optimum cutting results in various materials

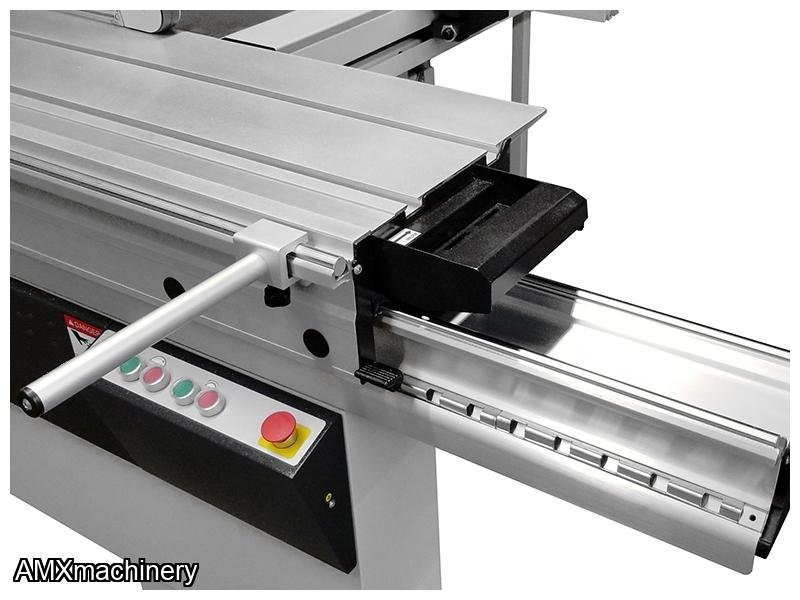

- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides

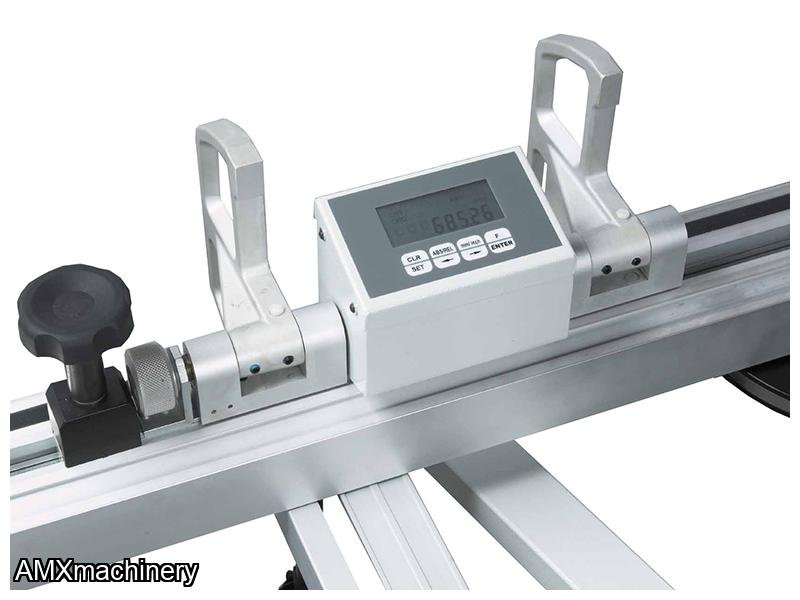

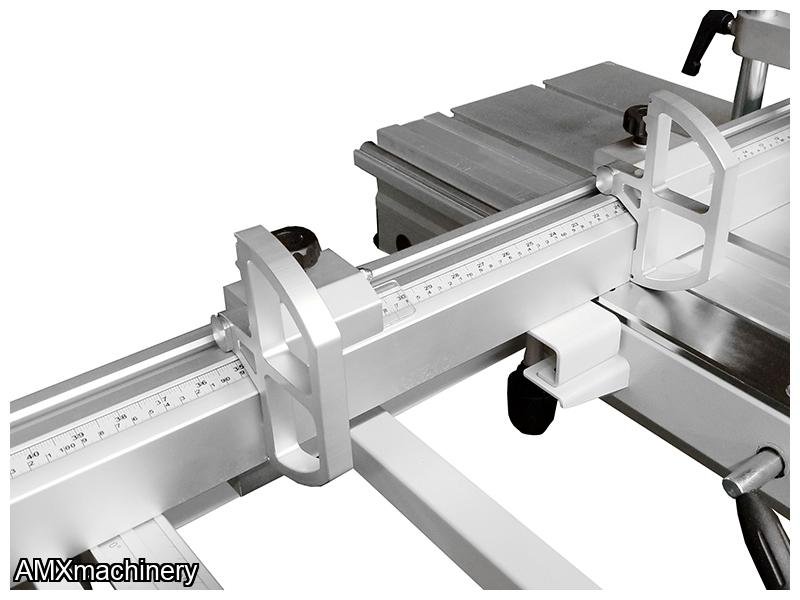

- Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations

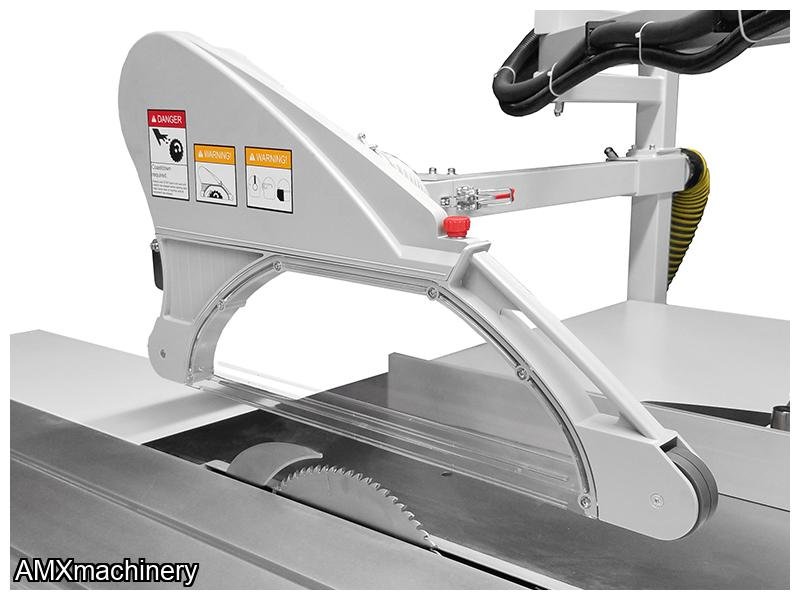

- Overhead CE blade guard with dust port
- Complete with eccentric clamp and wedge for solid wood cutting
|
|
|
Inch |
|
Sliding table dimensions |
3200 x 395mm |
126 x 15.5″ |
|
Cast iron table dimensions |
548 x 896mm |
21.6″ x 35.3″ |
|
Extension table (rear) |
952 x 896mm |
38.7″ x 35.25″ |
|
Extension table (front) |
830 x 320mm |
32.7″ x 12.6″ |
|
Table size |
1500 x 1726mm |
59″ x 68″ |
|
Main saw blade (Max.) |
400mm |
16″ |
|
Main saw bore dia. |
30mm |
|
|
Max. cutting height @ 90o (355mm) |
105mm |
4.13″ |
|
Max. cutting height @ 90o (400mm) |
130mm |
5.12″ |
|
Max. cutting height @ 45o (355mm) |
70mm |
2.75″ |
|
Main motor power |
7.5 HP |
|
|
Main blade speed |
3000 / 4000 / 5000 RPM |
|
|
Scoring blade dia. |
120mm |
|
|
Scoring blade bore dia. |
20mm |
|
|
Scoring blade motor power |
1 HP |
|
|
Scoring blade speed |
8000 RPM |
|
|
Max. rip cutting width |
1300mm |
51″ |
|
Cutting width adjustment |
Motorized |
|
|
Saw blade tilting adjustment |
0~45o (Motorized) |
|
|
Scoring saw adjustment |
Manual |
|
|
Dust collection outlets |
120 / 100mm |
4.72″ x 4″ |
|
Machine NW / GW |
558 / 649 kgs |
1228 / 1428 lbs |
|
Sliding table NW / GW |
141 / 173 kgs |
310 / 381 lbs |
|
Rip Fence NW / GW |
41 / 52 kgs |
90 / 115 lbs |
|
Machine total weight NW / GW |
740 / 874 kgs |
1628 / 1923 lbs |
|
Electrics |
230/3/60 =26.20 Full total Amps |
|
