PARTE: 2MK- BMS-3200-IR – SIERRA ESCUADRADORA – 3200 MM – 5 HP, 220V, 3 FASES – DISCO 12”
Tailor made to provide high quality precise cuts in diverse angles with a max cut depth of 4 inches (100 mm) at 90º. It includes a 5 HP motor, cutting guides, miter guide, blade guard. The noise level of this equipment is 76.5 dB (the machine turned on only) up to 110 dB (with the machine on and the exhaust system on. The noise will vary in accordance with the location the machine is in and the materials used). 2 Year Warranty.

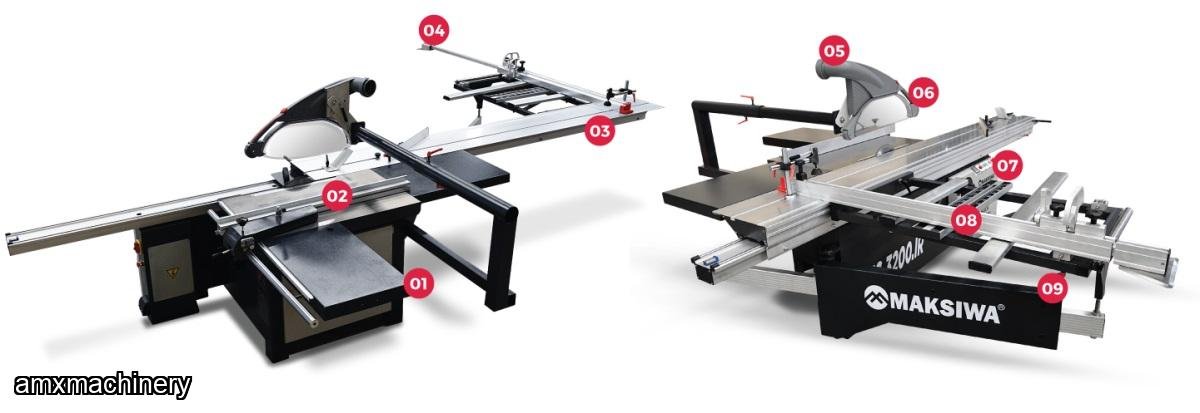

1) Iron table

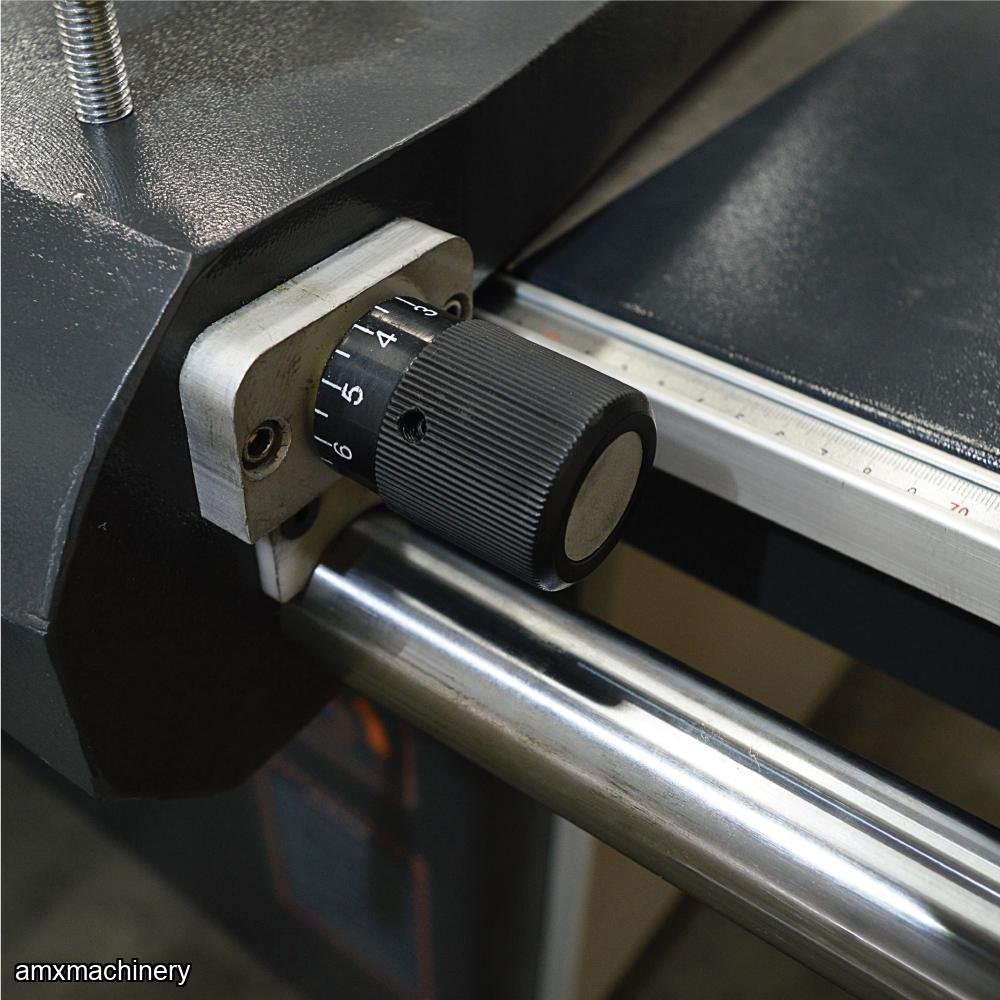

2) Linear guide table fence
3) Sliding table

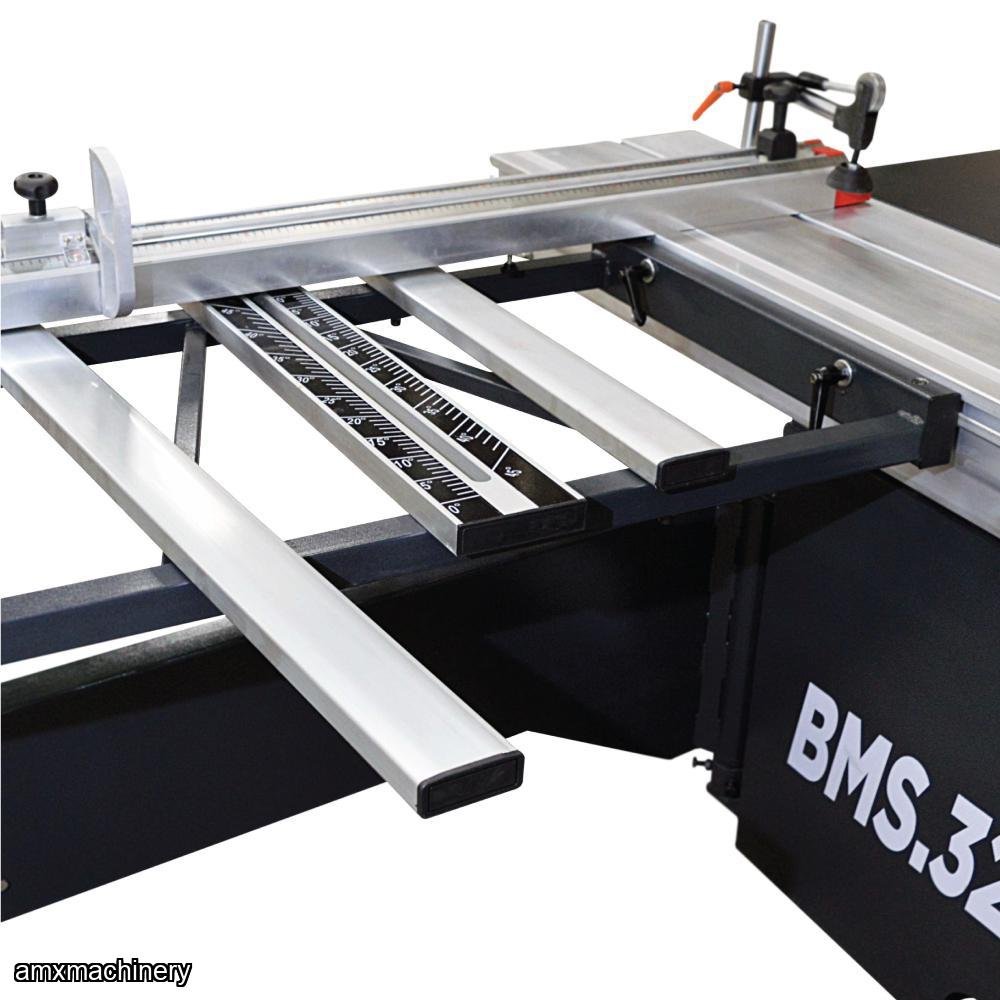

4) Sliding table guide extension

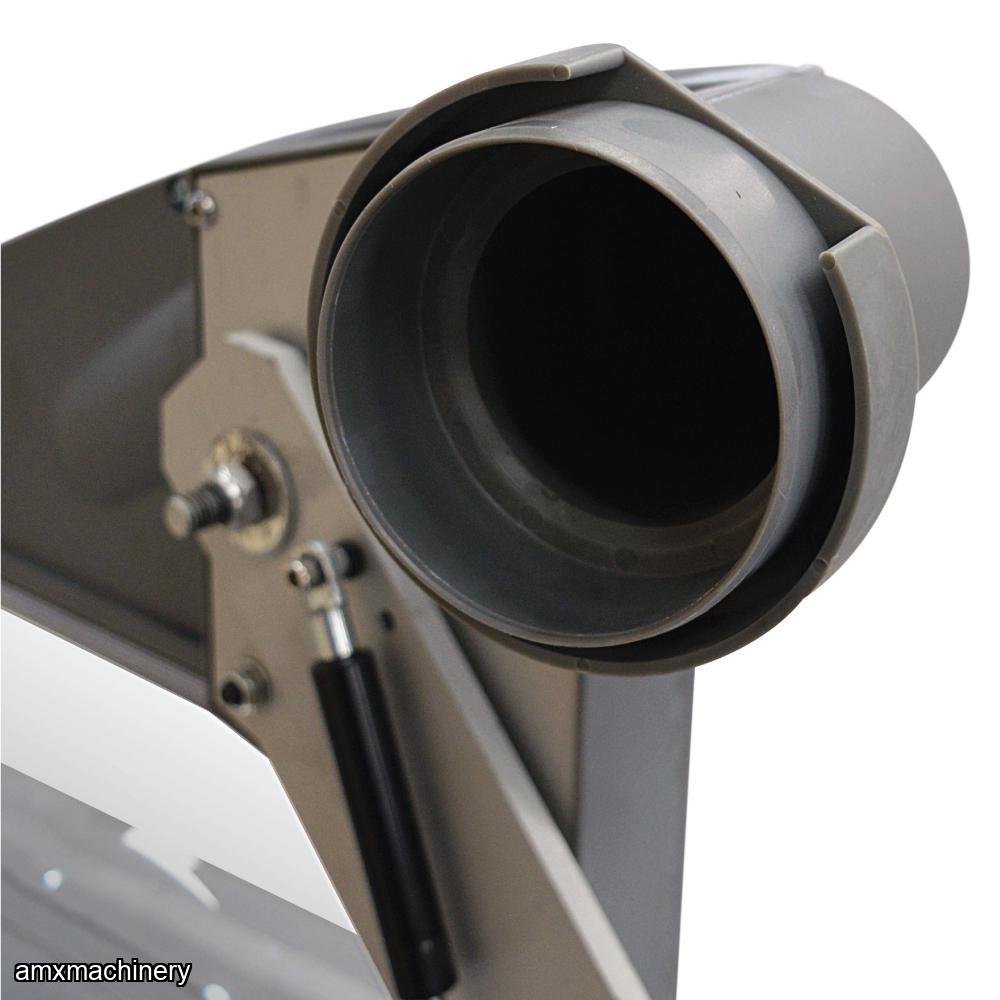

5) Dust collect system

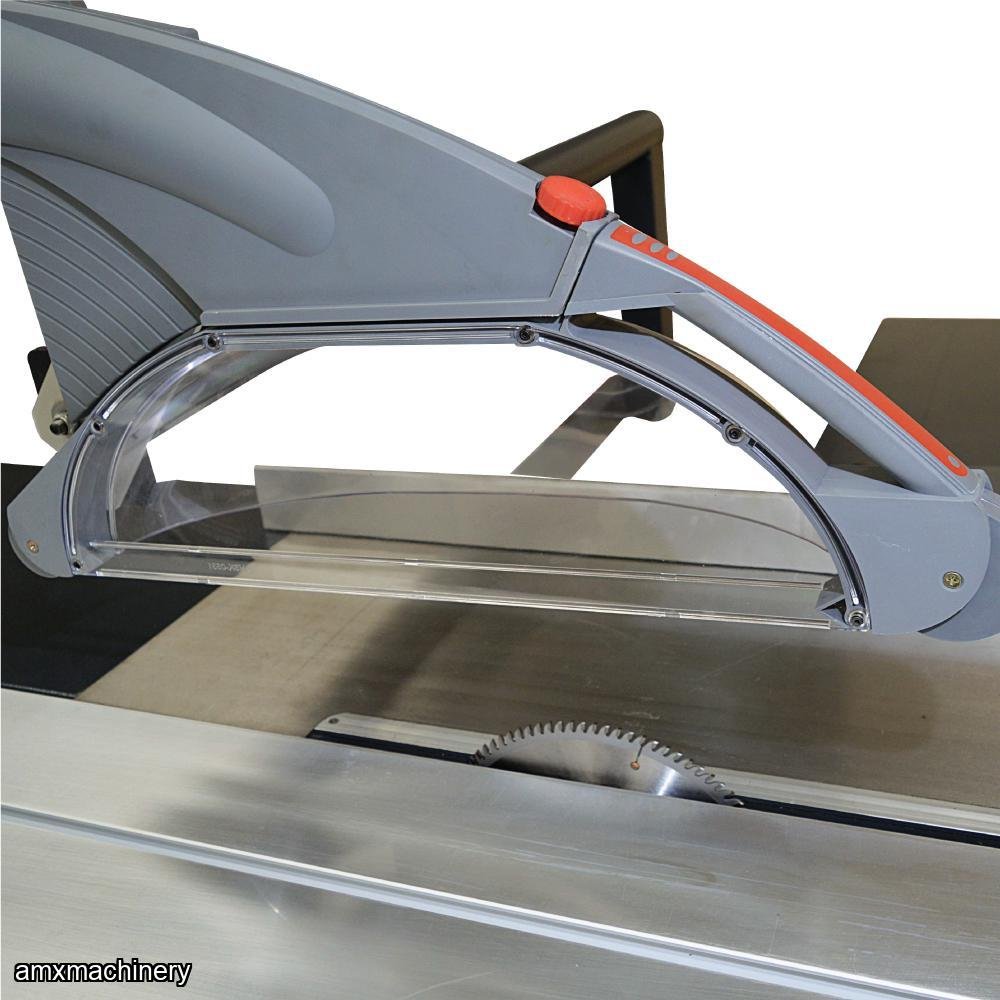

6) Blade cover

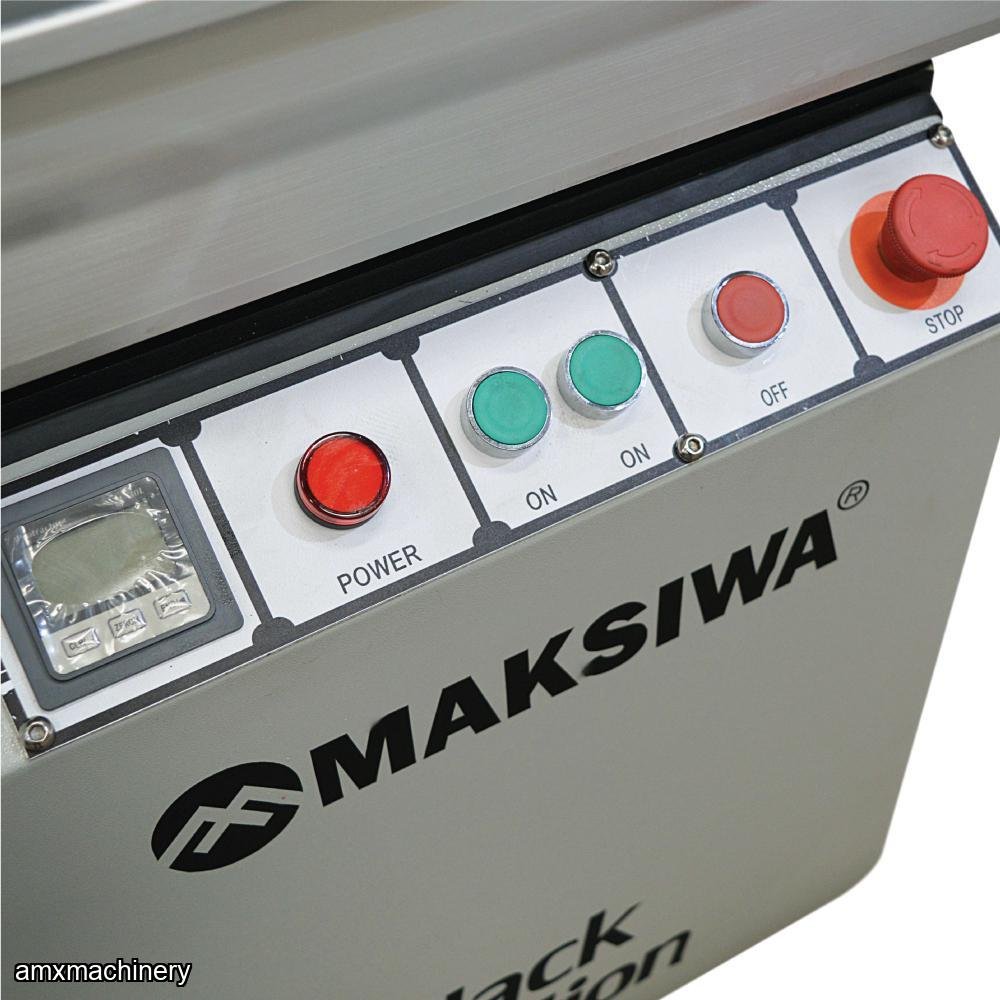

7) Digital control

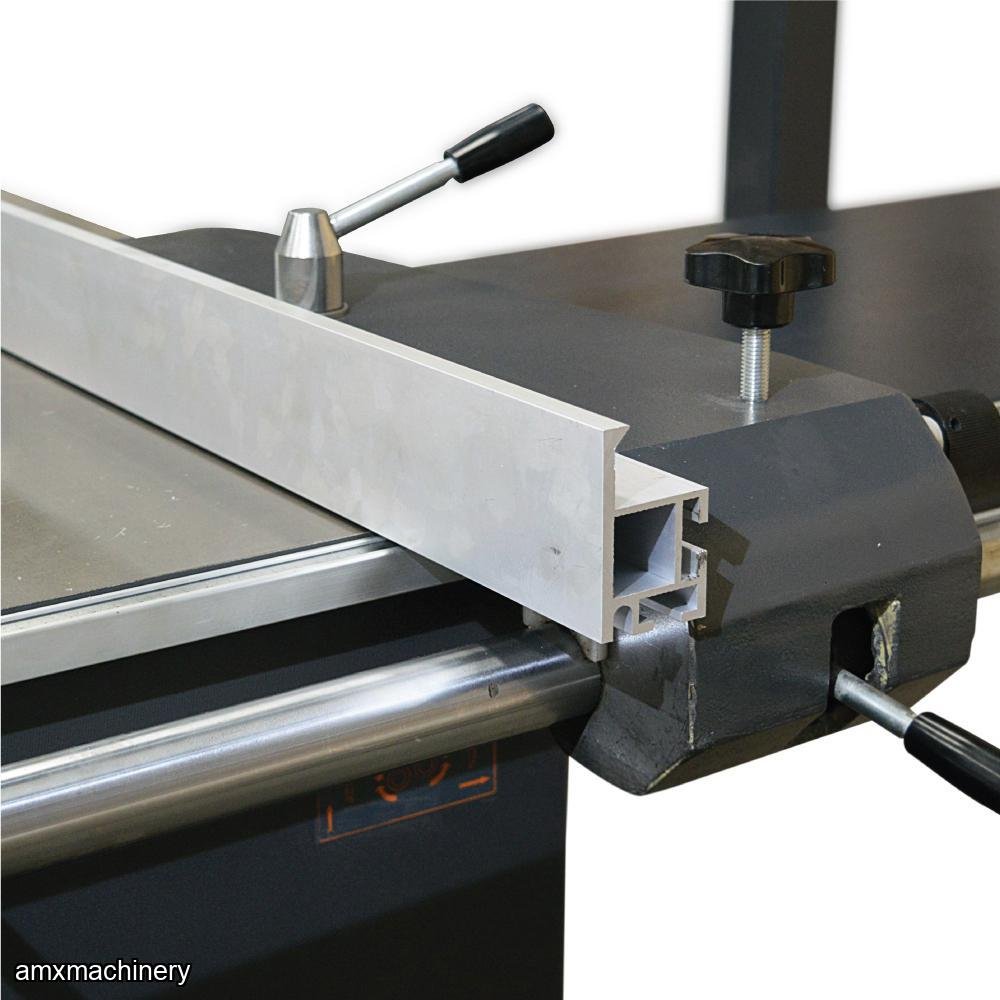

8) Aluminum guide
9) Sliding table guide
Specifications
General:
• Weight: 1,470 LBS
• Machine dimensions (closed): L 133” X W 135” X H 65’’
• Machine dimensions (max): L 192” X W 280” X H 65’’
• Sliding table dimension: 14 3/4” X 132”
• Sliding table max travel length: 280”
• Fixed table max width: 52”
• Guide size (closed): 71”
• Guide size (max): 128’’
• 1 Blade Cover

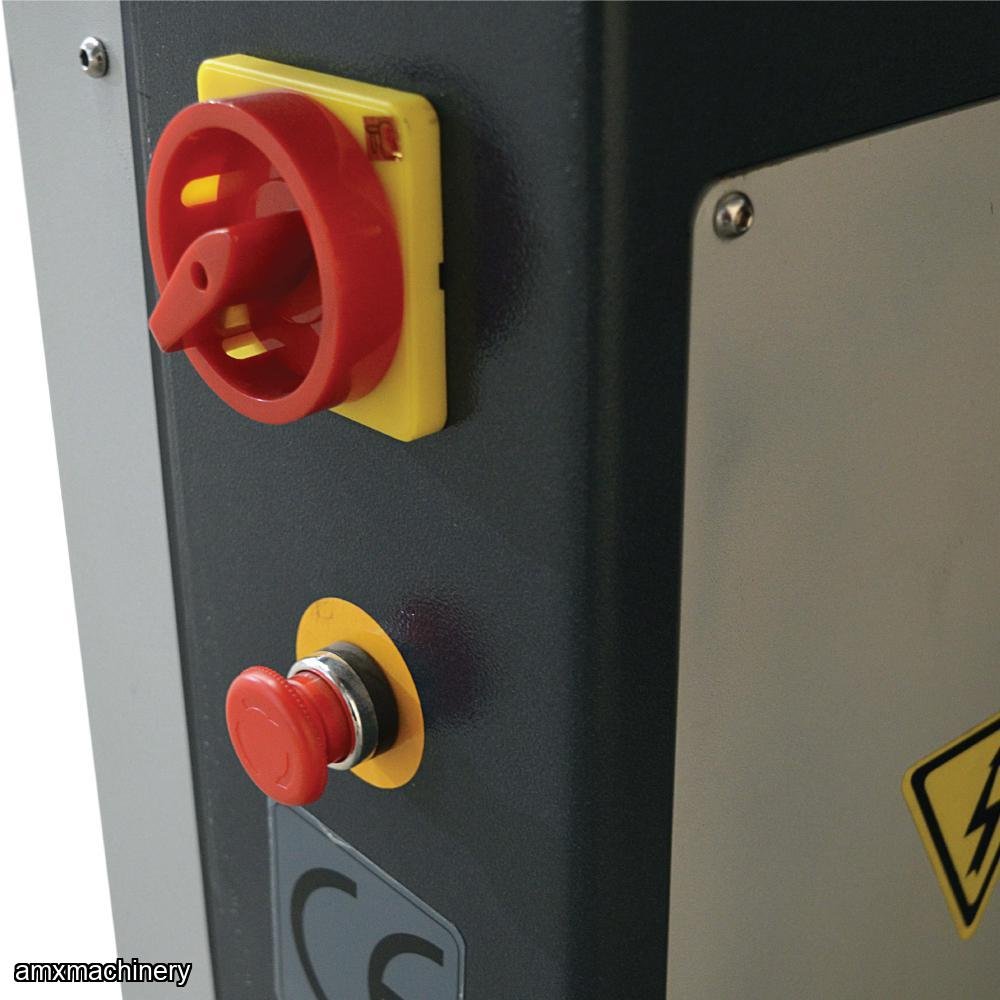

• 1 Lockable main power switch
• 2 Emergency buttons

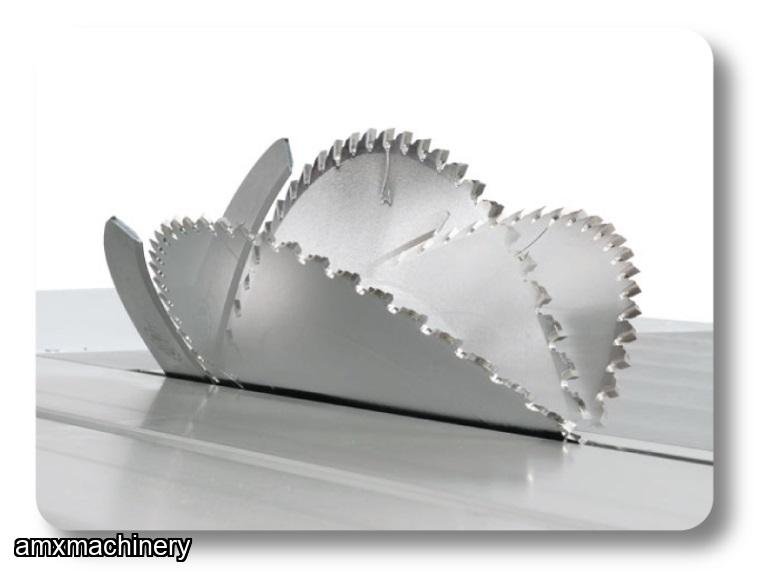

• Max tilt: 45°
• Max depth cut: 3“
• Max cutting length: 120”
Blade:
• Main blade diameter: 12”
• Main blade arbor size: 1”
• Scoring blade diameter: 4 ¾’’
• Scoring blade arbor size: 25/32”
Dust collector:
• Port 1 diameter: 4’’
• Port 2 diameter: 3’’
• Minimum CFM needed: 600 CFM
Electrical OPTIONS:
3 Phase Model 380 V:
Main motor:
• 10 Amps - 5 HP
• Non-loaded blade speed: 4,000 RPM
Scoring motor:
• 3/4 HP - 1.5 Amps
• Non-loaded scoring blade speed: 8,000 RPM
