Identificador: 1532
Abierta
Descripción

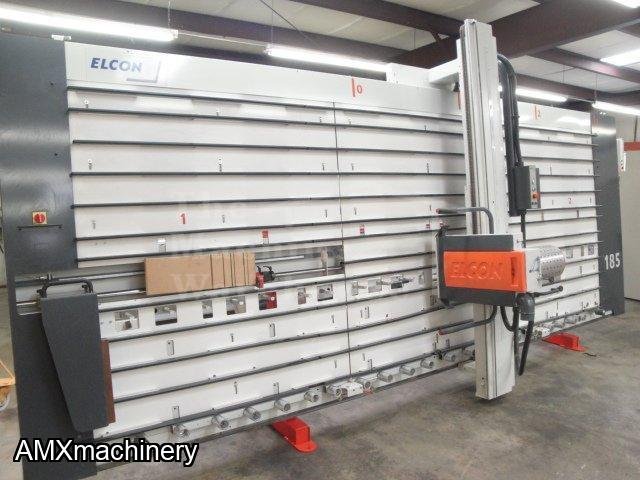

PARTE: 12310 - SIERRA ESCUADRADORA VERTICAL - ELCON
USADA - MUY BUENAS CONDICIONES
YMFG: 2005
Voltage: 230V 60Hz 3Ph
7-1/2 HP 4,200 RPM motor; 163" horizontal cutting capacity; 72" vertical cutting capacity; 12" blade capacity; SIKO digital readout with 2 meters (78.75") magnetic band installed for horizontal positioning of the saw head; rigid welded box steel frame with (4) vertical cutting positions; round upper guide rail with concave bearings for smooth operation; equipped with panel transport rollers at base; segmented midway fence that is the full length of the frame; panel support for cutting small pieces; double cut plunge scoring system with push button control on plunge handle; automatic moveable panel support grid; pneumatic plunge of saw head; saw head is counter balanced with chain and safety cable; pneumatic saw head lock; (2) pneumatic panel clamps; vertical cut stop with micro adjustment; programmable rail for predetermined horizontal cuts; repeat rip guide; both english and metric scales; built-in dust shroud with pipe ready for dust collection; requires 90 PSI; (1) 4-3/4" dust collection connection requiring 1,900 CFM. Electrical connection requires 22 Amps at 230V 3-Phase; Machine footprint is 214-1/2" long x 106" high x 63" deep; Machine weight is 1,907 lbs.
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PART: 1AM-1180-E – PALLET NOTCHER – 9” LENGHT – 40 INSERT KNIVE CUTTERHEAD - HEAVY DUTY
PART: 1AM-1180-E – PALLET NOTCHER – 9” LENGHT – 40 INSERT KNIVE CUTTERHEAD - HEAVY DUTYNew with warranty – 6-month warranty on manufacturing defects on mechanical parts onlyMotor 10 HP, 220/440V, 3 phase - connected to 220V
Maximum notcher size 9” length x 3” height x 3” depth400 to 800 notcher/hr. approximateCutterhead with insert replaceable tip knives cutters for new and recycled wood installedVideo: https://vimeo.com/533846659Optional: Motor 10 HP, 220V, 1 phaseFor more...
AMXmachinery
CASETA DE PINTURA
PARTE: 12007 – CASETA DE PINTURA – 245 CM FONDO X 307 CM ANCHO - SPRAY ZONE – 2 en existenciaNuevasModelo: SZ-IOP 8 SEMarca: Spray ZoneHechas en USADimensiones: 8 pies fondo x 10 pies ancho x 8 pies alto ( 245 cm fondo x 307 cm ancho x 245 cm alto)Paneles de 18 gaMotor: 2 HP, 220V, 3 fasesAbanico: 30” diámetro a 12,500 CFMFiltración:16 filtros de fibra de vidrio2 lamparas para tubos fluorescentes
AMXmachinery
ENLAZADORA DE CAJONES - DODDS
PARTE:
12369 - ENLAZADORA DE CAJONES - DODDS
MUY BUENAS CONDICIONES -
COMO NUEVABrand: DoddsModel: SE-1-25AFCondition: Very GoodYear: 2019Voltage: 220/1/Condition: Very GoodWith automatic feed of the cutter for dovetailing standard
English dovetails on one or two inch centerlines.Servomotors control the automatic feed with the consistency
and reliability of servo components.Simple operationSpindle movement controlled by servomotors.Touch screen operator interface.Servo controls for co...
AMXmachinery
CEPILLO DE 3 HP, CON CUCHILLAS DE 40 CMS
PARTE: 12405-2 - CEPILLO DE 3 HP,
CON CUCHILLAS DE 40 CMS
USADA - BUENAS CONDICIONES
220V, 3 FASES
