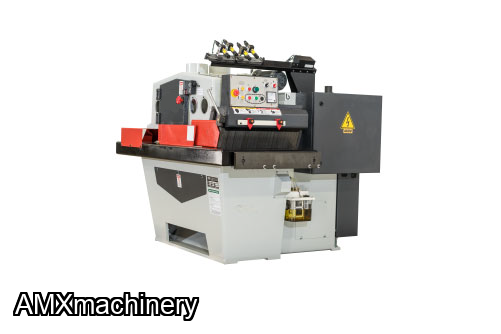

PARTE: 2NT-NT-MRS12N - SIERRA MULTIPLE - DIAMETRO DISCOS 12”
The NT MRS12N Multiple Rip Saw features a cast iron frame that houses a variable speed dip chain for premium rip capability. Often referred to as gang rip saws, this machine is fitted with closer fitting upper hold down rollers the MRS12N boasts the shortest part feeding on a multiple rip saw. The MRS12N uses 12″ diameter rip saw blades and can be equipped with power raise and lower, invertor speed control and non marking urethane feed chain for customer specific applications. The stable base paired with first class safety features provides industrial level ripping for softwood and hardwood lumber.
MAIN MOTOR HP: 40HP, 50HP, 60HP
VOLTAGE, FREQUENCY: 230/460 Volt
PHASE: 3 Phase
AMP REQUIREMENT: 50/100 Amps
FEED HP: 2 Hp.
FEED SYSTEM: Feed Chain
FEED SPEED RANGE: 30 - 125 FPM
VARIABLE FEED SPEED: Manual Variable Speed Clutch Adjustment
ELEVATION STYLE: Push Button
ELEVATION SYSTEM: Jack Screw / Linear Guides
TOTAL MACHINE HP: 42-1/4 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta
