Identificador: 1168
Abierta
Descripción

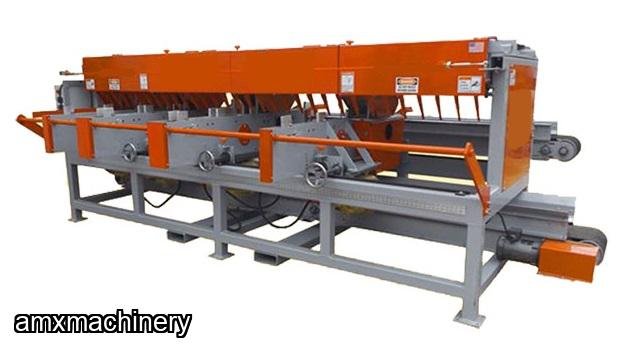

PARTE: 2FA-MET20 – SIERRA TRIMMER – 120" LARGO - MULTISIERRA
NUEVA CON GARANTIA
Standard Features
Low Profile
Heavy Duty Framing
Flat Waste & Catch Conveyors
Machine Specs
Dimensions
Length: 13′
Width: 72"
Height: 59"
Infeed Height: 41"
Width Including Conveyor: 100"
Power
Blade Motor: 5 HP 208/230/480/3/60 TEFC
lnfeed Motor: 1-1/2 HP 208/230/480/3/60 TEFC
Waste Conveyor Motor: 1/2 HP 208/230/480/3/60 TEFC
Take Away Conveyor Motor: 1/2 HP 208/230/480/3/60 TEFC
VFD: Variable Infeed Speed on Chain Feed
Completely Pre-Wired: Controls Mounted on Panel
Specifications
Blade: 20" Carbide Tipped
Adjustable Blade Position: Adjust Length of Cut with the Turn of a Handle
1-1/2" Arbors and Bearings
Feed Chain Size: 2060 Chain and Sprockets
Flat Waste Conveyor: 12" belt
Take-Away Conveyor: 12" Belt
Machine Specs
Capacities
Material Length: 120"
Material Width: 12"
Material Thickness: 4-1/2"
Cuts Per Minute: 0-60 Boards
Number of Heads: 3-8 Heads Available
Options
Machine Options
Blade Motor Upgrade: 10 HP Motors
Conveyor Option: Flat to Rise One Piece Waste Conveyor
Length Capacity: Extended Frame for Longer Lengths
Dust Collection: 4" Dust Ports
System Options
Unscramblers
Round Tables
Take-Away Rollcase
Package Decks
