Identificador: 410
Abierta
Descripción

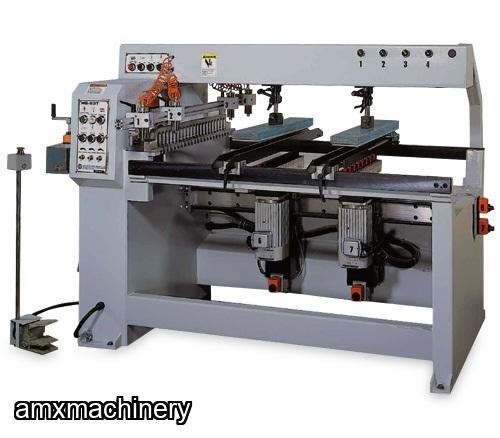

PARTE # 2TA-BR-2142B - TALADRO MULTIPLE DOBLE
The machine is standard designed and constructed for Horizontal and Vertical boring units.
Each 21 horrizontal and 42 vertical drills, drill head can be adjust to any degree position for X or Y axis combination construction drill.
The machine is easy to operate. Simply press the foot switch and entire horizontal and vertical boring operations can be accomplished quickly.
Vertical boring for drilling at longitudinal and cross direction
The vertical boring units can be adjusted up & down and right & left. Readouts are provided for accurate indication of adjustment.
The end horizontal-boring unit can be adjusted up & down, in & out stroke.
An emergency switch is provided on the top beam, allowing the operator to stop the machine conveniently.
The panel clamp is adjustable at any position.
Square slide way for vertical boring unit, providing maximum rigidity and stability for boning operations.
Specifications | M-LB-BR-2142B |
Max. Distance Between Centers | 1¼" (32 mm) |
Number of Spindle Per Boring Head | 21(Horizontal) 21 x 2 (Vertical) |
Max. Boring Depth | 3" (80 mm) |
Total Motor Power | 2 HP x 3 |
Spindle Speed | 2800 RPM |
Max. Distance Vertical Head | 43½" (1100 mm) |
N. W. | 1367 LBS (620 kg) |
G. W. | 1610 LBS (730 kg) |
Machine Size | 79" x 50" x 51" (2000 x 1260 x 1300 mm) |
Packing Size | 88" x 52" x 62" (2235 x 1320 x 1575 mm) |
