Description

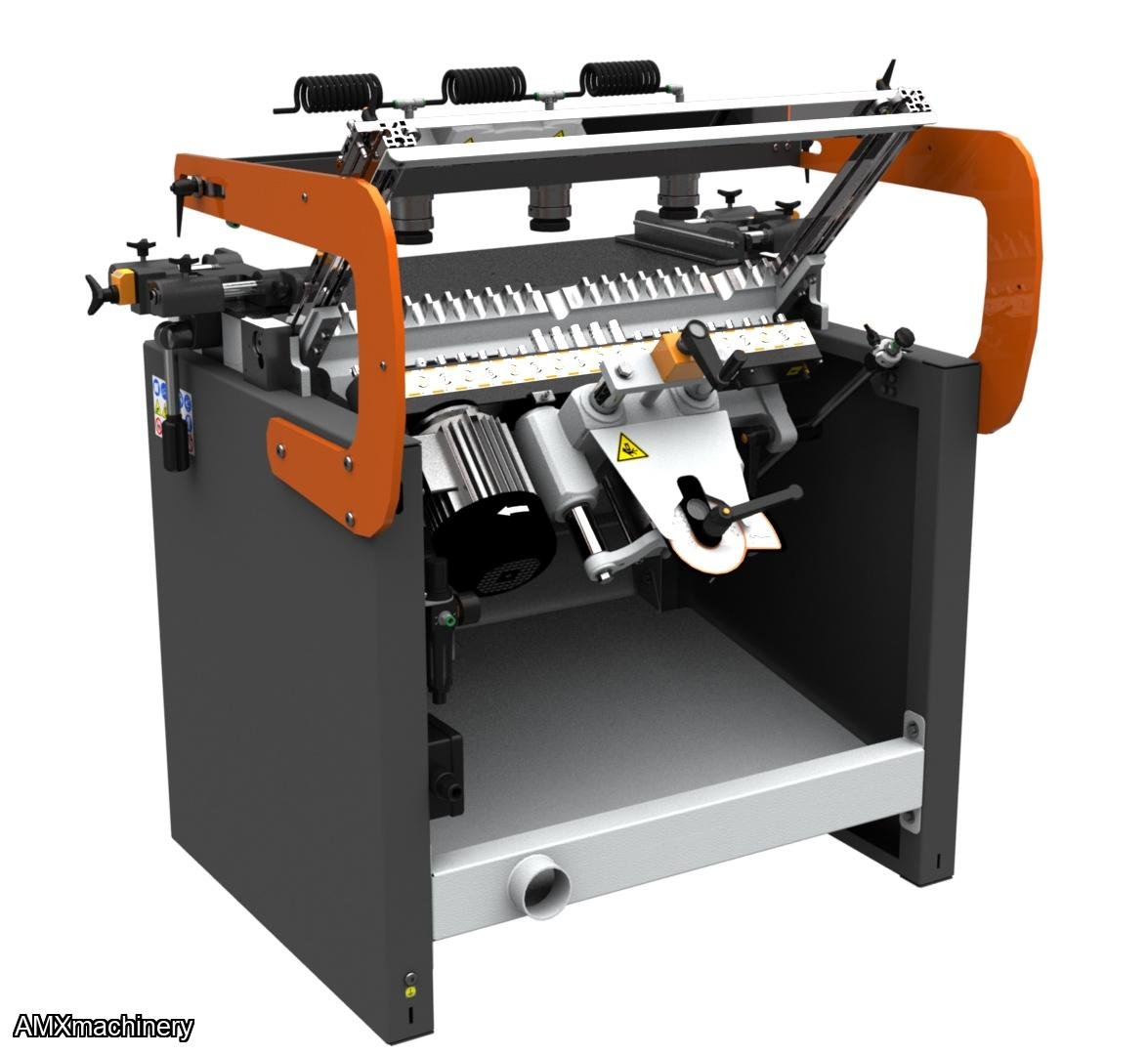

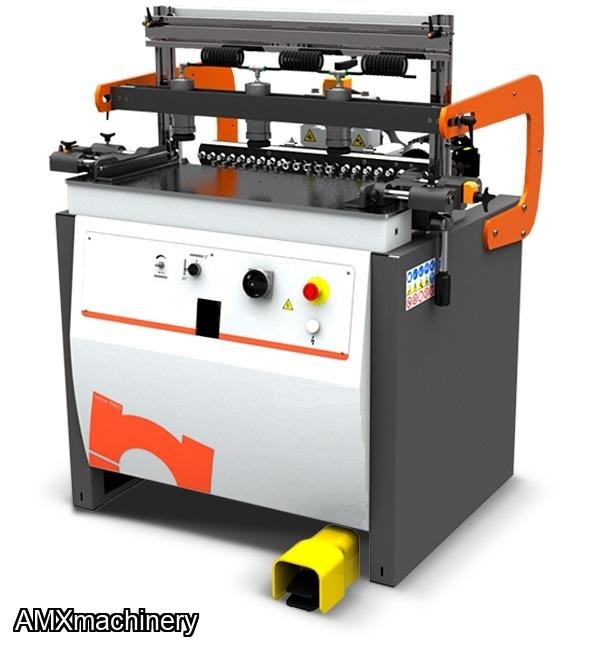

PARTE: EJG-MAG-SYSTEM23 - TALADRO MULTIPLE - SISTEMA 23
Provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.
Accurate positioning of the boring unit to the table with digital readout.
0 to 2.5" adjustable drilling depth with patented spiral setting device.
(2) patented quick release material clamps with auto-setting to firmly hold material to table.
Powerful 2 HP motor.
37" x 13" cast iron table.
Side fences with mechanical digital readout for quick and accurate setting.
120" line boring fence with (4) stops.
Foot actuated pneumatic clamps and drill cycle.
Includes: Magnetic Starter with overload protection and (23) quick change chucks.
Dust Outlet: 3"
Voltage: 230V 3-Phase
Net weight: 630 lbs.
Dimensions: 51.7" x 37.8" x 50" Tall.
Crated Dimensions: 42.2" x 37.4" x 40.5" Tall.
Crated Weight: 705 lbs.
For outside the continental United States, call for LTL Freight pricing at 919-776-8341.
