Descripción

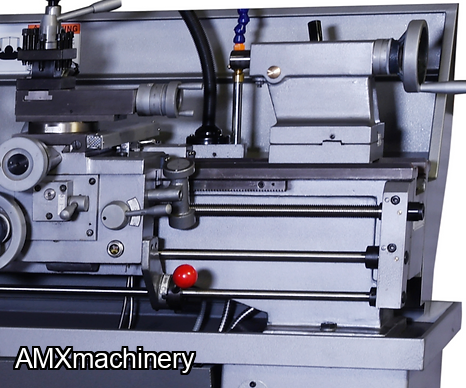

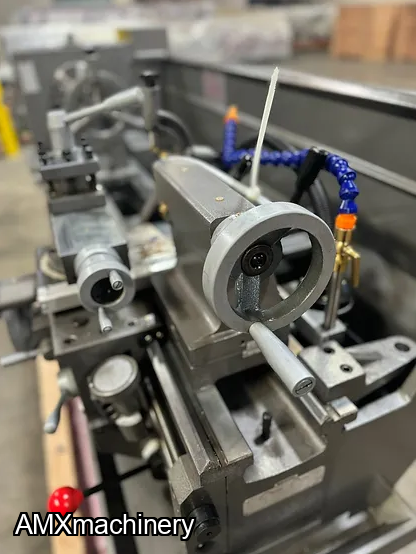

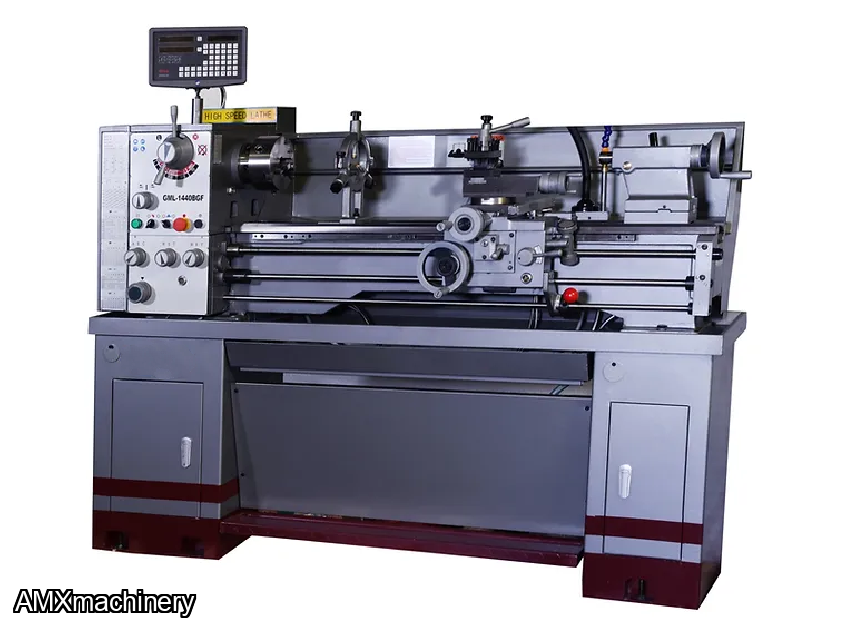

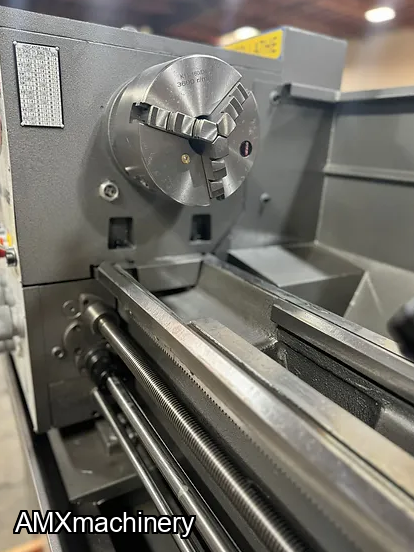

TORNO 14'' X 40'' PARTE: 2GM-1440BGF-3
- ISO 9001 certified
- Lifetime Tech Support by phone and video
- Full Geared-head precision Metal Lathe with foot brake
- Quick-change gearbox with fast and easy threading set up
- 3 HP heavy duty main motor runs on 220V Single-Phase power
- 1.5” Spindle bore
- Spindle Nose D1-4 Camlock
- Heavy Duty guideway; 7.5” width
- 8 spindle speeds ranging from 70-2,000 RPM
- 56 kinds of imperial threads
- 44 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Comes equipped with:
- SINO (DRO) Digital Readout - Installed
- Taper Attachment - Installed
- 6” 3-Jaw Chuck with reversible jaws
- 8” 4-Jaw Chuck with reversible jaws
- 10” Face Plate
- 3.75” Large Steady Rest
- 2” Follow Rest
- Foot Brake
- Coolant System
- Metal Stand with 2 Cabinets
- Halogen work lamp
- 4-Way Tool Post
- Full Length Splash Guard
- 2 – Dead Centers
- 1 – Reducing Sleeve
- 1 – Thread Chasing Dial
- 1 – Tool Box with maintenance tools
L A T H E C A P A C I T Y | |
Max. Swing Over Bed | 14” |
Max. length of workpiece | 40” |
Max. length of cutting | 34” |
Max. Swing Over Cross Slide | 8.25” |
Center Height | 7” |
Distance between centers | 40” |
Bed Width | 7.5” |
Bed Length |
|
S P I N D L E | |
Spindle Nose | D1-4 Camlock |
Spindle Bore | 1.5” |
Spindle Taper Nose | MT5 (Morse Taper #5) |
