Descripción
PARTE: 2CK-AF19N

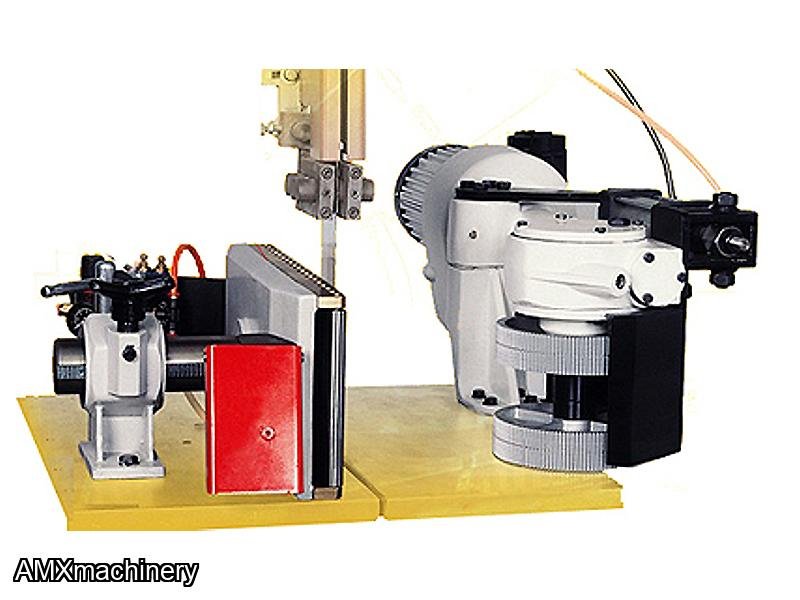

Is designed to allow consistent and automated feeding of material through vertical bandsaw or resaws. Is pneumatically actuated by a switch in the fence so no foot pedal is required making for a simple and convenient operation. With 10 feed speeds to choose from you can dial in the optimum feed speed for your material. Intended to be fit on bandsaws which are over 24” but could be fitted on smaller bandsaw tables, but may require an extension off the side of your bandsaw table where the feeder is mounted.
- Consistent feeding for bandsaws and resaws
- Pneumatic activation of feeding unit, no foot pedal required
- 10 feed speeds for optimum control
- Line bar roller fence is easily adjusted by rack and pinion handle
- Comes with (2) adjustable steel serrated rollers
- Can be mounted to almost any bandsaw/resaw (recommended for 24” and up)
KEY ADVANTAGES
- Heavy duty construction
- Adjustable feed wheels to accommodate for the height of your material
- Roller fence aids in feeding of material
|
|
INCH |
METRIC |
|
Feed Speeds (10) |
4/8.5/8.5/14/17/25/28/30/50/60 FPM |
1.5/2.5/2.5/4/5/7.5/8/9/15/18 M/min |
|
Roller size |
Φ6-7/8”x 1-9/16″ x 2 pcs / Cast Steel |
Φ175 x 40 mm x 2 pcs |
|
Motor |
1/2 HP (0.375 KW), 3 phase; Forward |
1/2 HP |
|
Maximum roller stroke |
8” |
200mm |
|
Fence dimensions |
16” x 7 7/8” |
400 x 200mm |
|
Max. Roller-Blade Clearance |
8 1/4” |
210mm |
|
Net Weight |
79 Kg |
176 Lbs |
|
Gross Weight |
97 Kg |
209 Lbs |
|
Packing Size |
1220 x 480 x 470mm |
48″ x 18-7/8″ x 18-1/2″ |
