Descripción
PARTE: 2CK-GT760ARD

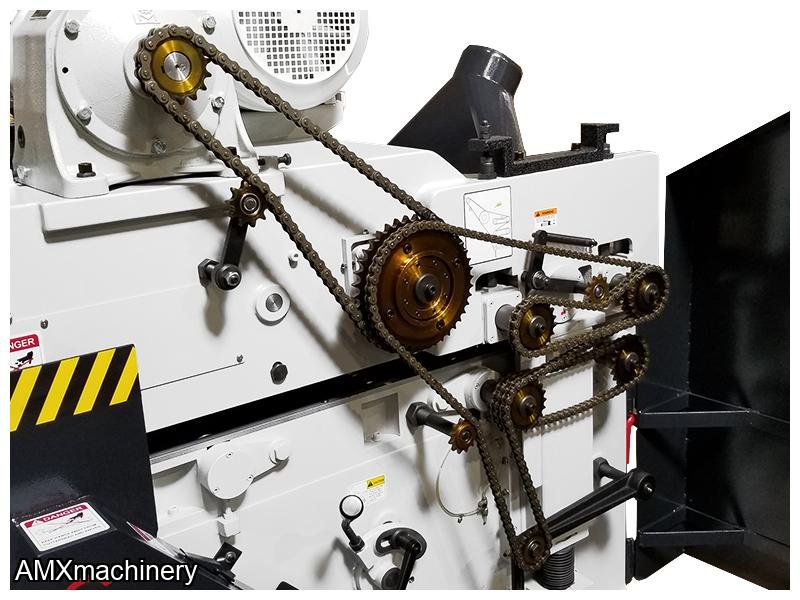

Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
- Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
- Heavy-duty cast-iron machine body and table for vibration free cutting
KEY ADVANTAGES

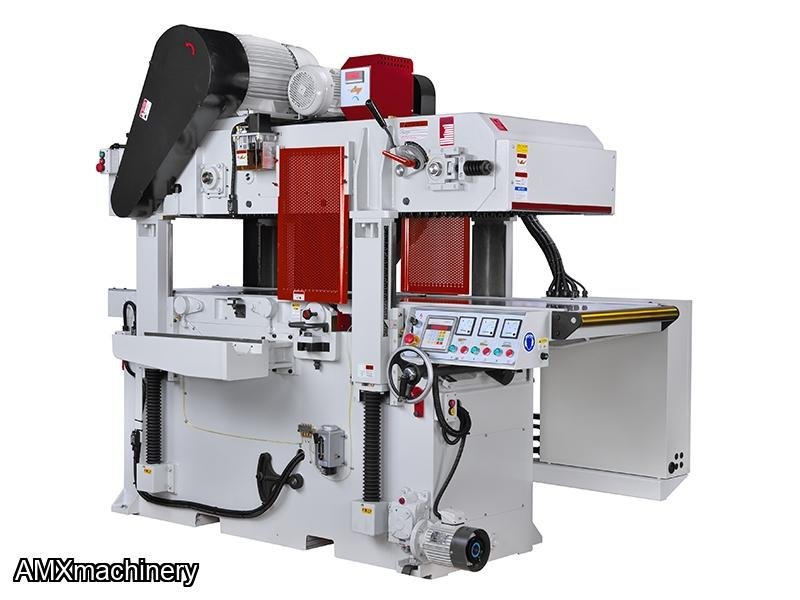

- 30″ wide x 8″ thickness capacity (optional 16” & 20” opening)
- Cutterheads are spiral insert type with six (6) rows of carbide inserts
- (2) driven and (1) idle bed roll for superior feeding of even difficult material
- Digital electronic thickness adjustment in INCH and MM (Inch is to 0.001” resolution) for precise thickness control

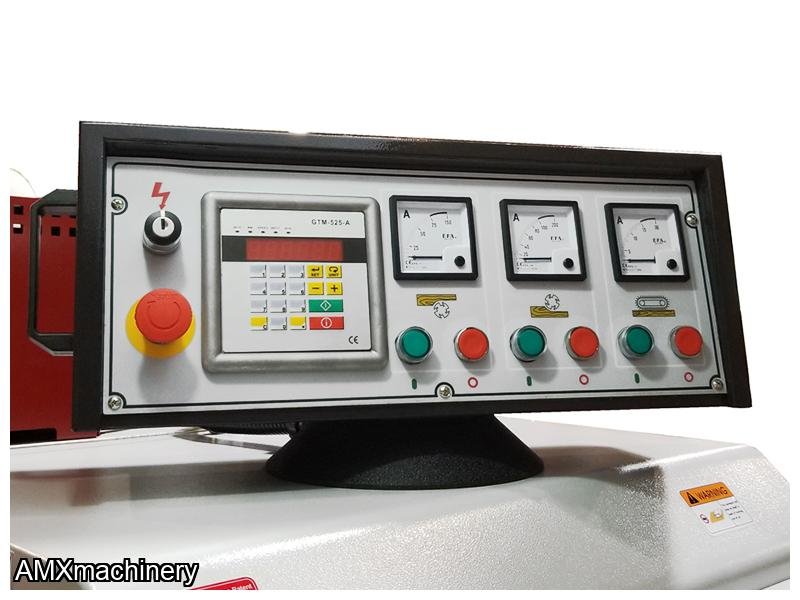

- Swiveling control panel for more ergonomic access to machine controls

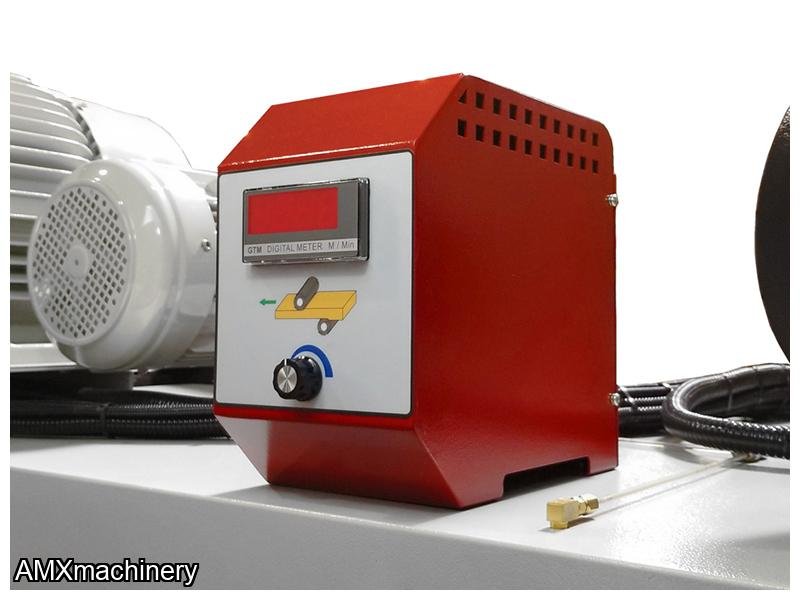

- Inverter variable speed control with feed speeds from 26 to 79 FPM

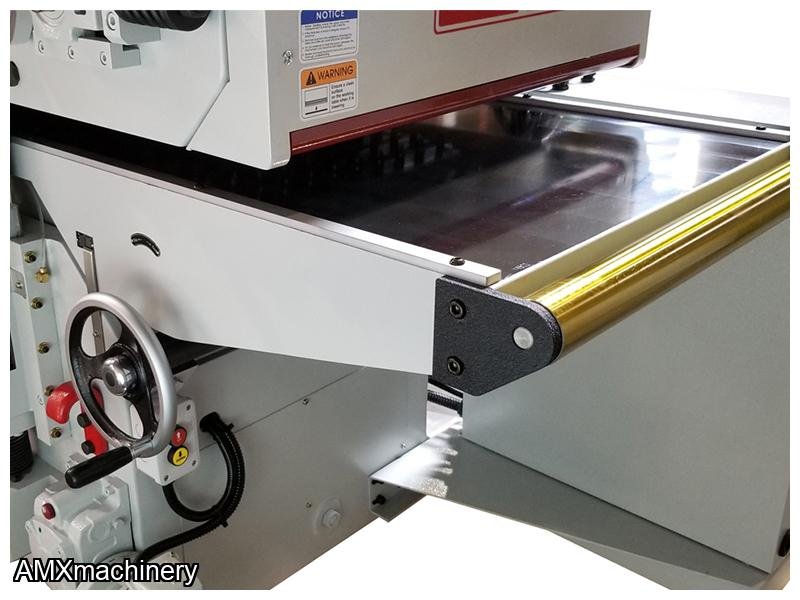

- Easy to access external handwheel adjustment of infeed bed
- Hard chromed worktable for high wear resistance

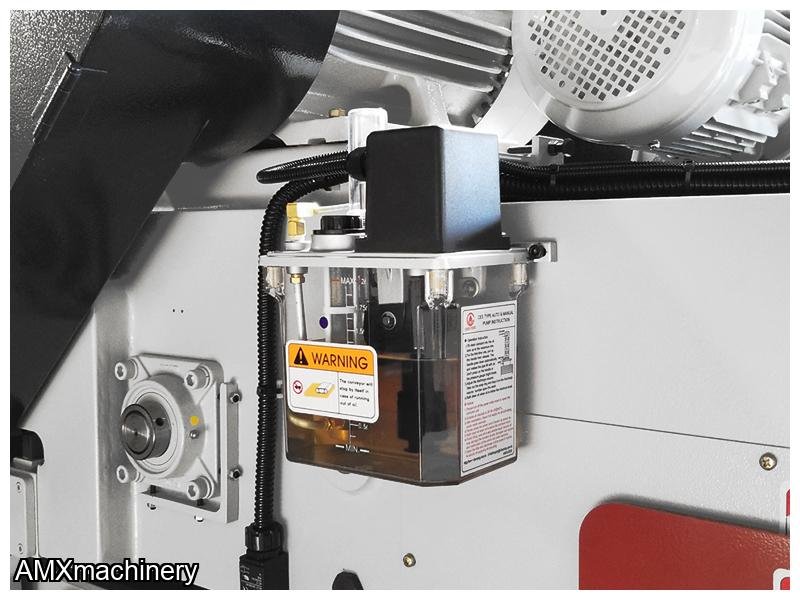

- Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways

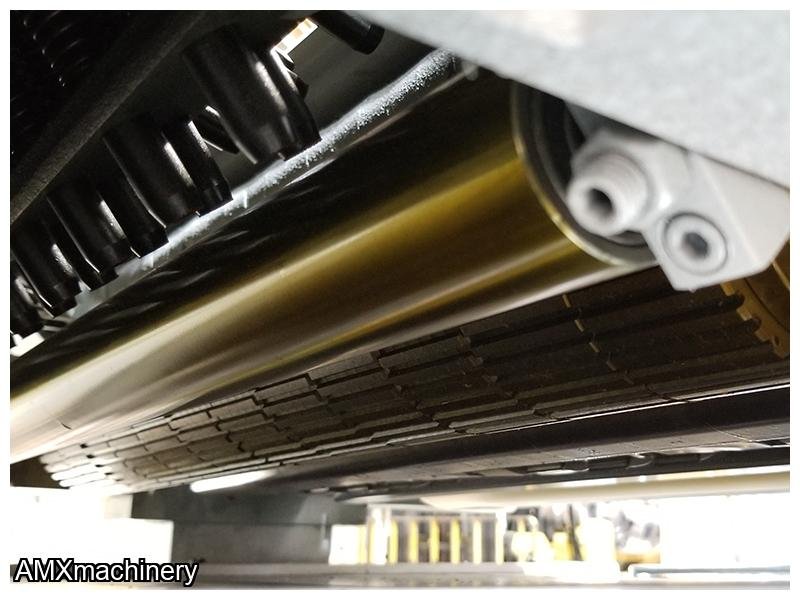

- Section chipbreaker and sectional feed roller before top cutterhead
- Rubber outfeed top roller to prevent chip marking
- Over thickness safety shut-off bar across infeed.
- Ammeter for each motor on control panel to monitor motor load
|
Max. working width |
30″ |
|
Max. working thickness |
8″ (16″, 20″ optional) |
|
Min. working thickness |
0.4” |
|
Min. workpiece length |
12.2″ |
|
Bottom head motor |
20 HP |
|
Top planing head motor |
25 HP (30 HP optional) |
|
Feed motor |
5 HP |
|
Table elevation motor |
1 HP |
|
Cutterhead diameter |
4” |
|
Knife dimensions |
30mmx12mmx1.5mm (114 pcs per head) |
|
Cutterhead speed |
5000 RPM |
|
Feed speed (variable) |
26-79 FPM |
|
Dust ports |
(2) 6” |
|
Machine dimensions (LxWxH) |
107″ x 55″ x 75.6″ |
|
Machine weight |
7040 lbs |
