Descripción
PARTE: 2CK-GT760ARD
Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
- Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
- Heavy-duty cast-iron machine body and table for vibration free cutting
KEY ADVANTAGES
- 30″ wide x 8″ thickness capacity (optional 16” & 20” opening)
- Cutterheads are spiral insert type with six (6) rows of carbide inserts
- (2) driven and (1) idle bed roll for superior feeding of even difficult material
- Digital electronic thickness adjustment in INCH and MM (Inch is to 0.001” resolution) for precise thickness control
- Swiveling control panel for more ergonomic access to machine controls
- Inverter variable speed control with feed speeds from 26 to 79 FPM
- Easy to access external handwheel adjustment of infeed bed
- Hard chromed worktable for high wear resistance
- Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
- Section chipbreaker and sectional feed roller before top cutterhead
- Rubber outfeed top roller to prevent chip marking
- Over thickness safety shut-off bar across infeed.
- Ammeter for each motor on control panel to monitor motor load
|
Max. working width |
30″ |
|
Max. working thickness |
8″ (16″, 20″ optional) |
|
Min. working thickness |
0.4” |
|
Min. workpiece length |
12.2″ |
|
Bottom head motor |
20 HP |
|
Top planing head motor |
25 HP (30 HP optional) |
|
Feed motor |
5 HP |
|
Table elevation motor |
1 HP |
|
Cutterhead diameter |
4” |
|
Knife dimensions |
30mmx12mmx1.5mm (114 pcs per head) |
|
Cutterhead speed |
5000 RPM |
|
Feed speed (variable) |
26-79 FPM |
|
Dust ports |
(2) 6” |
|
Machine dimensions (LxWxH) |
107″ x 55″ x 75.6″ |
|
Machine weight |
7040 lbs |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
CORTADORA 4 PIES
CORTADORA 4 PIES PARTE: 2GM-EPS-0412M-1PHShop our 4 foot mechanical shears that are capable of cutting up to 12 gauge mild steel and 16 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop. ISO 9001 certifiedAmerican design and Taiwan quality machineHD all steel construction for maximum rigidityPrecision driven gearboxFull length 30 strokes per minute60” long squaring ...
-500x500.jpg)
AMXmachinery1

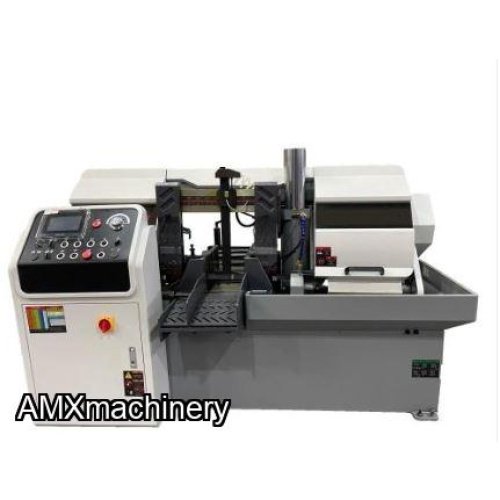

PARTE: 3AM-H-330H - SIERRA CINTA PARA METAL - CONFIGURACION ALTA
