Identificador: 116
Abierta
Descripción
PARTE: 2EX-DCY-1215 – COLECTOR PARA EXTERIORES – MOTOR 15 HP – 7600 CFM
PARTE: 2EX-DCY-1220 – COLECTOR PARA EXTERIORES – MOTOR 20 HP – 8800 CFM
PARTE: 2EX-DCY-1425 – COLECTOR PARA EXTERIORES – MOTOR 25 HP – 10500 CFM
Nuevos con garantia
Caracteristicas:

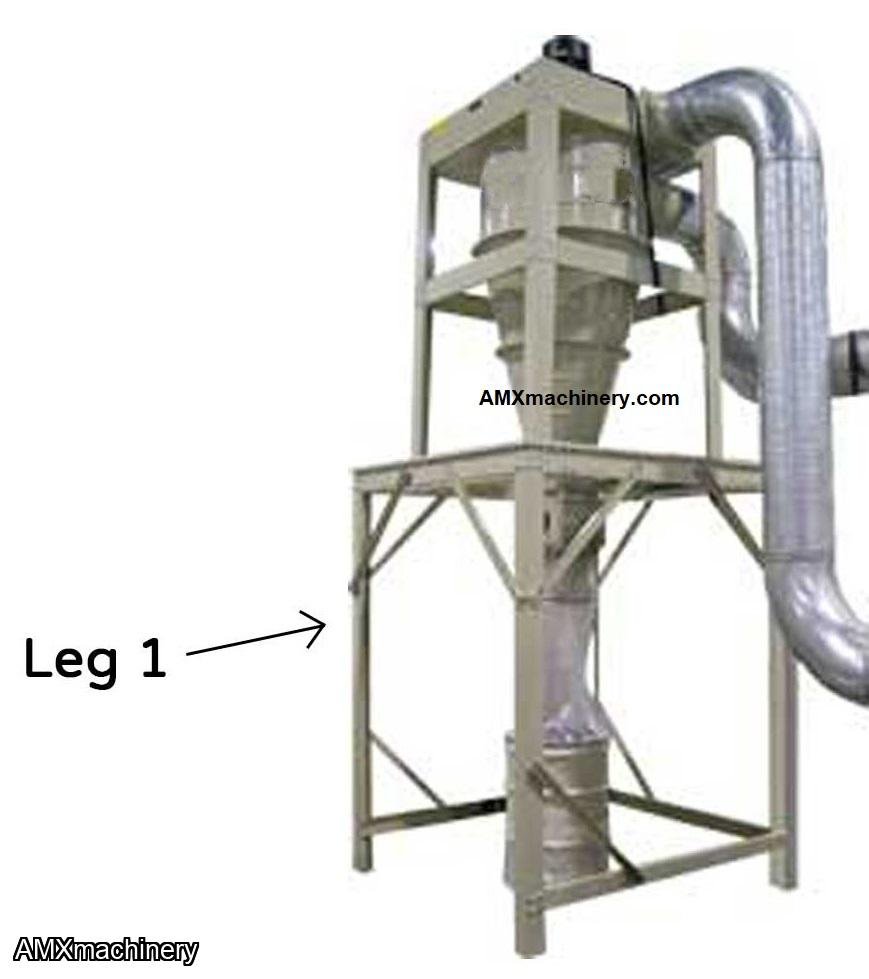

Powered unit with rotary airlock and multiple stand configurations to accommodate a variety of height and dumpster dimensions.
This series requires no bagging because all waste dumps from the rotary air lock, and there is no need to power down the unit while cleaning up waste.
Electronic controls must be protected from weather.
See comparison chart below for specifications.
2EX-DCY-1215 | 2EX-DCY-1220 | 2EX-DCY-1425 | |
|---|---|---|---|
Horsepower | 15 HP | 20 HP | 25 HP |

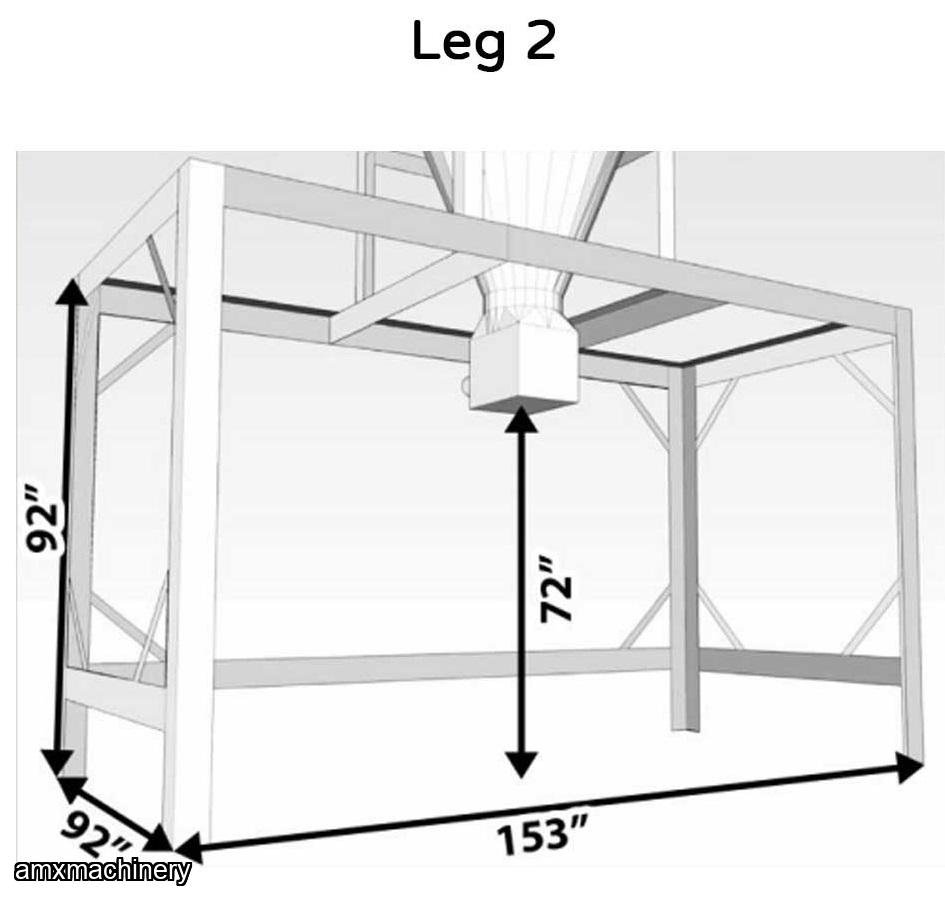

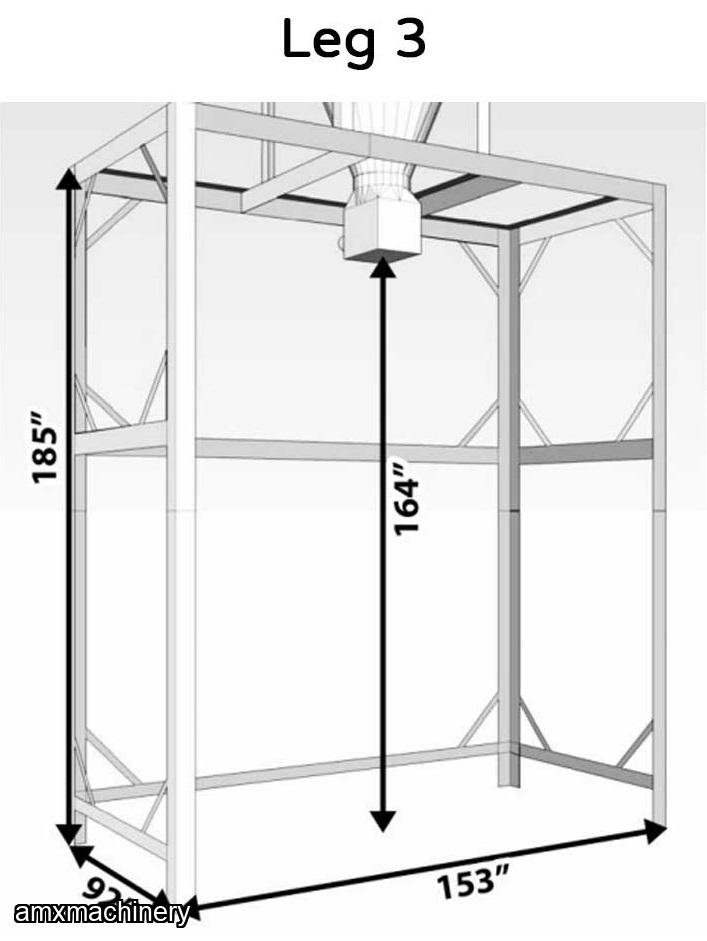

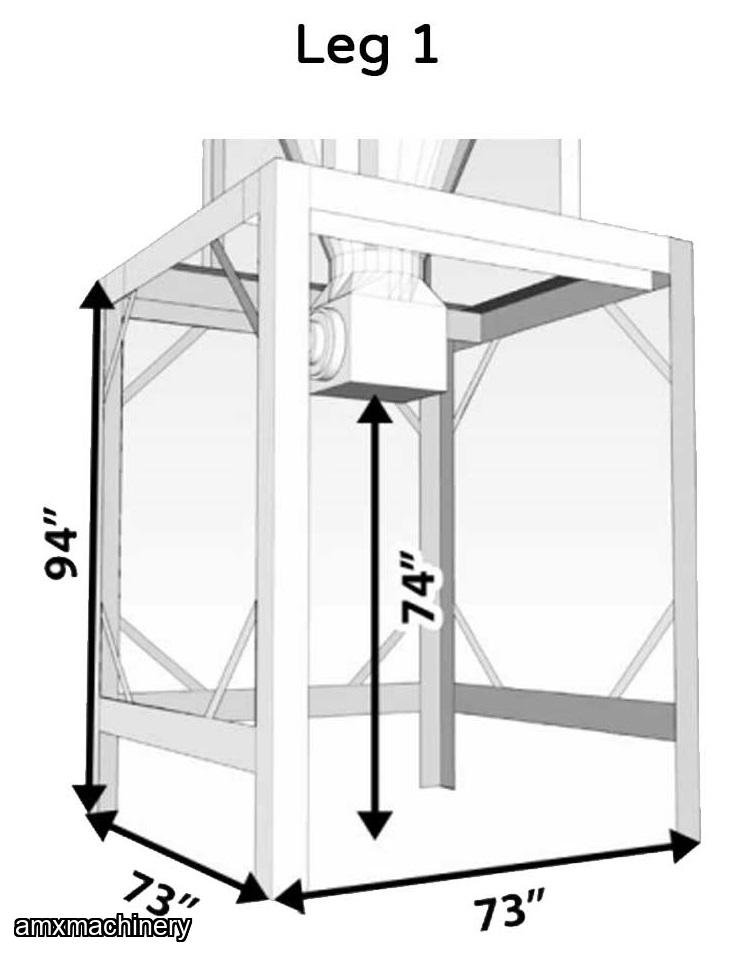

Standard Leg Set | L1 | L2/L3 | L2/L3 |
CFM | 7600 | 8800 | 10500 |
Amps @ Voltage | 37A @ 230V | 49A @ 230V | 62A @ 230V |
Dimensions | 16'-3" x 73.25" x 73.25" | 23'-11" x 153.5" x 98.5" | 25'-1" x 153.5" x 98.5" |
Opening Dimensions | 74" x 69" x 72" | 164" x 149" x 91" | 164" x 149" x 91" |
Inlet Size | 14" | 16" | 18" |
Outlet Size | 16" | 18" | 20" |
Rotary Airlock HP | 1/4 HP | 1/4 HP | 1/4 HP |
Chip Dumping Capacity | 10 CFM | 10 CFM | 10 CFM |
Drop Size | 8" x 12" | 8" x 12" | 8" x 12" |
Soft Start | Yes | Yes | Yes |
Weight | 2000 lbs | 2500 lbs | 2850 lbs |
