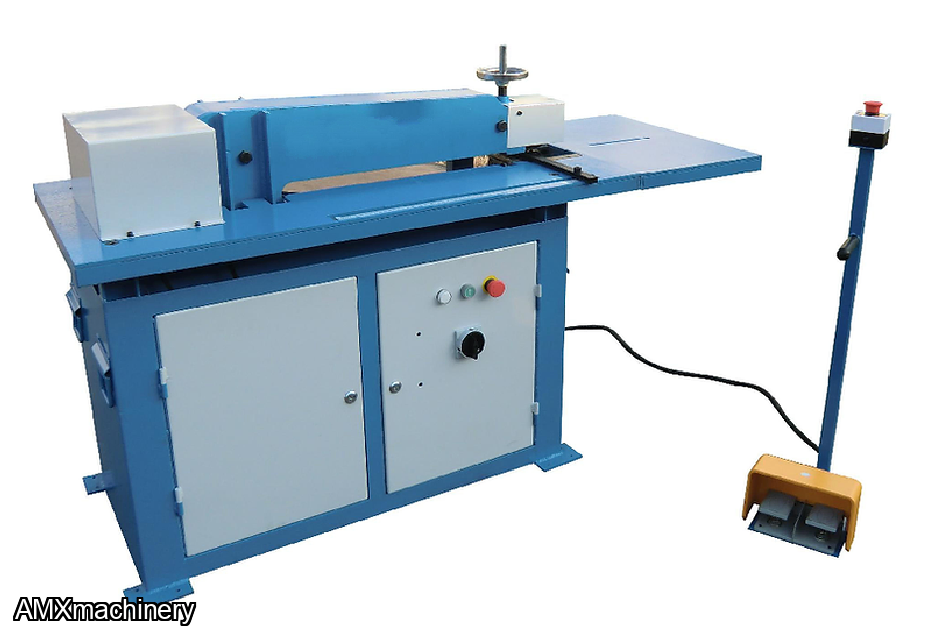

CORTADORA DE CHAPA 10 GA X 47'' PARTE: 2GM-PS-16
Our multi-functional metal slitter can shear, and bead sheet metal. Suitable for cutting up to 16 gauge mild steel by 47 inch material. This robust metal slitter comes equipped with a 2HP motor, slitting dies, a quick change back gauge, and a convenient foot pedal for safety and easy operation. The slitter sits on a heavy duty cabinet stand which can balance the weight of the machine well with no wobble.
- ISO 9001 certified
- 2HP Heavy Duty AC main motor, 220V
- Heavy welded all steel construction
- Standard heavy duty cabinet stand
- Heat treated slitting rolls
- Quick adjusting back gauge
- Built in easy to read scale
- Removable food pedal with E-stop
- 1 Set of Slitting dies (pre-installed)
- 35" Steel Cabinet Stand
- Quick change back gauge
Max. Capacity: Mild Steel | 16Ga. |
| Max. Slitting Width | 47" |
| Min. Slitting Width | 1.25" |
Throat Depth Cutting Circle Diameter | 4" - 24" 13" to 30" |
| Feeding Speed | 16 FPM |
| Main Motor | 2 HP, 220V or 440V, 3 Phase |
| Net Weight | 668 lbs. |
| Machine Dimensions LxWxH | 53" x 30" x 45" |
