Descripción

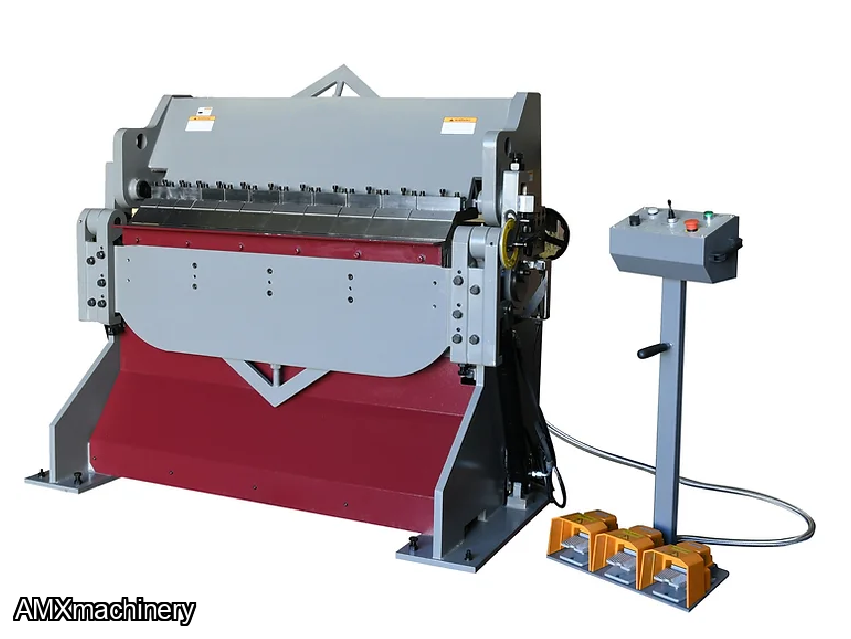

CORTADORA DE METAL Y FRENO HIDRAULICO 4 PIES PARTE: 2GM-HBB-0410
Our 4 FT Sheet Metal Hydraulic Box and Pan Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
- Total pieces fingers assortment:
- 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- Assorted fingers
- 26” manual back gauge with one side handwheel operation
- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mode
Max Bending Length: | 4’ |
Bending Capacity: Mild Steel - HRS (tensile 60K PSI) Stainless Steel (tensile 85K PSI) Soft Aluminum (tensile 28K PSI) Minimum material thickness
|
10 Ga. 12 Ga. 1/4" 26Ga
|
Opening hem max thickness Closing hem max thickness | 16Ga x 4' 20Ga x 4' |
Bend Degree: | 135 Degrees |
