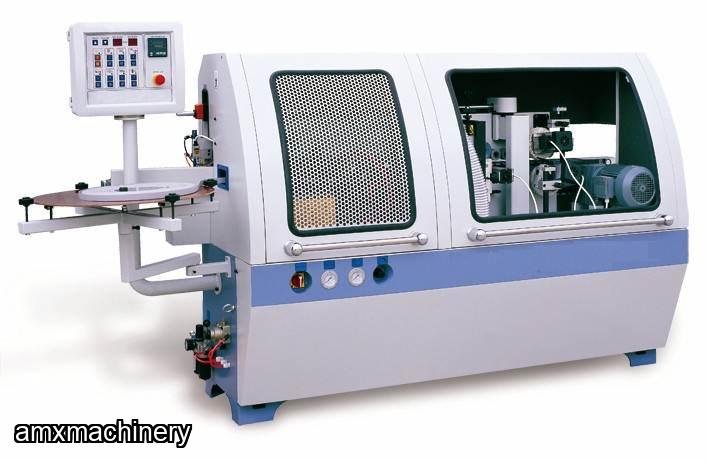

PARTE # 2TA-EB-3B - ENCHAPADORA DE CANTOS RECTOS
PARTE # 2TA-EB-4B - ENCHAPADORA DE CANTOS RECTOS
PARTE # 2TA-EB-5B - ENCHAPADORA DE CANTOS RECTOS
PARTE # 2TA-EB-6B - ENCHAPADORA DE CANTOS RECTOS
- Automatic feed station for: Gluing, Pneumatic Guillotine, Double End Trimming, Top & Bottom Edge Trimming, Edge Polishing.
- The feed of edging material, by ** strip ** or coil is automatic and synchronously with panel feed.
- Total enclosure covers with dust hood connector.
- Heavy and rigid construction to ensure necessary accuracy and stability.
- To guarantee straight-line feed of the panel, a double row of rubber toothed rollers is off centered onto top pressure beam and bottom feed track with rubber calibrated pads is running on cylindrical guide.
- The top pressure beam is supported with two reinforced columns are equipped with visible linkages for thickness adjustment.
- Extension rollers support for wider panels.
- The electric and pneumatic system is incorporated in the built-in control cabinets.
- Side Pressure Unit: Standard with one row of vertical rollers for straight edges.
- Gluing Unit: With the use of hot melt glue applied on straight Panel for edges banding.
- End Cutting Unit: Pneumatic guillotine application for cutting end of band material
- Double End Trimming Unit: Application for fine trimming front & rear edge by saw blade with two independent motors
- Edge Trimming Unit: This top and bottom edge trimming unit is complete by cutter head with two independent motors
- Polishing Unit: Apply the finest finish surfacing process on top and bottom edge.
SPECIFICATIONS | EB-3B | EB-4B | EB-5B | EB-6B |
| PVC Film Band Thickness | 0.4 ~ 3 MM | 0.4 ~ 3 MM | 0.4 ~ 3 MM | 0.4 ~ 3 MM |
| Wood Strip Band Thickness | ~ | Max. 3 MM | Max. 8 MM | Max. 8 MM |
| Work Piece Thickness | 10 ~ 50 MM | 10 ~ 50 MM | 10 ~ 50 MM | 10 ~ 50 MM |
| Work Piece Min. Length | 6.3" | 6.3" | 6.3" | 6.3" |
| Work Piece Min. Width | 3.5" | 3.5" | 3.15" | 3.15" |
| Edge Band Feed Motor | 0.025 KW | 0.025 KW | 0.025 KW | 0.025 KW |
| Gluing Motor | 0.75 KW | 0.75 KW | 0.75 KW | 0.75 KW |
| End Trimming Speed | ` | 12000 RPM | 12000 RPM | 12000 RPM |
| End Trimming Motor | ` | 0.35 KW | 0.35 KW x 2 | 0.50 KW x 2 |
| Rough Edge Trimming Speed | ~ | ~ | ~ | 12000 RPM |
| Rough Edge Trimming Motor | ~ | ~ | ~ | 1.1 KW x 2 |
| Scraping Unit | ~ | ~ | Top & Bottom | Top & Bottom |
| Fine Edge Trimming Speed | 12000 RPM | 12000 RPM | 12000 RPM | 12000 RPM |
| Fine Edge Trimming Motor | 0.7 KW x 2 | 0.7 KW x 2 | 0.7 KW x 2 | 0.7 KW x 2 |
| Polish Wheel Speed | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM |
| Polish Motor | 0.18 KW x 2 | 0.18 KW x 2 | 0.18 KW x 2 | 0.18 KW x 2 |
| Feed Speed | 1 ~ 40 FPM | 0 ~ 49 FPM | 0 ~ 49 FPM | 0 ~ 49 FPM |
| Feed Motor | 1.5 KW | 1.5 KW | 1.5 KW | 1.5 KW |
| Heating Glue Tank Power | 2.3 KW | 2.3 KW | 2.3 KW | 2.3 KW |
| Heating Element Power | 0.12 KW | 0.12 KW | 0.12 KW | 0.12 KW |
| Total Power | 6.43 KW | 7.43 KW | 7.43 KW | 9.63 KW |
| Machine Size (L x W x H) | 112" x 49" x 61" | 152" x 49" x 61" | 164" x 49" x 61" | 176" x 49" x 61" |
| Net Weight | 1600 LBS | 2500 LBS | 2900 LBS | 3500 LBS |
