Identificador: 1631
Abierta
Descripción

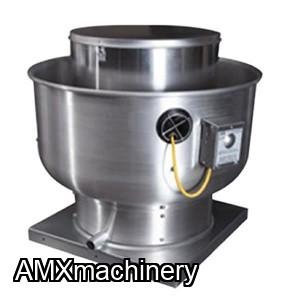

PARTE: 1AM - EXTRACTOR CENTRIFUGO - COCINA INDUSTRIAL
Extractor centrifugo para montaje en techo con salida vertical para campanas de cocina. Fabricado en aluminio, resistente a la intemperie soportando aire contaminado con grasa con turbinas de curvas atrasadas.
Extractor centrifugo para montaje en techo con salida vertical para campanas de cocina. Fabricado en aluminio, resistente a la intemperie soportando aire contaminado con grasa con turbinas de curvas atrasadas.
Características:
– Acoplamiento de motores desde 1/2 HP hasta 5 HP.
– Caudales en descarga libre desde 4,450 hasta 12,450 CFM.
Usos:
– Extracción de campanas de cocina con recolección de grasa.
– Capaz de soportar instalaciones largas de ductería.
|
Modelo
|
Potencia
HP |
Vol.max a 0.0”C.A.
PCM MC/HR |
|
|
CT-9 |
1/8 |
1,005 |
1,708 |
|
CT-12 |
1/4 |
1.500 |
2,548 |
|
CT-14 |
1/2 3/4 1 1 1/2 |
3,100 3,600 3,900 4,200 |
5,266 6,116 6,625 7,134 |
|
CT-18 |
1/2 3/4 1 1 1/2 2 |
4,200 4,950 5,450 6,325 6,700 |
7,135 8,410 9,259 10,746 11,383 |
|
CT-24 |
1/2 3/4 1 1 1/2 2 3 5 |
4,750 5,500 6,000 6,750 7,500 8,500 10,100 |
8,070 9,344 10,194 11,468 12,742 14,441 17,160 |
|
CT-30 |
3/4 1 1 1/2 2 3 5 |
6,500 7,250 8,400 9,200 10,500 12,500 |
11,043 12,317 14,271 15,630 17,839 21,237 |
