Description
FRENO PARA DOBLADORA DE METAL PARYE: 2GM-SB-1014
- ISO 9002 certified
- Large 3” beam opening, adjustable
- 1” beam adjustment (front and back)
- Stop rods for repeat bends
- (2) counter weights
- All steel heavy body construction with extra heavy tie rod for minimum deflection
Bending Capacity: Mild Steel | 14 Ga. |
| Bending Capacity: Stainless Steel | 18 Ga. |
| Bending Length Capacity | 10' |
| Bending Angle Degree | 0-135° |
| Beam adjustment, front and back | 1" |
| Minimum reverse bend | 5/16" |
| Manual clamping | Standard |
| Beam opening | 3" |
Net weight Shipping weight | 3,250 lbs. 3,350 lbs. |
Machine Dimensions: Shipping Dimensions: | 159" x 32" x 77" 142" x 30" x 41" |
Payments & Returns
- Payment Methods
- N/A
Post Message
Sign in to ask the seller a question.
-500x500.png)
AMXmachinery1

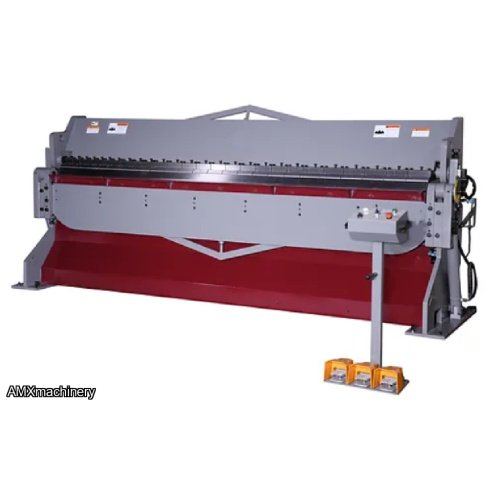

FRENO HIDRAULICO DE PLANO RECTO
FRENO HIDRAULICO DE PLANO RECTO PARTE: 2GM-HSB-1014Taiwan MachinesISO 9001 certifiedHydraulic adjustment for openingHydraulic power clamping for workpiece26” manual back gauge with handwheel1” manual beam adjustment ( front and back )Min. reverse bend is ¾” (20mm)Heavy welded all steel construction for maximum rigidityGermany Rexroth Hydraulic logic system centrally located and quietA wide guidebody ensures strong, stable, smooth & accurate movementComes wit...
-500x500.jpg)
AMXmachinery1

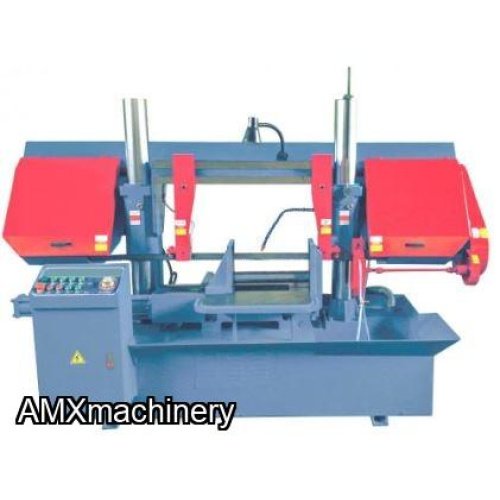

PARTE: 3AM-G-40/70S - SIERRA CINTA PARA METAL - DOBLE COLUMNA
PARTE: 3AM-G-40/70S - SIERRA CINTA PARA METAL - DOBLE COLUMNASaw Band Tensioning Method: ManualCore Components: Gearbox, Gear, Bearing, Engine, MotorApplicable Industry: Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, OtherCore Selling Point: High-AccuracyBlade Tension: ManualBlade Speed(m/min): 27.45.80Vice Clamping: Hydraulic with ManualCutting Feed: Hydraulic steplessMax. Cutting Capacity(mm): Round:300mm, sqaur...
-500x500.png)
AMXmachinery1

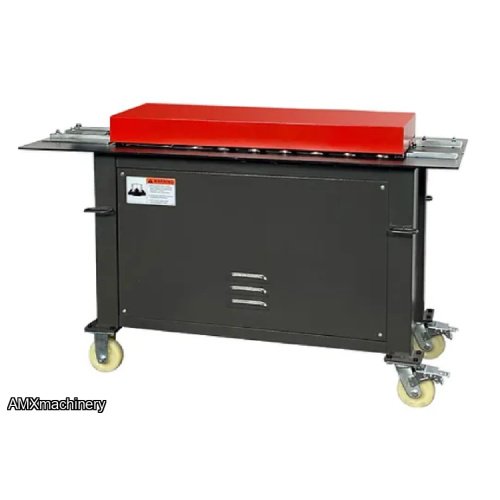

ENGANCHADORA PARA TUBO REDONDO
