Identificador: 1304
Abierta
Descripción

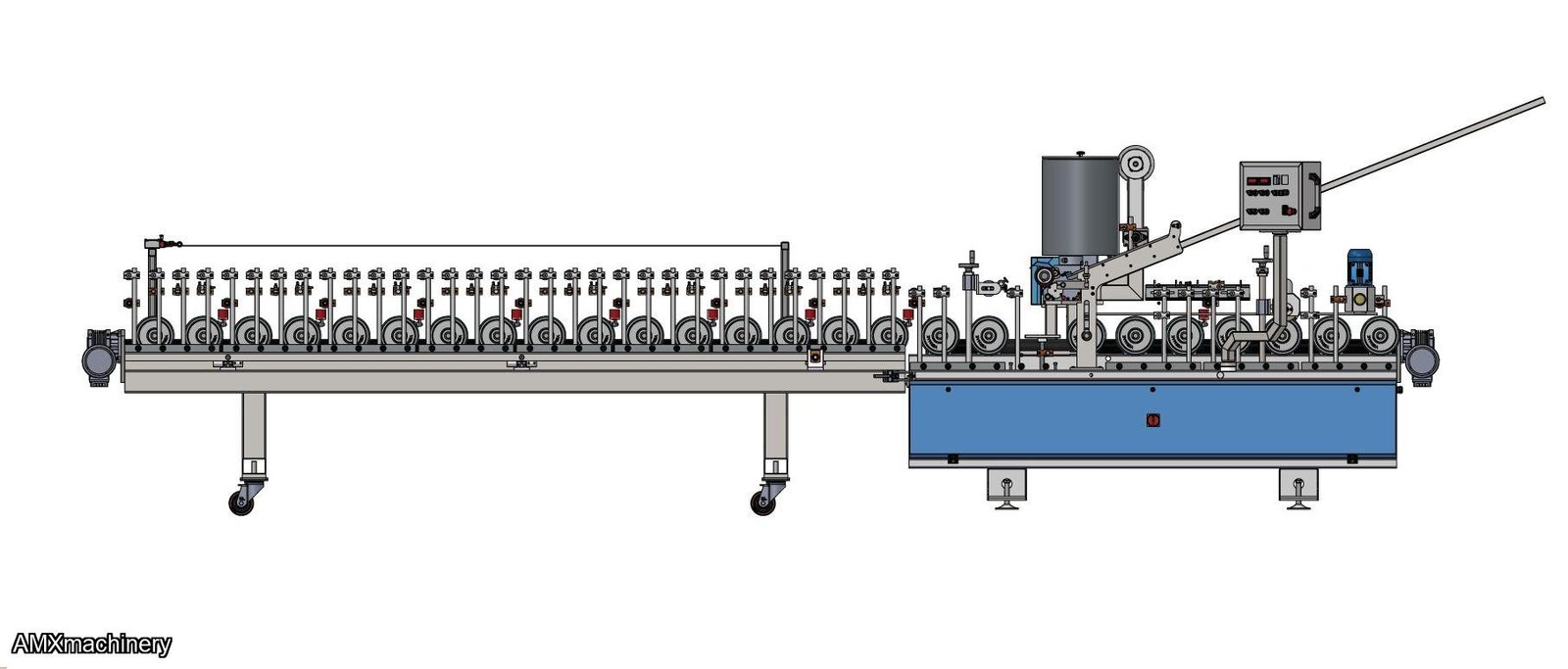

PARTE: 4VE-VEP350-KL6.5-WMP-1 - LAMINADORA DE MOLDURAS - CON ENGOMADORAÂ
PUR-PO-EVA
Nueva con garantÃa
GLUE PUR-PO-EVA WÄ°THÂ CASSETTE SYSTEM 2,5 4 M (with 1 pc Glue tank)
          Â
NO Â Â Â Â Â STANDARD SPECIFICATIONSÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â QTY
1         2,5m main body 4m cassette                                                        1    Â
2         25 set of rubber coated conveyor rollers                                               1
3         Air blowing system to remove dust from MDF, PVC profile surfaces                          1
4         Ø80x350mm silicone coated top pressure roller                                          1
5         2000 W infrared profile heaters                                                       2
6 Â Â Â Â Â Â Â Â Folio feeding system with single rolling and brake system; pneumatic 3 inch or 6 inch (optionally)Â Â 1
7 Â Â Â Â Â Â Â Â Stainless steel ramp unit for natural sheets coating (veneer in sheets)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1
8 Â Â Â Â Â Â Â Â 350 mm steel glue roller (applicator)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1
9         Ø320 Teflon coated, double-tap-controlled glue tank PUR (PUR) (2 x 3000 W heating power)      1
10 Â Â Â Â Â Â 3400 W self-powered hot air guns (Made in Turkey)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4
11       22x430 mm chrome coated vertical holder                                             100
12       22x250 mm chrome coated horizontal holder                                           110
13       Galvanized double hole unit                                                        110
14       Single hole unit                                                                   15
15       Pressure rollers with different hardness and sizes which is suitable for all models of profile       110
16       Pressure rollers with different radius and sizes                                           10
17       Electrical and mechanical equipment compliant with CE and UL Standards                     1
Â
                                               TECHNICAL DATA
TYPE OF FOÄ°LÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â : PVC, PP, Finish Foil, Paper, Veneer (in roll and plate also), Laminate 0,20
PROFÄ°LE TYPEÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â : MDF and all kind of wooden profiles
MÄ°N-MAX FOÄ°L WÄ°DTHÂ Â Â Â Â Â Â Â Â Â Â Â Â Â : 20 mm-350 mm
PROFILE WIDTH and HEIGHT          : 15–350 mm , 75 mm
COATİNG SPEED                    : 10–40 m/dk
GLUEÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â : EVA and POLYURETHANE HOT GLUE (PUR)
TOTAL POWERÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â : 30 kW
VOLTAGE,FREQUENCY,AÄ°R PRESSUREÂ Â Â : 380 V , 50 Hz , 6 Bar
WÄ°DTH X LENGTH X HEÄ°GHT X WEÄ°GHTÂ Â : 1000 x 7000 x 2000 mm , 1950 kg
