Identificador: 1262
Abierta
.jpg)
Descripción

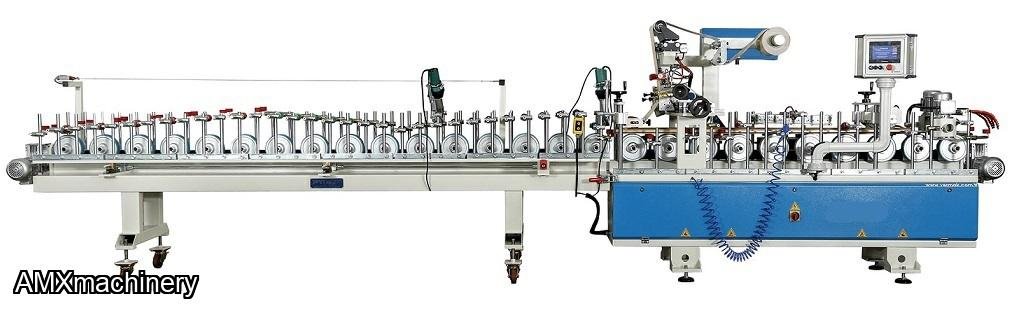

PARTE # 4VE-VP350-KL6.5-W1C – LAMINADORA DE MOLDURAS – PUR HOTMELT – CON ENGOMADORA
Nueva con garantía
Hecha en Europa
Laminadora
Sistema seteado rápido
Engomadora
Para recibir cotización formal y detallada avísenos
NO STANDARD SPECIFICATIONS QTY
1 2,5m main body 4m cassette 1
2 Ø 200X15 rubber coated conveyor rollers 46
3 Ø 200X15 Aluminum rollers (under infrared heaters) 6
4 Air blowing system to remove dust from MDF, PVC profile surfaces 1
5 Bracket system which suitable for polyurethane systems 1
6 Foil edge control unit 1
7 Ø80x700mm silicone coated top pressure roller 4
8 2000 W infrared infrared profile heaters 2
9 Folio feeding system with single rolling and brake system; pneumatic 3 inch or 6 inch (optionally) 1
10 3400 W self-powered hot air gun (Made in Turkey) 4
11 22x430 mm chrome coated vertical holder 96
12 22x250 mm chrome coated horizontal holder 110
13 Galvanized double hole unit 110
14 Single hole unit 15
15 Pressure rollers with different hardness and sizes which is suitable for all models of profile 110
16 Various radius silicone rollers 10
17 On/Off PLC control panel for quick easy setup 1
18 89-336 EEC, CE ve UL Standartlarına uyumlu elektriksel ve mekaniksel donanım 1
TECHNICAL DATA
TYPE OF FOİL : PVC, High Gloss PVC, PP, Finish Foil, Paper, Veneer, Laminate 0,20 (all materials in roll)

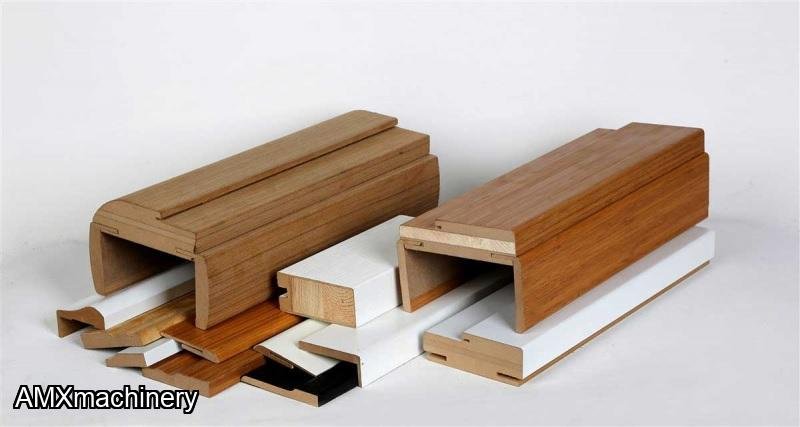

PROFİLE TYPE : PVC, Aluminum, MDF and all kind of wooden profiles
MİN-MAX FOİL WİDTH : 20 mm-350 mm
PROFILE WIDTH and HEIGHT : 15–350 mm , 85 mm
COATİNG SPEED : 10–40 m/dk
GLUE : POLYURETHANE HOT GLUE (PUR)
TOTAL POWER : 20 kW
VOLTAGE,FREQUENCY,AİR PRESSURE : 380 V , 50 Hz , 6 Bar
WİDTH X LENGTH X HEİGHT X WEİGHT : 750 x 2500 4000 x 2000 mm , 1900 kg
AKS 350 L4-OD easy setup single-sided open and close adjustment system 4m
IN-TECH 350 WRAP ISN 350 SLOT HEAD IGM 20 DRUM MELTING 3 METER HOSE
