Identificador: 2222
Abierta
Descripción
PARTE: 12506 – CENTRO DE MAQUINADO VERTICAL – CNC – HASS VF-6/50
USADO – BUENAS CONDICIONES
2015

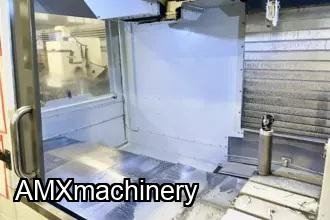

HAAS VF-6/50 & HRT310
Type: Vertical Machining Centers
Category: Machining
Manufacturer: HAAS
Model: VF-6/50
Year: 2015
Description
HRT310 Rotary Table, 4th Axis Driving & Wiring, 8" Column Riser, Renishaw Probing, Through-Spindle Coolant, CAT50 Taper, only 1,500 Spindle Hours. This 2015 Haas VF-6/50 & HRT310 are in plant, under power and available immediately.
Specifications
TABLE LENGTH 64"
TABLE WIDTH 28"
X-AXIS TRAVEL 64"
Y-AXIS TRAVEL 32"
Z-AXIS TRAVEL 30"
SPINDLE SPEED 7,500 RPM
SPINDLE MOTOR 40 hp
SPINDLE TAPER CAT 50
TOOL CAPACITY (ATC) 30
ROTARY OR TRUNNION Yes
Equipped With
HAAS HRT310 4TH AXIS ROTARY TABLE
4TH AXIS DRIVE & WIRING
8” COLUMN RISER
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
PROBE RISER BLOCK
THROUGH-SPINDLE COOLANT (300 PSI)
SIDE-MOUNT TOOL CHANGER (30 ATC)
AUXILARY COOLANT FILTRATION SYSTEM
PROGRAMMABLE COOLANT
REMOTE JOG HANDLE
CHIP AUGER
EARLY POWER-FAULT DETECTION MODULE
COORDINATE ROTATION & SCALING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT
** AS OF OCTOBER 2023, SPINDLE TIME – 1,571 HOURS
** MACHINE CUT PRIMARILY CAST IRON
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
