Identificador: 2648
Abierta
PARTE: 12613 - REASERRADORA HORIZONTAL - 1 BANDA – 11-3/4” ANCHO X 10” ALTO
AMXmachinery
Descripción

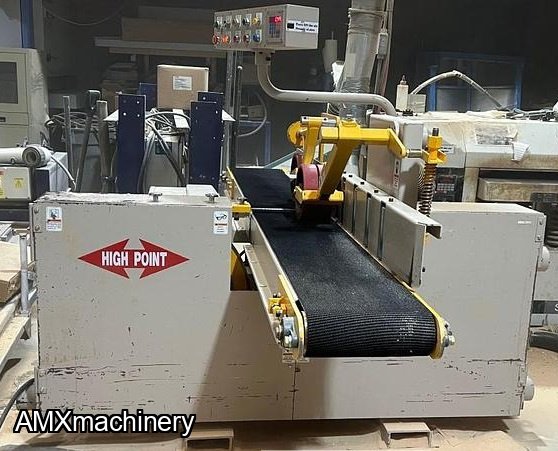

PARTE: 12613 - REASERRADORA HORIZONTAL - 1 BANDA – 11-3/4” ANCHO X 10” ALTO
Usada - Buenas condiciones
HIGH POINT
MODELO: HP-11
MFG. 2004
Motor powered set works for accurate saw wheel elevation.

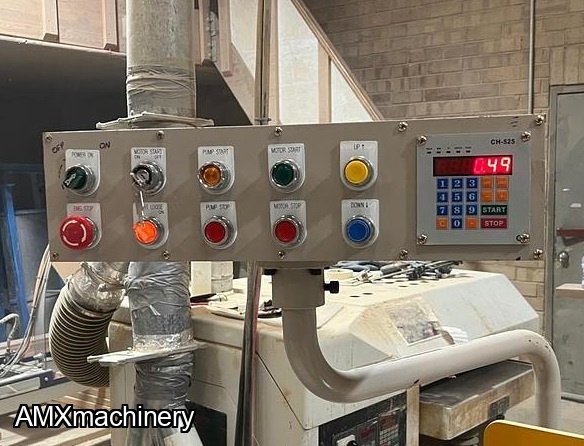

Digital position controller permits accurate saw wheel height positioning.
Automatic blade tension is controlled by hydraulic cylinder.
Variable feed speed by hydraulic motor drive.
The big pressure roller is air cylinder loaded to hold wood down firmly.
1. Saves Time and labor costs
2. Pneumatic pressure roller infeed
3. Digital position controller permits accurate saw wheel height
4. Easy to operate and set up
Feed speed: 4-27m/min (13-90FPM)
Max. cutting height: 250mm (10”)
Max. cutting width: 300mm (11 3/4”)
Min. workpiece length: 400mm; 205mm with extension set
Max. workpiece length: 580mm
Distance from blade to conveyor: 4-125mm
Saw wheel Diameter: 711.5mm (28”)
Saw wheel width: 22.7mm (1”)
Saw blade size: 4265 x 27mm (168” x 1’)
Blade speed: 2816m/min (9240FPM)
Saw Motor: 15kW(20HP)
Feed unit: 0.75kW(2HP) gearbox motor with frequency converter
Cooling system Oil mist
Blade tensioning
Hydraulic system
Motor for blade positioning: 0.18kW(1/4HP)
Dust post: Ø4” x 4
Table height: 902.5mm
Machine weight: 951kgs
Machine dimensions: 2835 x 2052 x 1678mm (LxWxH)
