Identificador: 1731
Abierta
Descripción
PARTE: 2CK-FL-08 - SISTEMA FINGER JOINT - AUTOMATICO
AUTO INFEED TABLE
|
Length |
900mm (35.4”) |
|
Width |
600mm (23.6”) |
|
Infeed |
Table½ HP (3Ph) x 2 |

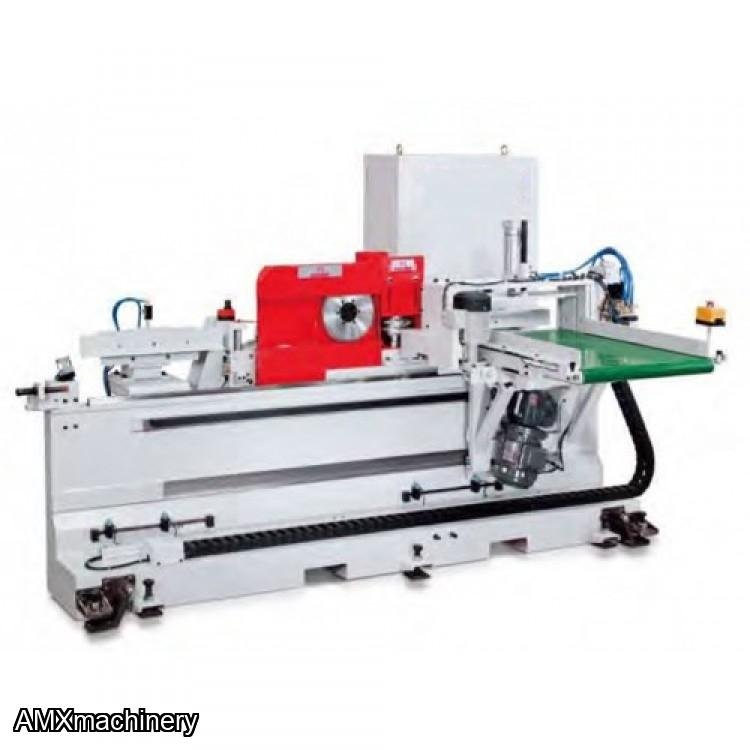

AUTO FINGER SHAPER – LEFT
|
Table Size |
600mm (23.6”) |
|
Length |
150~900mm (5.9” ~ 35.4”) |
|
Width |
20~60mm (0.78” ~ 2.36”) |
|
Thickness |
20~160mm (0.78” ~ 6.3”) |
SPECIFICATIONS:
- With 20HP (3Ph) for Main Spindle
- With 5HP (3Ph) for Trimming Saw
- With 2HP (3Ph) for Bottom Scoring Saw
- With 1/2HP (3Ph) for Feeding Conveyor

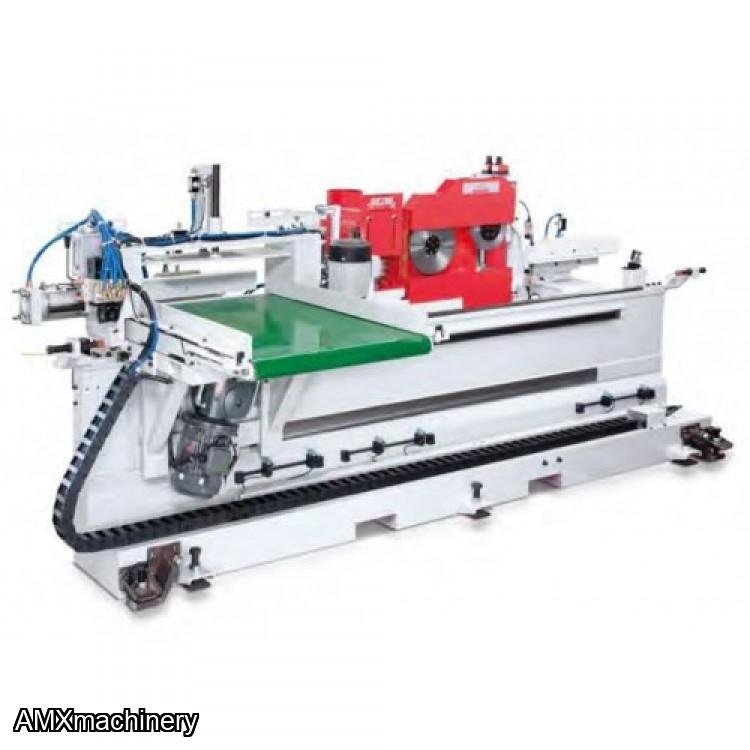

AUTO FINGER SHAPER – RIGHT
|
Table Size |
600mm (23.6”) |
|
Length |
150~900mm (5.9” ~ 35.4”) |
|
Width |
20~60mm (0.78” ~ 2.36”) |
|
Thickness |
20~160mm (0.78” ~ 6.3”) |
SPECIFICATIONS:
- With 20HP (3Ph) for Main Spindle
- With 5HP (3Ph) for Trimming Saw
- With Top and Bottom Scoring Saw, 2HP (3Ph) x 2
- With 1/2HP (3Ph) for Feeding Conveyor
- With Gluing System – Roller Type

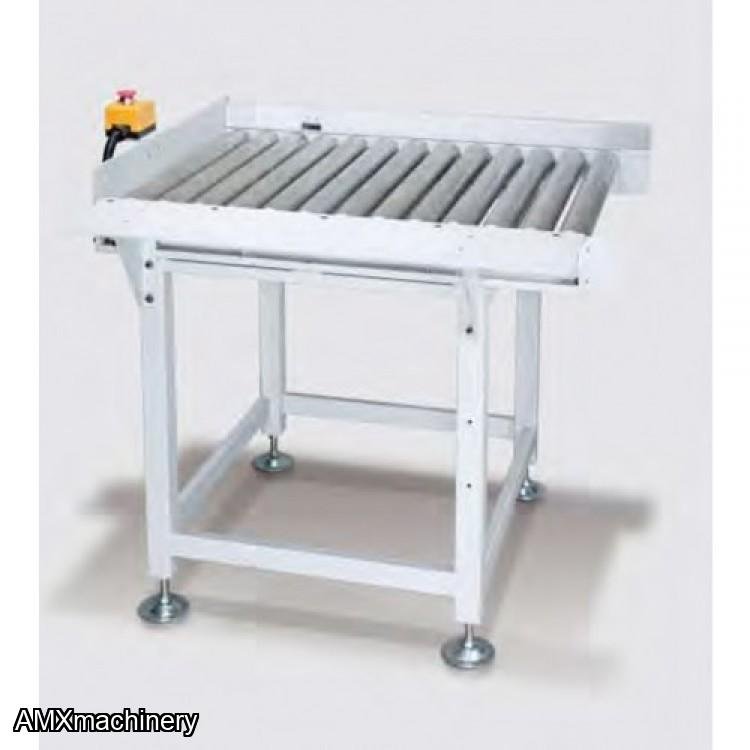

TRANSFER ROLLER
|
Length |
900mm (35.4”) |
|
Width |
600mm (23.6”) |

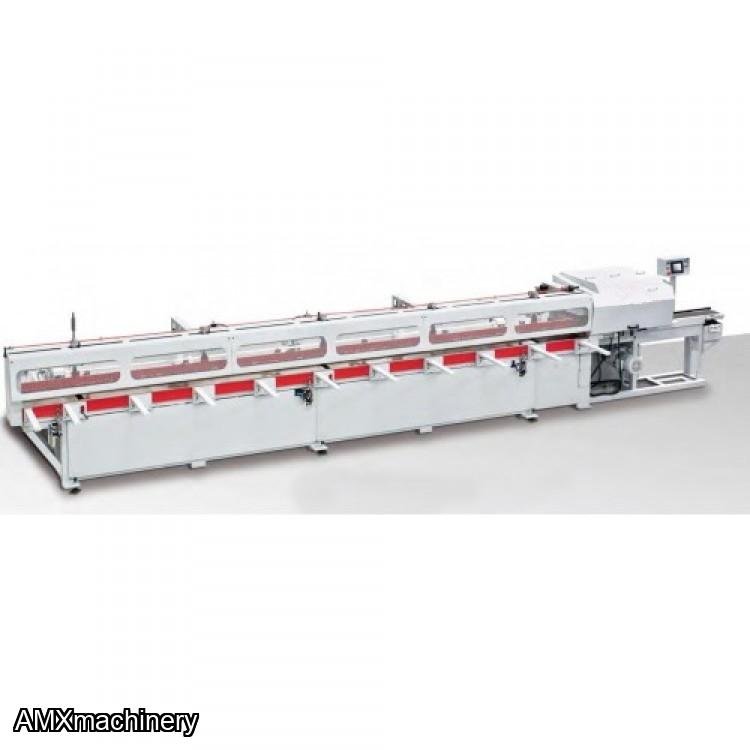

TWO STAGE AUTO FINGER ASSEMBLER
|
Length |
6000mm (236”) |
|
Width |
20~160mm (0.78” ~ 6.3”) |
|
Thickness |
20~60mm (0.78” ~ 2.36”) |
SPECIFICATIONS:
- With 2HP (3Ph) for Feeding Table
- With 5HP (3Ph) for Sizing Saw
- With 5HP (3Ph) for Oil Pump
- With Saw Blade
- Speed – Max. 4~5 Piece/Min.
