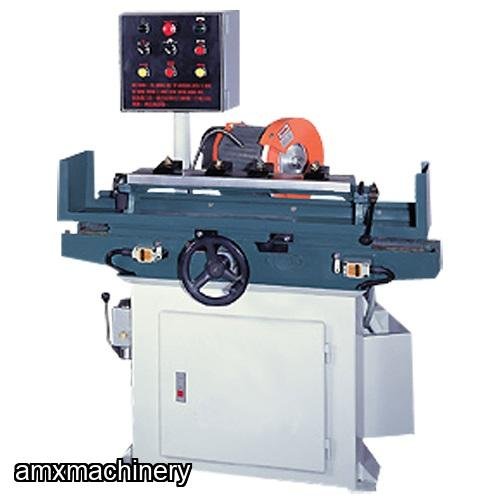

PARTE: 2TA-TG-6000 – AFILADORA DE CUCHILLAS RECTAS
Nueva con garantia
Features:
Heavy-duty straight knife grinder, rapid for grinding processing and saving time.
Economical model and efficiency for processing high powerful of any straight knife grinding such as Planner & Jointer Knife, Peeling Knife, Super Surface Knife, and Veneer Cutting Knife.
Automatic grinding table movement forward and backward, label saver.
Employed with straight linear motion guides bearing to ensure longitudinal feed traverse smoothly and accurately.
The knife can be put through a coarse wheel grinding, then a fine wheel grinding for sharpening the knife edge again to obtain the super sharp edge and extend the cutting life of the knife.
Built in coolant pump for faster grinding.
Heavy sheet metal cabinet stand and cast iron body.
High precision and durability.
SPECIFICATIONS | 2TA-TG-3000 | 2TA-TG-5000 | 2TA-TG-6000 |
Grinding Capacity |
|
|
|
Cutter (Dia. x W) | 9" x 8" | N/A | N/A |
Carbide Saw (Dia. x T) | 20" x 3/8" | N/A | N/A |
Carbide Knife (L x W x T) | 12" x 1½" x ¼" | 25" x 3" x 5/8" | 25" x 3" x 5/8" |
Router Bits (Shank) Max. | ½" | N/A | N/A |
Grinding Wheel Size | 6" x 5/8" | 4" x 2" x 5/8" | 10" x 2/3" x 1" |
Grinding Head Travel | 14" | 26" | 26" |
Grinding Wheel Speed | 5000RPM | 1700 RPM | 1700 RPM |
Fine Grinding Wheel Size | N/A | --- | 4" x 2" x 2" |
Grinding Wheel Motor | 1 HP | ½ HP | 1 HP |
Fine Wheel Motor | N/A | --- | --- |
Table Size | 28' L x 8" W | 26" L | 27" L |
Table Travel | 20" x 7" | (Wheel) | 28" |
Table Travel Motor | --- | ¼ HP | ¼ HP |
Coolant Pump Motor | 1/8 HP | N/A | 1/8 HP |
N.W. (LBS) | 748 LBS | 340 LBS | 660 LBS |
G. W. (LBS) | 924 LBS | 430 LBS | 836 LBS |
Payments & Returns
- Payment Methods
- Transferencia/Deposito Bancario
Post Message
Sign in to ask the seller a question.
AMXmachinery
PARTE: 2CA-TS-08DB – CASETA DE PINTURA – FILTROS SECOS
PARTE: 2CA-TS-08DB – CASETA DE PINTURA – FILTROS SECOS - CAPACIDAD 8 PIES LARGOPARTE: 2CA-TS-12DB – CASETA DE PINTURA – FILTROS SECOS - CAPACIDAD 12 PIES LARGONew with warrantyEnclosure booth with dry filter at background for purify exhaust air to limit the pollution.SPECIFICATIONS2CA-TS-082CA-TS- 12Working Width 8'8'12'”Exhaust Fan2 HP3 HP(Water Booth Pump)(2 HP)(3 HP)MaterialZinc-Plated Sus #304Booth Size (D x H)5' x 6.5'5' x 6.5'
AMXmachinery
MOLINO PARA PELLETS - ASERRIN
MOLINO PARA PELLETS – PARA COMBUSTIBLEEstos molinos son los que se recomiendan para hacer pellets con 100% aserrín,Están diseñados para hacer pellets de aserrín, y tienen los motores capacidad industrial,La fuerza de los molinos varia de entre 200 libras para el molino de 3 HP eléctrico, a 1,890 libras para el molino eléctrico de 30 HP,La capacidad de producción aproximada en todos los casos es de 10 Kg por cada HP de fuerza del motor por hora, y es un 10 % a 15% más alta la producció...
AMXmachinery
OVER ARM ROUTER
PARTE # EV-2470 - OVER ARM ROUTER - EVANS 2470- 110 Volt- Standard Features:- 3 HP router motor- 80 PSI Required- 21,000 RPM- Working height 33"- Includes router bit Part # 08018- 30" x 48" cutting area- Lateral adjustment of pneumatic clamps.- Crated weight 1010 LBS. Shipping dimensions 69" depth X 72" wide X 85" high
AMXmachinery
PARTE: 12242 - LIJADORA DE BANDA ANCHA – 37” ANCHO – 2 BANDAS – TIMESAVERS
PARTE: 12242 - LIJADORA DE BANDA ANCHA – 37” ANCHO – 2 BANDAS – TIMESAVERS
USADA
– BUENAS CONDICIONES
-
37" x 8" working capacity
-
1st head: 25 HP, 230/460/60/3, 6" diam. rubber contact drum
-
2nd head: 15 HP, 230/460/60/3 platen
-
1.5 HP, 208-230/460/60/3 variable speed conveyor and passline 15-45 FPM
-
10" infeed load conveyor
-
Ruff Tex conveyor belt
-
Electric eye tracking, amp meters and mechanical digital readout
-
Automatic set-up device
...
