Description

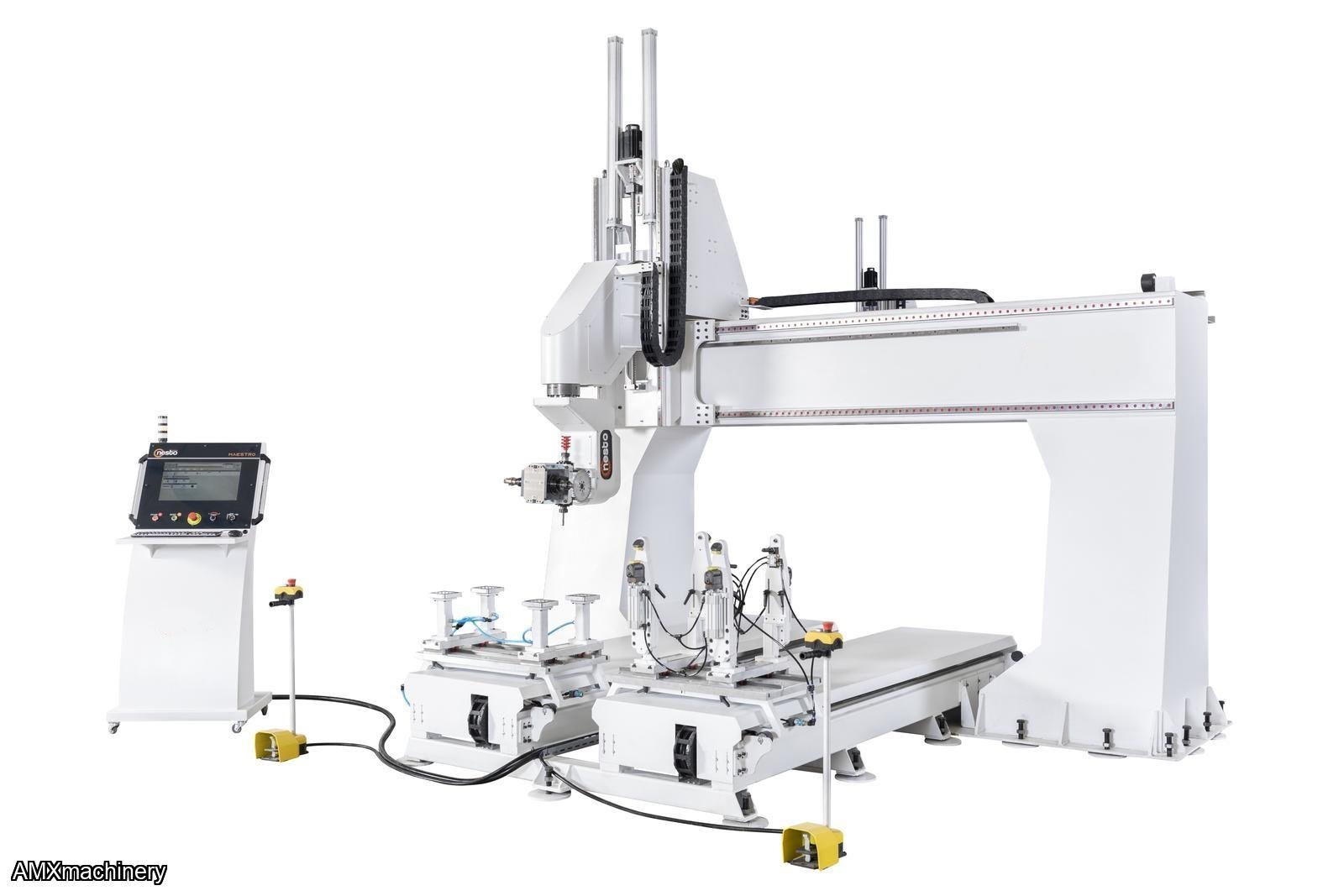

PARTE: 4NE-MAESTRO - CENTRO DE MAQUINADO CNC - 5 AXIS - MAESTRO
Control Unit: TPA Control Unit
X AXIS - 1100 MM
Y AXIS - 1300 MM
Z AXIS - 700 MM
• Y1/ Y2 Axis Motor: 1.5 kw Rack and Pinon
• X Axis Motor: 1.5 kw Rack and Pinon
• Z Axis Motor: 3 kw Ball Screw with break
• Reductor: Liming FE Series

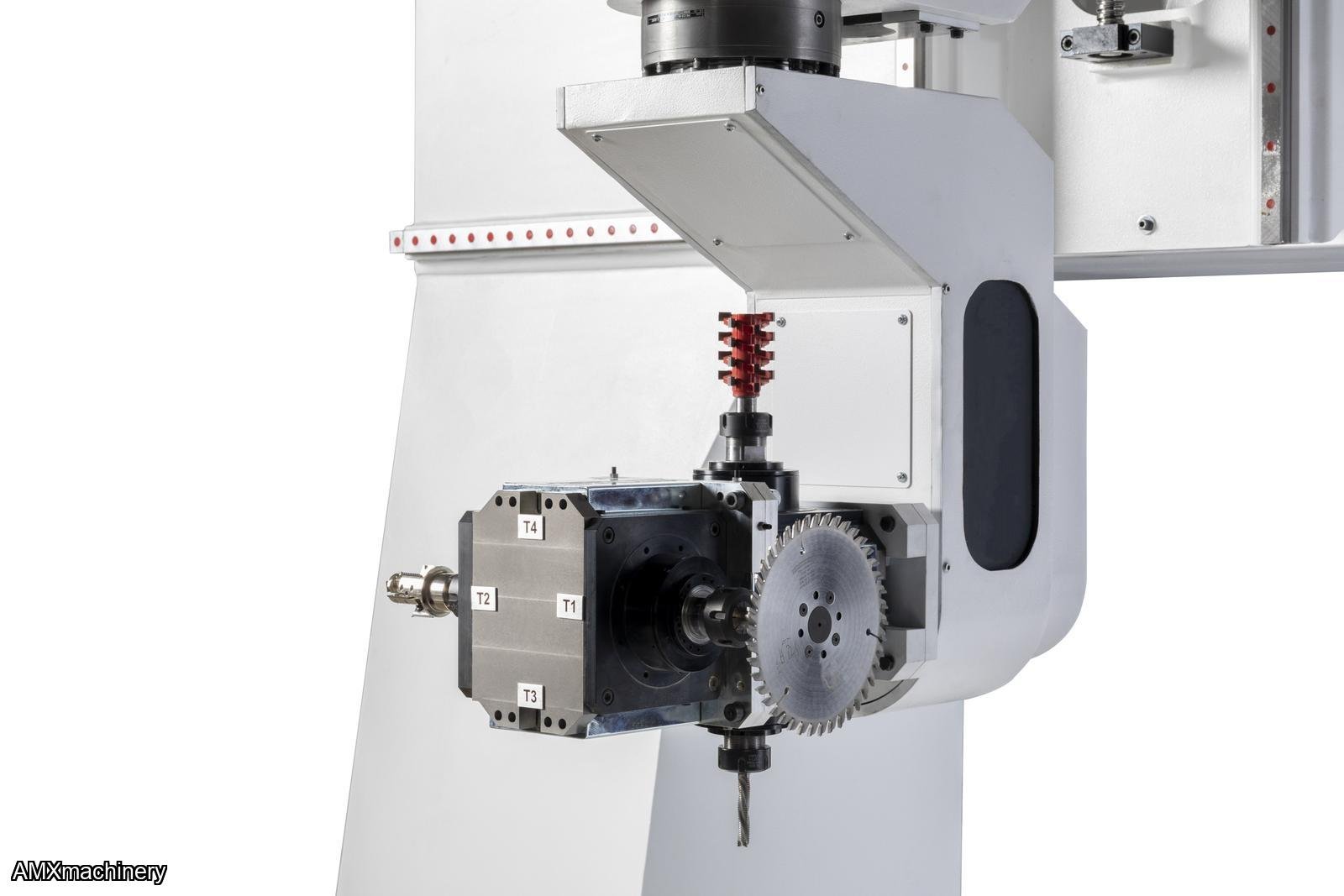

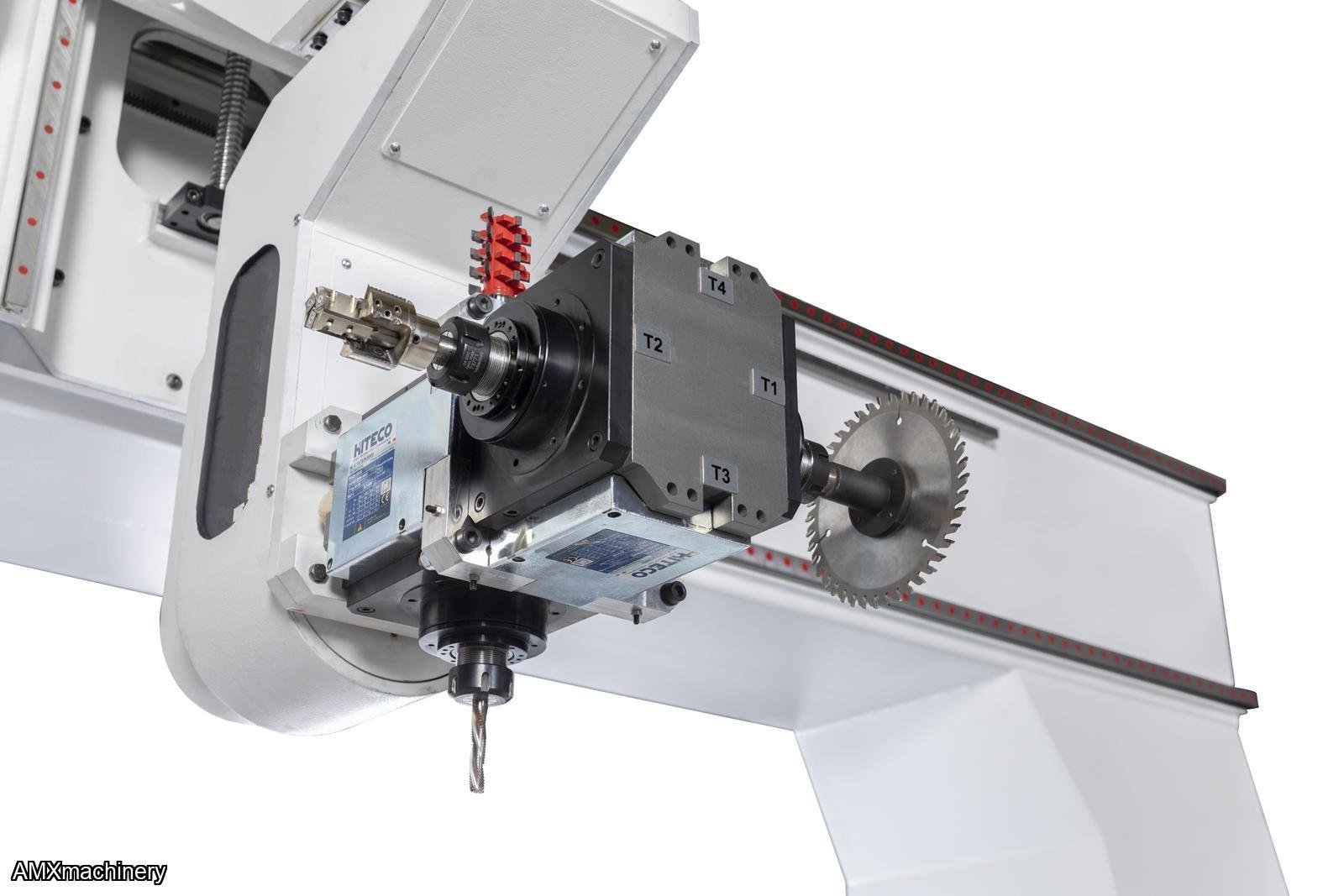

• Spindle Motor: ML-1C 7.5/12 24 ER32 CROSS 2+2 ENDS

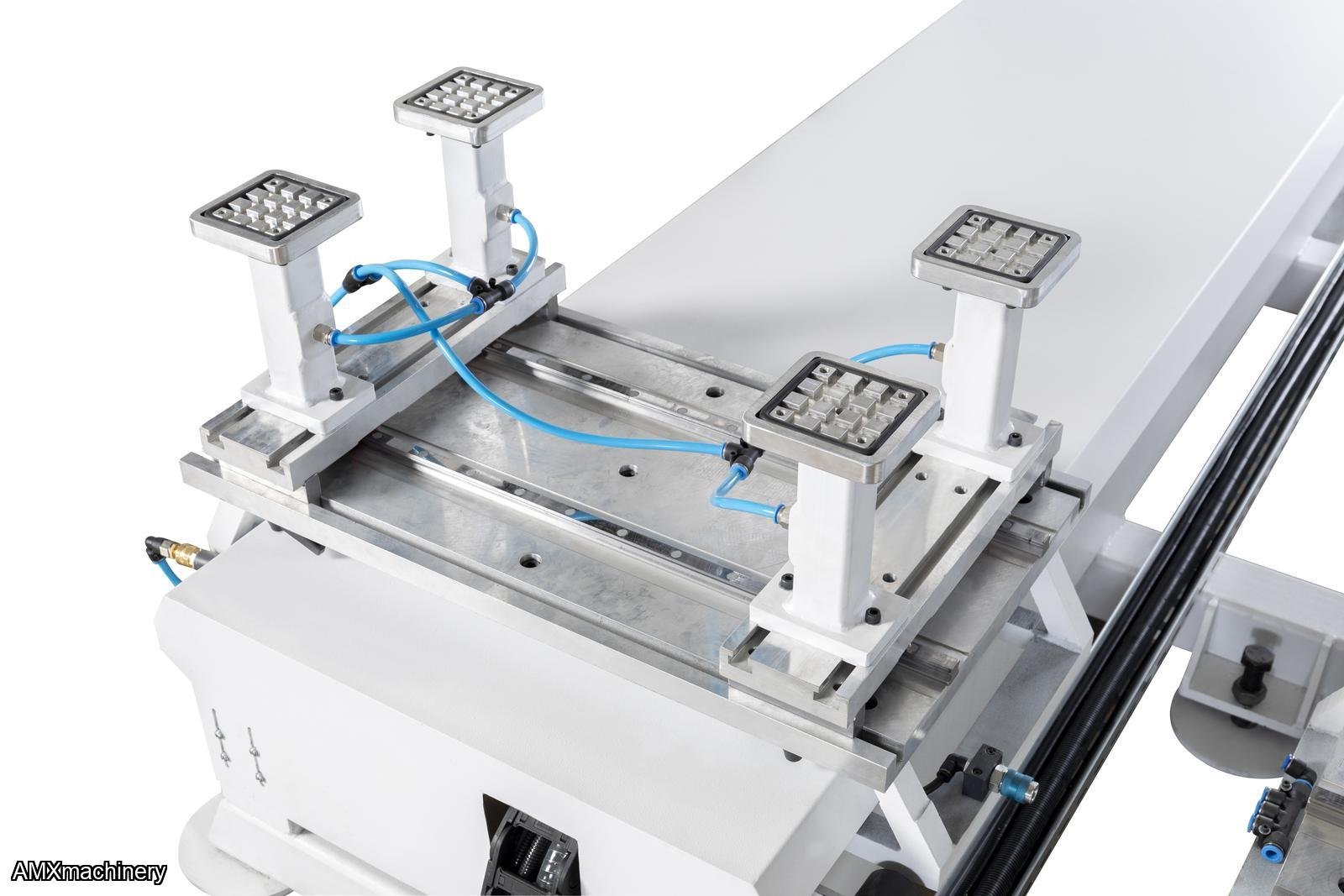

• Vacuum System: Backer Vacuum 250 M^3
• Oiling System: ILC Self Lubrication System
• Machine Dimension: Length: mm * Width: mm * Height: mm
• Weight: 4200 KG
• Power: KW
• CAD-CAM Program: Pegasus CAD CAM Milling Wood Ultimate ( Licensed )
• Pegasus SMC ( Smart Machine Control ) Wood Optimizer ( Licensed )
