ID: 2166
Open
Description

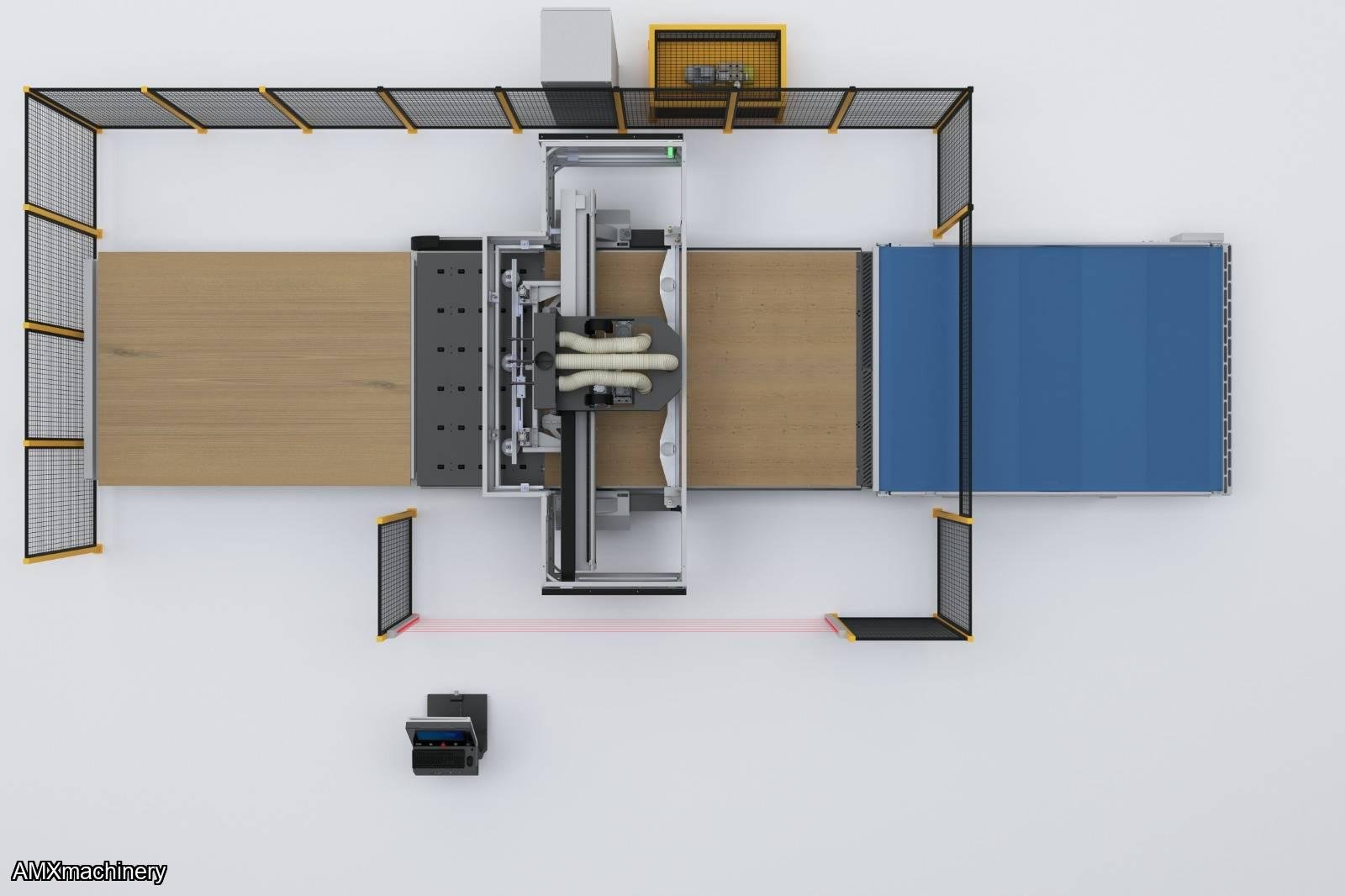

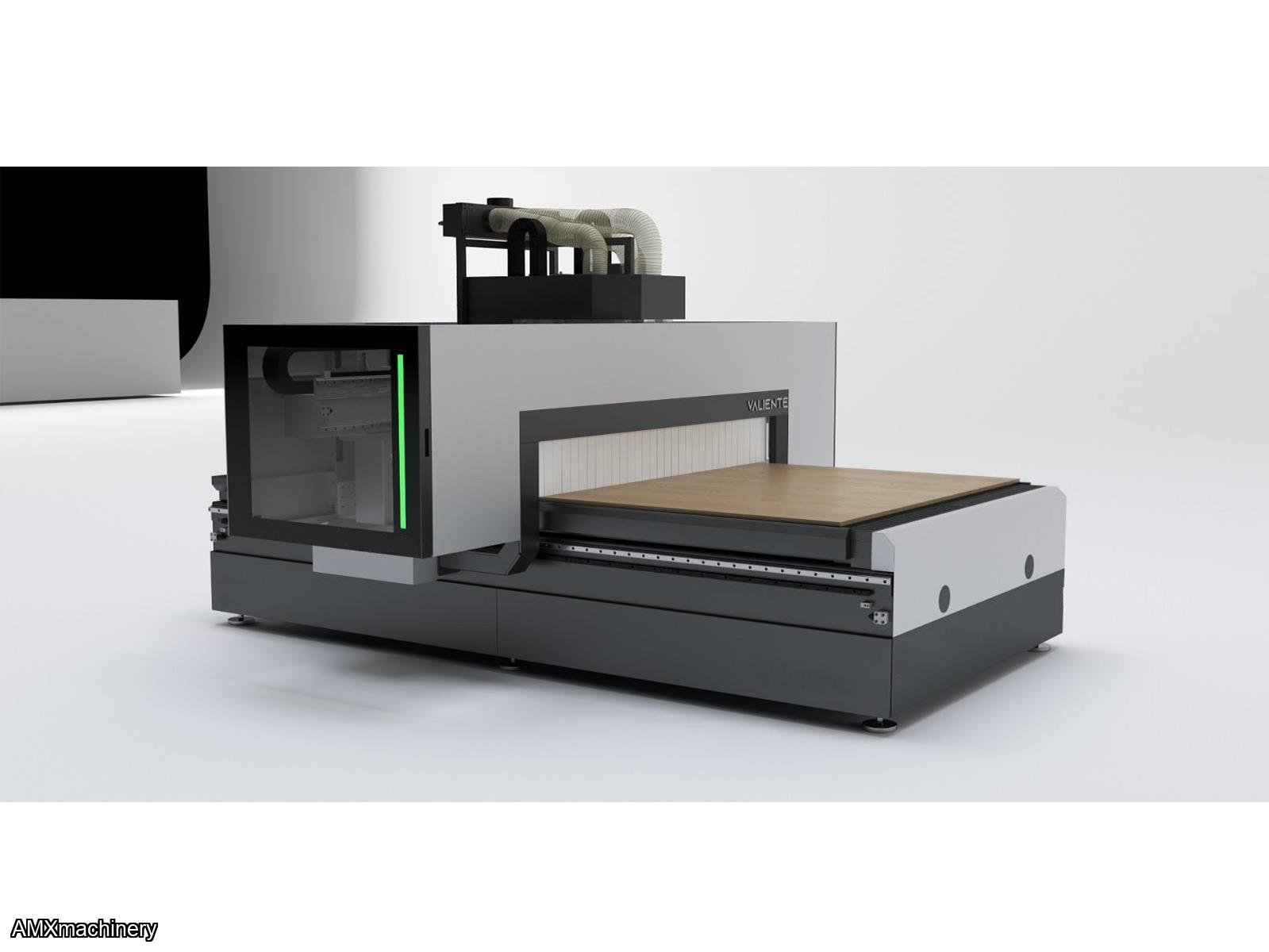

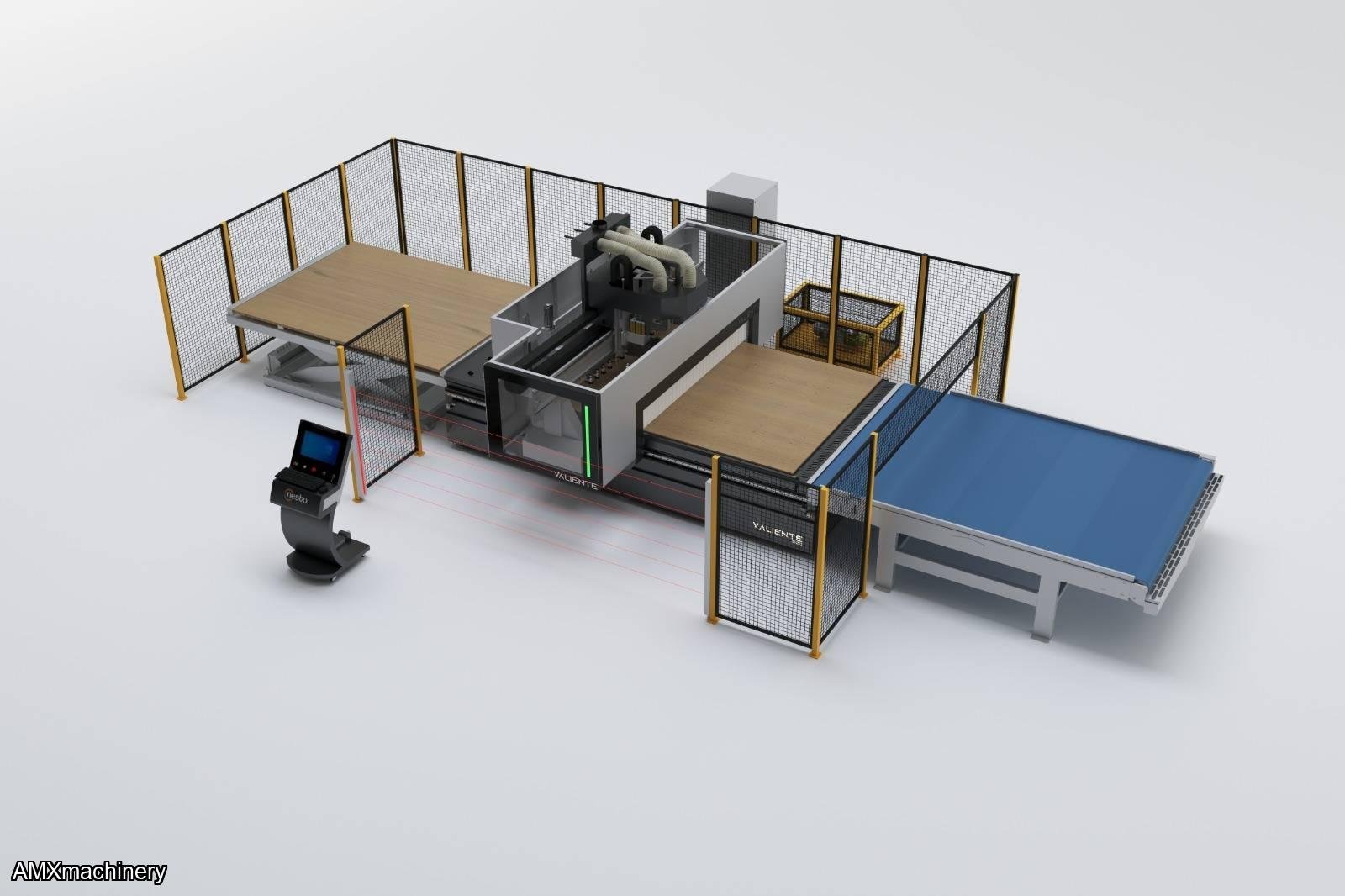

PARTE: 4NE-VALIENTE - CENTRO DE MAQUINADO CNC - VALIENTE
Control Unit TPA (İtalian)
• Spindle: HITECO HSK F63 11KW ATC
• Vacuum Pump: BECKER 250M3
• Working Capacity: 2100mm*2800mm (2100mm*3660mm Option)
• Remote Control: YES
• Automatic Self Lubrication System: YES ( ILC - Italian )
• Under Bridge with 14 tool capacity magazine
• 14 Pieces Toolholder
• Vacuum Zone: 6 zone for 2128 / 8 zone for 2136
• Boring Unit FAM 9 Vertical ( Italian ) Optional
• Automatic Unloading and Cleaning System : Included
• Automatic Loading System : Optional
• Loading Lift : Optional
• Unloading Converyor : Optional
