Identificador: 1299
Abierta
.jpg)
REASERRADORA HORIZONTAL - 4 BANDAS - ANCHO 8” - (4) 15 HP - REGRESADORA
AMXmachinery
Descripción

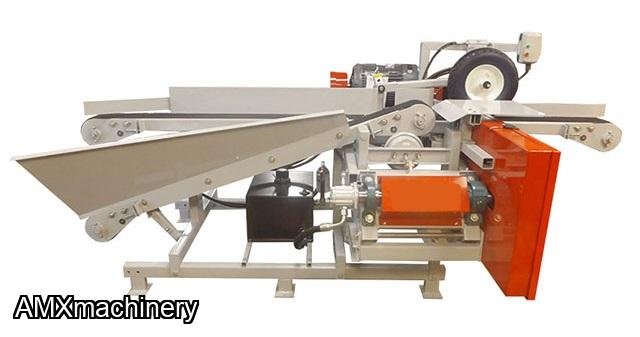

PARTE: 2FA-RM6X6-4 - REASERRADORA HORIZONTAL - 4 BANDAS - ANCHO 8” - (4) 15 HP - REGRESADORA
NUEVA CON GARANTIA
- ¼” – 6” Tall Cut Height, 8” Wide, Unlimited Length Capacity
- 4” Dust Connection (No dust collector required)
- Heavy Duty 2-7/16” Blade Arbors and Bearings
- 20” Band Wheels
- Air Tensioned Blade Mechanism
- Powered Belt Return w/ Adjustable Height Sheer Plate
- Self- contained Hydraulic System: Adjustable Infeed Speed (0-150 ft/ min)
- Easy Crank for Adjustable Blade Position
- 3” Right Side Fences
- Feed Belt Height: 34”

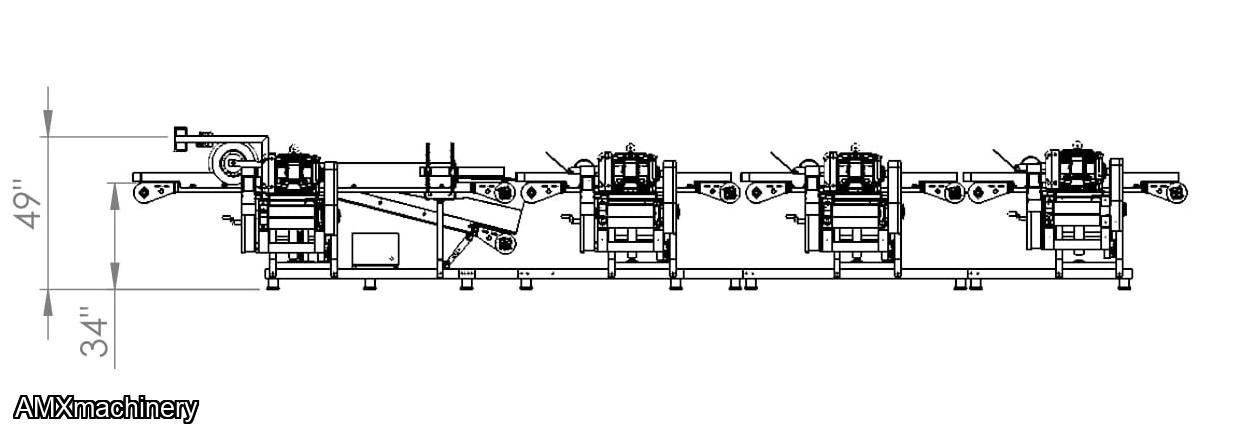

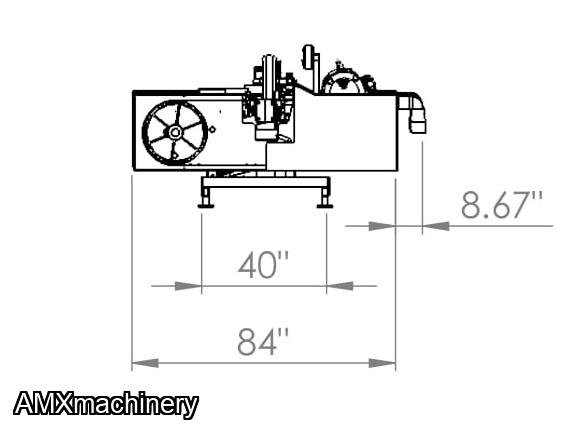

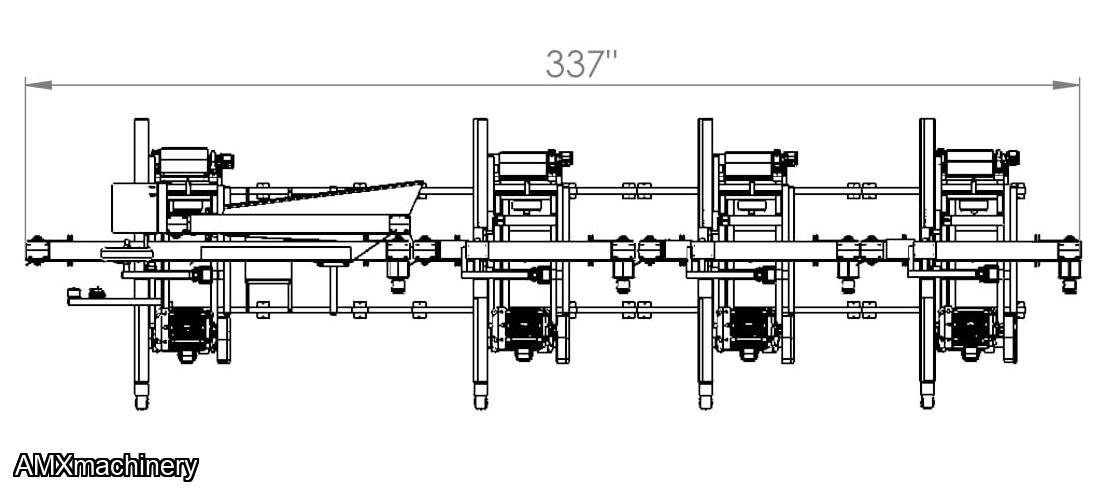

-Dimensions: 70” L, 93” W, 47” H
- Approx. Weight: 1840 lbs
GUIDE_KIT
- 15’1” Long X 1” Wide Bandsaw Blade
- 3/4" Composite Guide Blocks
*** 1.25" Blade Available
*** Roller Guides Available
PWR_HD_6X6
- Top Mounted Powered Tire Hold Down Wheel
HYD_KIT
6 x 6 RESAW HYD COMPONENTS
(3) - ¼” – 6” Tall Cut Height, 8” Wide, Unlimited Length Capacity
- 4” Dust Connection (No dust collector required)
- Heavy Duty 2-7/16” Blade Arbors and Bearings
- 20” Band Wheels
- Air Tensioned Blade Mechanism
- Self- contained Hydraulic System Runs off First Saw
- Easy Crank for Adjustable Blade Position
- 3” Right Side Fences
- Feed Belt Height: 34”
-Dimensions: 60” L, 90” W, 48” H
- Approx. Weight: 1340 lbs
GUIDE_KIT
- 15’1” Long X 1” Wide Bandsaw Blade
- 3/4" Composite Guide Blocks
*** 1.25" Blade Available
*** Roller Guides Available
HD_SLAVE
- Top Mounted Powered Tire Hold Down Wheel
PWR_HD_HYD KIT
RS6X8 HYD KIT
AIR_HOLD_OVER_SLAVE
RESAW HOLD-OVER KIT FOR SLAVE MODEL
FRAME 6X6_MID
Slave Middle for 6x6 Return Resaw
FRAME_6X8_MID
Slave Mid Frame Rail for Behind 6X8
FRAME_6X8_END
Slave End Frame to Slave Middle or RM6X8
RESAW-(4)15HP_480_PUMP
4 HEAD Control Panel
- (4) 15 HP Blade Motors (230/480/3/60 TEFC)
- (1) 5 HP Pump Motor (230/480/3/60 TEFC)
- 480V Line Voltage
- 24" Tall X 20" Wide Enclosure (UL Type 1,3R,4,12)
- Enclosure Mounted to Hydraulic Pump Stand
- 480V Primary/ 120V Secondary Control Transformer
- Service disconnect in panel door
- (4) 15HP 480V Motor starters, breaker w/OL
- (5) Start/ Stop buttons for each motor w/ legend plates (Head 1, Head 2, Head 3, Head
4, Hydraulic Pump)
- (1) Emergency Stop Button w/ legend plate
- All controls mounted in plastic remote enclosure
- Completely for 480V, Pre-wired Motor Starters with Start/ Stop Buttons and Circuit
Overload Protection
- Controls Mounted at Operators Station
- 85.8 FLA
4 HEAD HYD
4 Head Resaw Pump System
- 40 Gallon Hydraulic Revivor
- 10 GPM Pump
- Pump Stand
STARTUP KIT 1
- 25 Blades
- Extra Set of Guides
- Grease gun with tube of grease
- 9/16 Wrench
- 3/4 Wrench
- 1-1/8 Wrench
- Toolbox
Popular Options
- Multiple Support Heads
- Air Tension Hold Over Plate (For Ripping Material)
- Pre-wired for 230, 480, 575V 3 Phase
- Pre-wired 220V 10HP Motor Single Phase
- Gas Powered Honda GX690 Power Plant
- 6” Height Right Side Fences
- Left Fences for Ripping
*** Other options available
