Identificador: 1605
Abierta

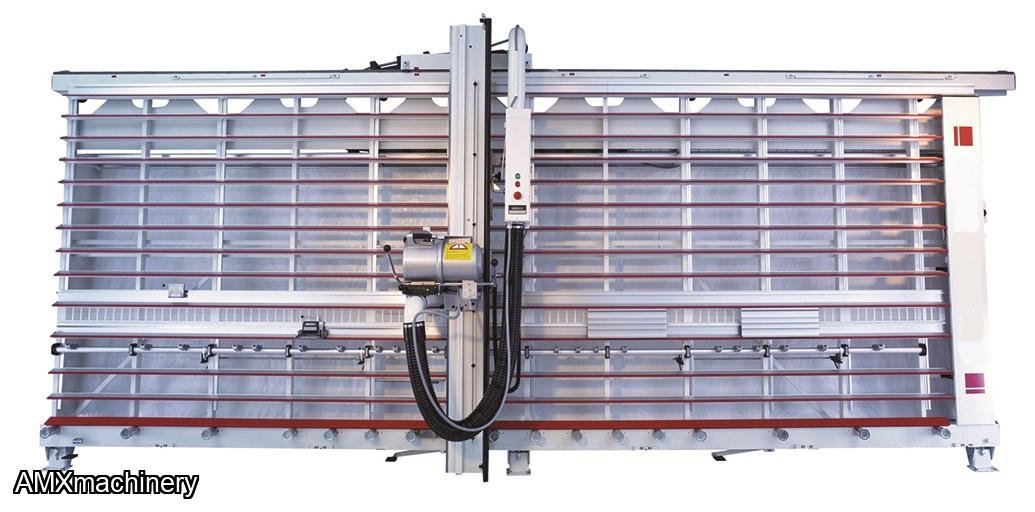

SIERRA ESCUADRADORA VERTICAL - STANDARD - CAP. 168” X 66” X 3-1/8”
AMXmachinery
Descripción
PARTE: 2ST-STANDARD - SIERRA ESCUADRADORA VERTICAL - STANDARD - CAP. 169” X 66” X 3-1/8”
NUEVA CON GARANTIA
• Swiss made quality for accuracy and durability!
• Very stable, all welded steel frame suitable for free-standing or wall-mount installation
• Heavy-duty panel support rollers with integral foot pedal braking system
• Convenient, sturdy, two-section mid-shelf with moveable aluminum fingers allows comfortable working of small parts and ability to stage material on one side of the saw
• Snap-in aluminum small parts supports (pair) for stability of small parts cutting on mid-shelf
• Automatic, mechanically shifting aluminum support grid with replaceable plastic laths
• Full length measuring channel with inches/metric scales and measuring flip stop
• Second measuring channel with one auxiliary 4” wide flip stop
• Vertical cutting stations 40 inches on center (1 meter optional)
• TRK dust collection system with cable chain hose take-up; note: requires connection to a collector
• 7-1/2 hp, 220/440V, 3-phase motor with brake, Y- soft starter, and insulation to 77dB
• 300 mm (11-7/8”) HFG (hollow face) carbide saw blade
• Main blade, climb-cut scoring for chip-free cutting of melamine, veneers, and laminates
• Template bar with six stops for setting typical horizontal cuts
• Repeat rip device with roller follower and 5’ capacity for strip cutting from top of panel
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PROFILE KNIFE GRINDER - RONDAMAT 960
PARTE: 12306-E - PROFILE KNIFE GRINDER - RONDAMAT 960USED - GOOD CONDITION9-3/8″ max. arbor lengthTool dia. 11-3/4″ max. to 4″ minGrinding wheel speed inverter controlledGrinding wheel speeds from 1,500 to 3,000 RPM 1.5 HP motorhydro-clamping of grinding wheel to arborSetting gauges for axial constantAxial clearance angle 0-20 degreeOn board diamond wheel dressing8-7/8″ max. 6″ min. grinding wheel dia
13-gal. coolant tank w/ 1.2 HP pump
AMXmachinery
PARTE: 1SL-DC-TS12 - SIERRA DE MESA 12" - MOTOR 3 HP
PARTE:
1SL-DC-TS12 - SIERRA DE MESA 12" - MOTOR 3 HPMOTOR: 3 HP, 110/220V, 60 Hz, 1 FASESMEDIDAS DE LA MESA CON EXTENSION: 27" X 40-1/2"ALTURA MESA: 34-1/2"DIAMETRO DEL DISCO 12"DIAMETRO FLECHA 5/8"VELOCIDAD DEL DISCO: 4560 RPMRANGO ELEVACION DISCO: 0 A 4"RANGO INCLINACION DISCO: 0 A 45 GRADOSCAPACIDAD MAXIMA DE CORTE A 90 GRADOS: 4"CAPACIDAD MAXIMA DE CORTE A 45 GRADOS: 2-3/4"PESO: 127 KGS
AMXmachinery
PARTE: 4VF-CSA - CIZALLA - GULLOTINA - SIERRA CINTAS - ANCHOS 150, 200, 310 MM
PARTE: 4VF-CSA - CIZALLA -
GULLOTINA - SIERRA CINTAS - ANCHOS 150, 200, 310 MM
Nueva con garantía
150 MM
200 MM
310 MM
AMXmachinery
DOBLADORA UNIVERSAL - 8 PIES PARA CAL. 16 - EN ACERO INOXIDABLE
PARTE: 1DO-DU-814 - DOBLADORA UNIVERSAL - 8 PIES PARA CAL. 16 - EN ACERO INOXIDABLENUEVA CON GARANTIA
REFORZADA
Longitud de Dobles: 8´ (2.44m)
Capacidad de Dobles: máxima Calibre 16 acero
inoxidable
Apertura de garganta: 3"
Angulo de cortina: 45°
Dados intercambiables (2)12", 10",
8", 6", 5", 4", 3"
Dimensiones de la máquina 2985 x 840 x 1240mm
Peso aproximado: 950 Kg
Fabricada con materiales de primera calidad
Herramienta ideal para hacer dobleces en
lámi...
