PARTE: 2CK-C12RSH

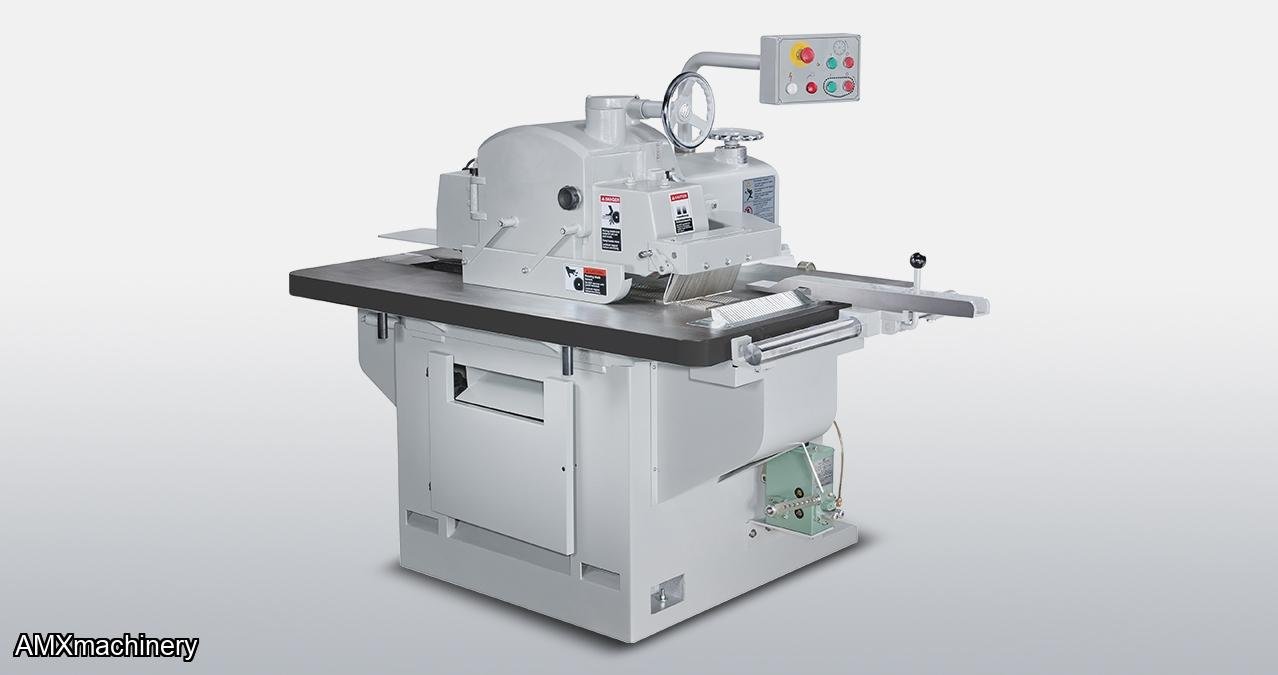

Is a single-blade ripsaw geared towards the shop looking to increase efficiency in their ripping operations but can not justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C12RSH can produce a glue joint finish ready for panel glue-up right out of the saw.
- Produces a guaranteed glue joint finish to 10′, which eliminates the need to joint the material after ripping
- Precision straight line feeding for parallel and accurate rip cuts

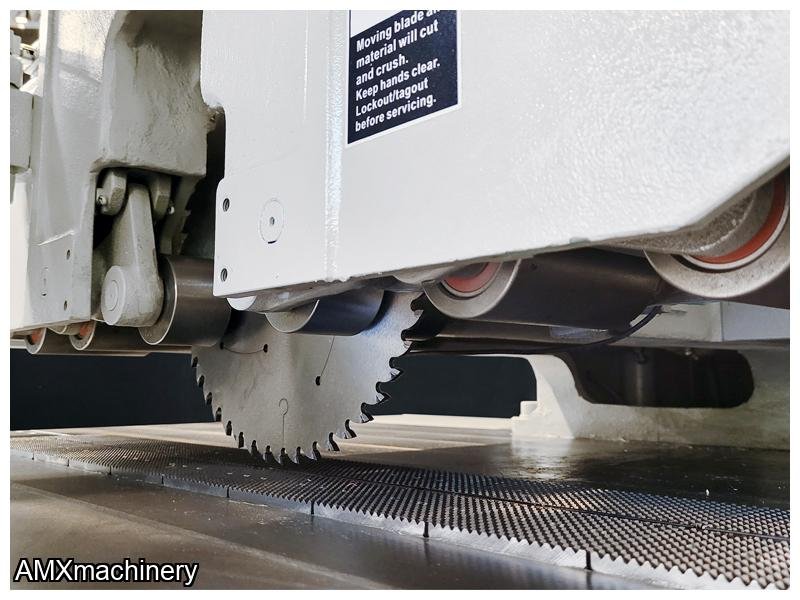

- Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut.
- Maintenance-free chain track with the use of a reliable mechanical lubrication system.
KEY ADVANTAGES
- Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
- Rigid machine body consists of a thick welded steel frame.

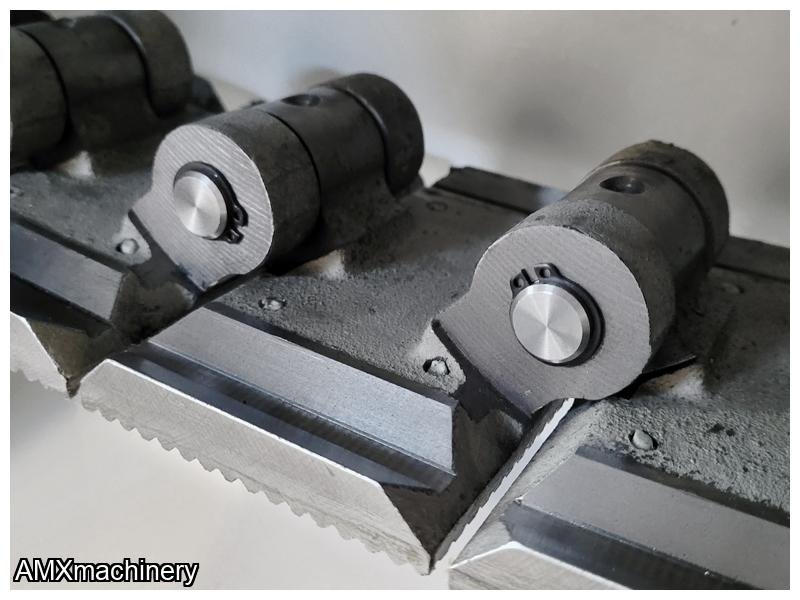

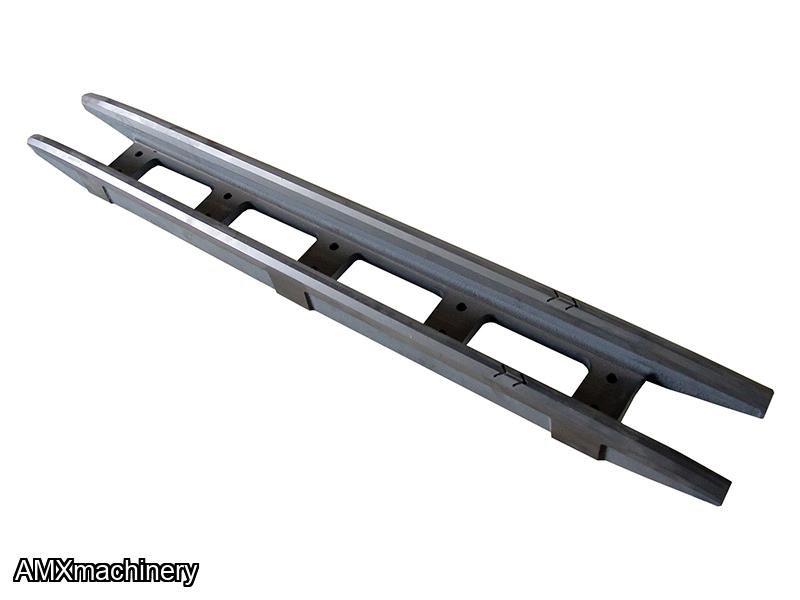

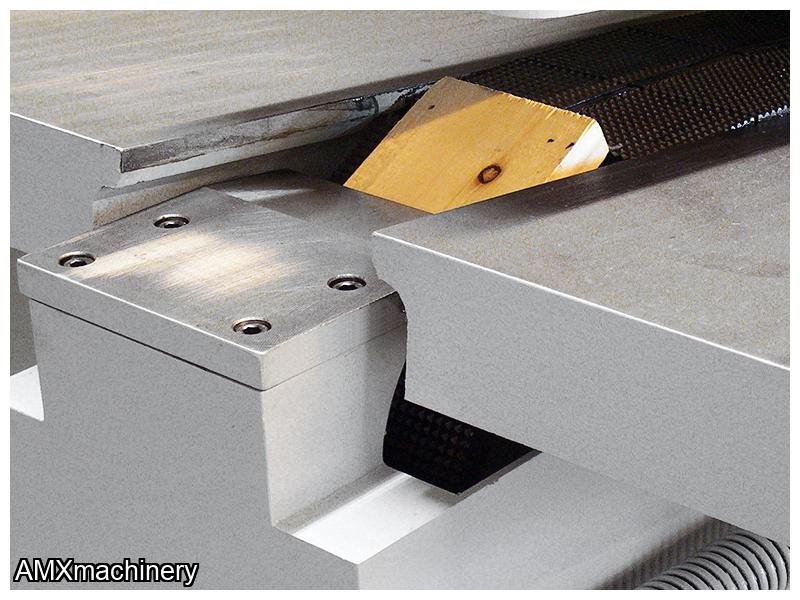

- FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life.

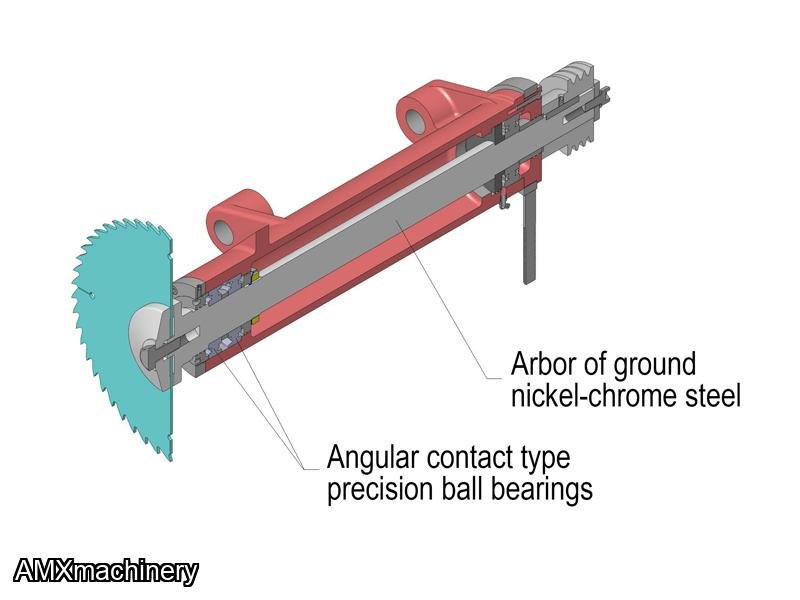

- Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
- Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.

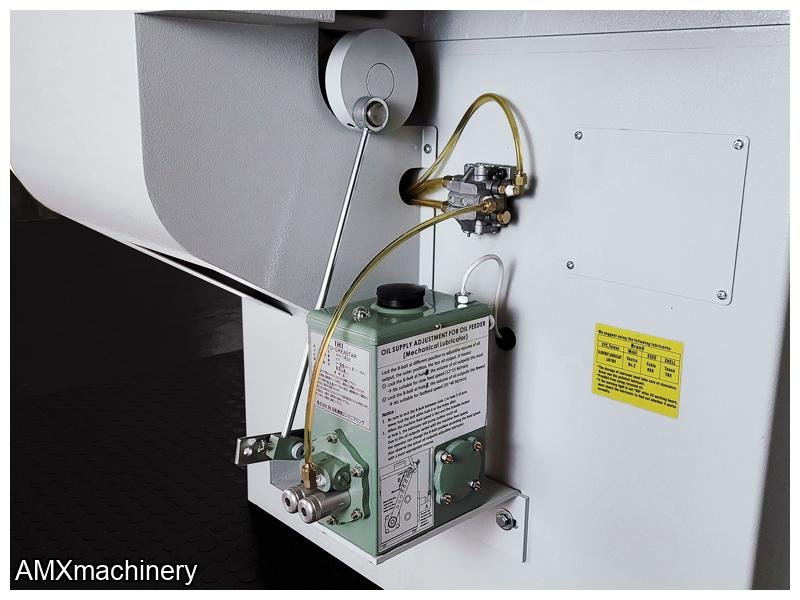

- Mechanical operation Chain Oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.

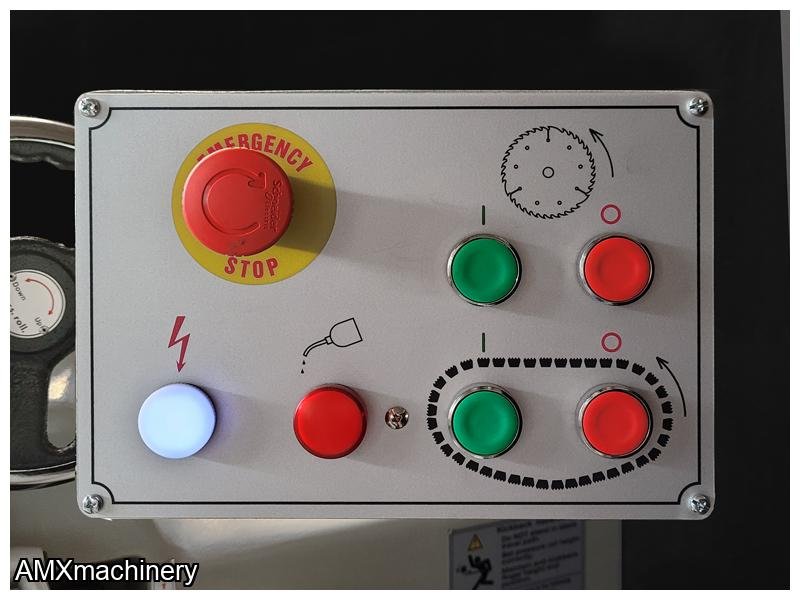

- When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.

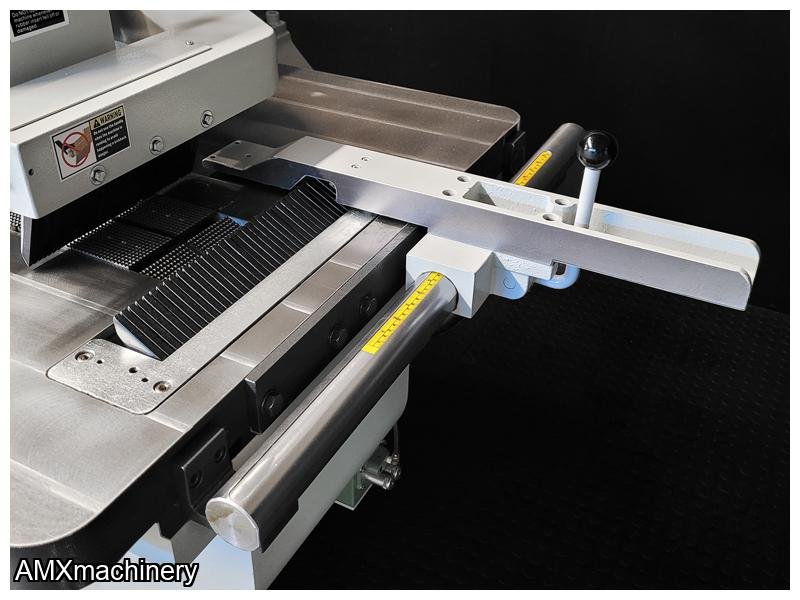

- Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.
- 3 sets of anti-kickback fingers. 2 top and 1 set in the table for added operator safety.

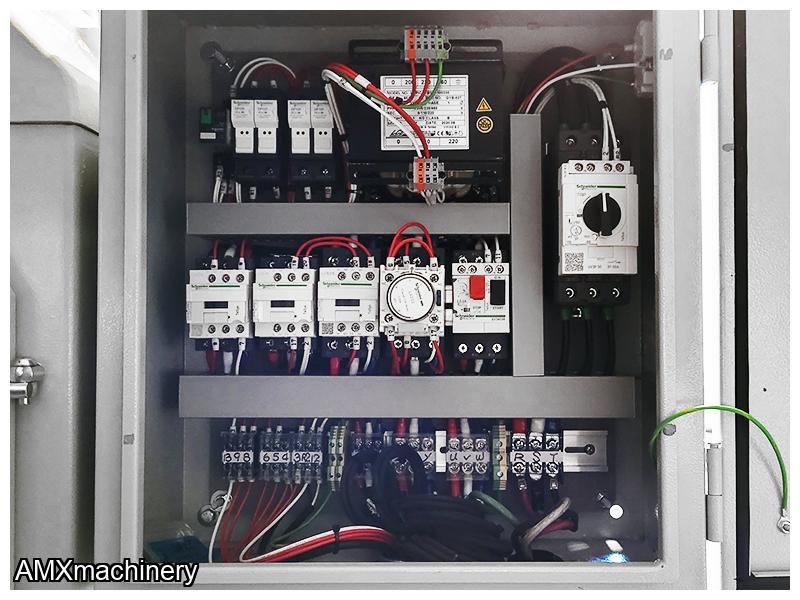

- Soft start – Star Delta starter reduces the amp draw on startup.
- Optional laser light to project the cutting line to achieve maximum material yield.
|
Saw arbor diameter |
1″ |
|
Saw blade diameter |
10 – 12″ |
|
Saw arbor speed |
4500 rpm |
|
Feed Speeds – variable |
50 to 120 FPM |
|
Maximum workpiece thickness |
3.34″ (12″ blade) |
|
Minimum workpiece length |
8″ |
|
Glue line guarantee |
10’ (+/- 0.0098” or 0.25mm) |
|
Distance between saw and column |
18″ |
|
Arbor motor |
15 HP |
|
Feed motor |
1 HP |
|
Electrical |
46 amps (230V); 23 amps (460V) |
|
Table size |
39″ x 57″ |
|
Table height |
31-7/8″ |
|
Dust port size |
4″ |
|
Net weight |
2,090 lbs |
|
Machine dimensions |
68” x 46” x 62” |
