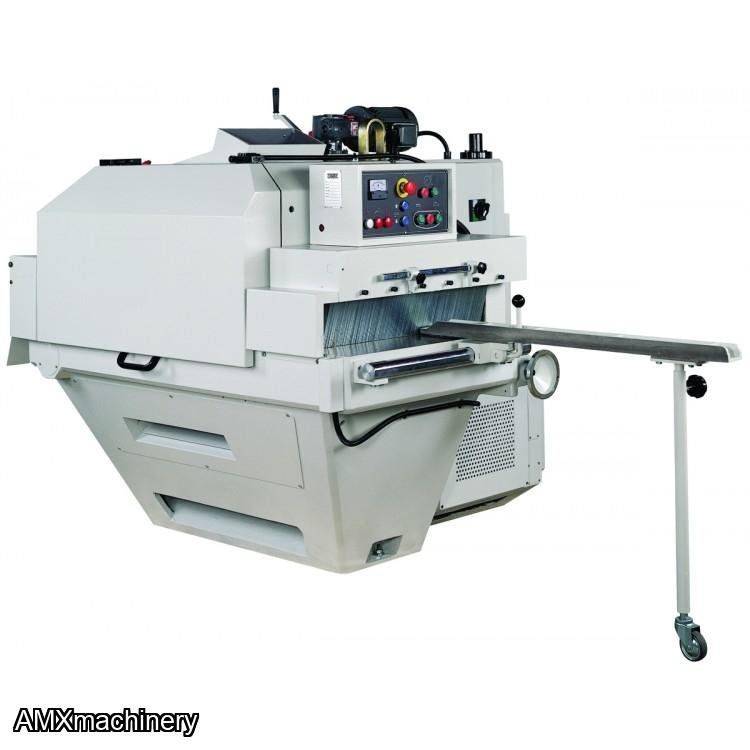

PARTE: 2CK-MRS12
FEATURES
- The Frame is Cast Iron, all the main parts are enclosed, ensuring protection and perfect stability
- Straight line caterpillar feeding with heavy guided chain with rubber inserts. Chain blocks are special cast iron with heat treated & precision ground pins
- Nickel chrome steel Saw Arbor with 70 mm OD – dble. keyed quick removal sleeve
- 3 sets of Anti-Kickback Fingers 2 top, 1 bottom
- Powered Rise & Fall to the pressure rollers
- New style round Fence Bar support with quick shift long fence
- Automatic Centralized lubrication system
- Automatic Star-Delta Starter (slow speed start) and low voltage controls
- C.E style European guard & safety features
- Long fence for control of long material
- Automatic star-delta starter (slow soft-low amperage start) and low voltage controls
- Electrics to 230/460 or575 volts 3 phase 60 cycles – as required to UL/CSA Standards
- With 3 rubber coated hold down rollers at outfeed end of machine
- Overload protection device – Feed speed will slow down automatically if saw motor becomes overloaded
|
Maximum working thickness |
3 3/8” (85mm) with standard pressure shoe *2 ¾” (70mm) with short stock attachment: |
|
Minimum Length |
12” with short stock attachment |
|
Saw Sleeve Usable Length |
|
|
(between outside saws) |
12″ (305 mm) |
|
Sawblade Dia. |
200 to 305mm (8” to 12”) |
|
Saw arbor Sleeve OD (Diameter) |
70 mm |
|
Saw arbor diameter |
50 mm |
|
Saw arbor vertical adjustment |
3.6” (90 mm) |
|
Saw Motor HP |
60 HP 460 volt |
|
Powered Pressure Rollers(Rise/Fall) |
½ HP motor |
|
Saw Arbor Speed |
3800 RPM |
|
Feed Speeds |
25 – 100 FPM |
|
Feed Motor HP |
3 or 5 HP |
|
Voltage |
Machine
can be ordered 230,460, |
|
Table Size |
30” x 60″ |
|
Table Height from floor |
33.5″ |
|
Net Weight |
4510 lbs. |
|
Machine Dimensions |
82.68” 59” x 56 ½” |
